T1000F

THIRA Robotics

Industrial-Robot

South KoreaReleased

★Not rated yet

Compare

Sources:

thirarobotics.com

Industries:

Electronics Construction Healthcare Warehouse & Logistics Manufacturing

Uses:

Construction Intralogistics Material-Handling TransportFactory and warehouse material transport

Price:

Not announced

Model:

THIRA Robotics T1000F autonomous mobile robot

DESCRIPTION

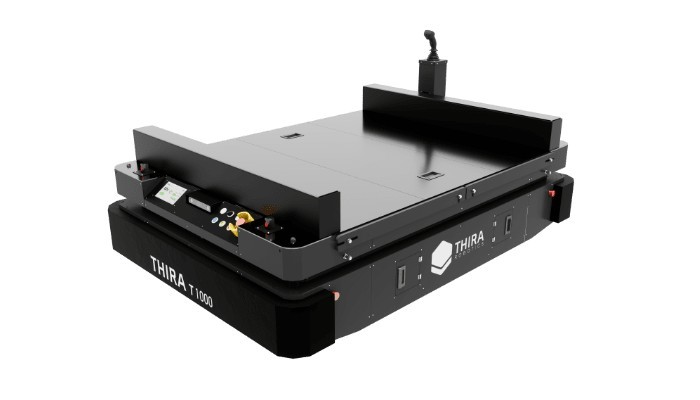

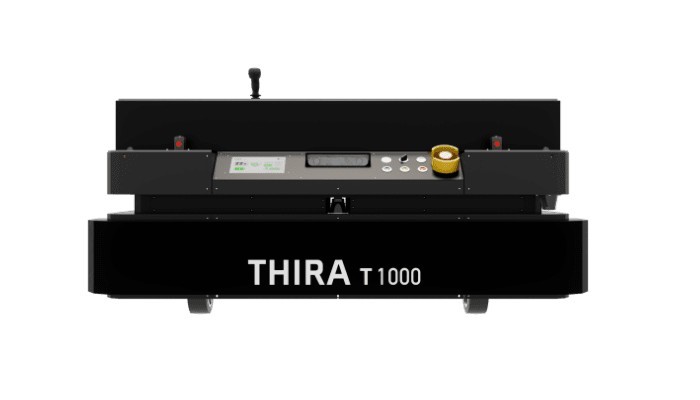

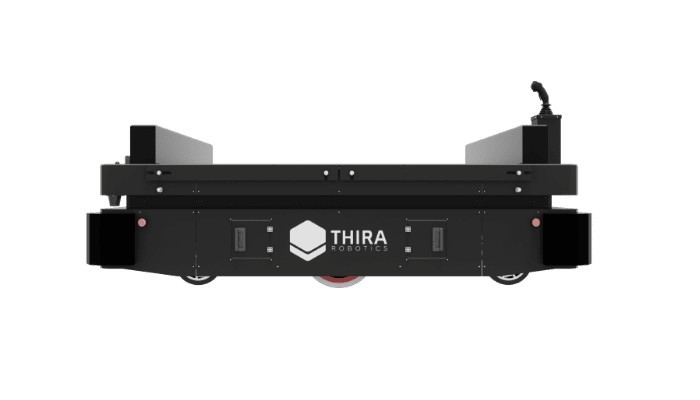

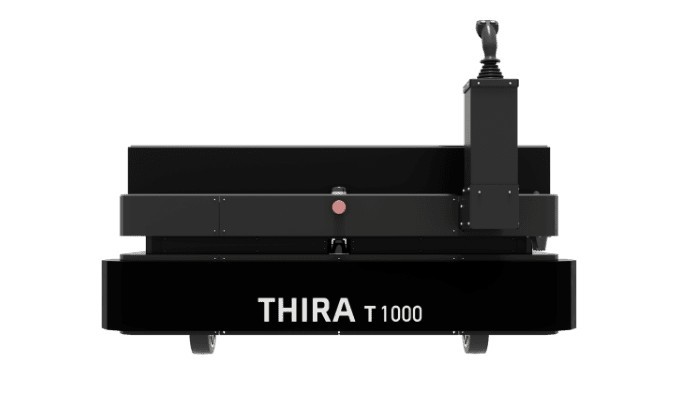

T1000F is an Industrial-Robot from THIRA Robotics. It is built for Construction, Intralogistics, Material-Handling. Key figures: 580 kg, 480 min runtime, 1000 kg payload.

The T1000F is THIRA Robotics' rugged version of its 1-tonne AMR, designed for rough construction sites and rated for indoor and outdoor use, with a taller 650 mm chassis and remote-control or joystick manual driving. It measures 1,900 x 1,300 mm with a height of 650 mm (985 mm with controller), weighs 580 kg and drives at up to 0.9 m/s. Like THIRA's other AMRs it is built for imperfect sites, driving on rough floors and through water and oil spills, and its safety system combines two SICK nanoScan3 safety laser scanners giving 360-degree protection and bumpers, plus a ZED2 camera for following a worker. A 1.89 kWh (40 Ah at 48 V) lithium-ion battery gives about 8 hours of operation and charges from 10 to 90% in about 2 hours; the robot is rated IP21 for use indoors and outdoors at 5°C to 40°C, communicates over Wi-Fi with REST, ROS 1, ROS 2, MQTT interfaces and is managed through the THIRA FMS fleet system.

FEATURES

Payload 1,000 Kg
2,205 lbs
Dimensions 1,900 mm (2,000 mm with bumper) 74.8 in (78.7 in with bumper) x 1,300 mm (1,400 mm with bumper) 51.2 in (55.1 in with bumper) x 650 mm ( 985mm with Controller) 25.6 in (38.8 in with Controller)
Weight 580Kg
1,278 lbs
Speed 0.6 m/s
1.3 mph (Recommand) 0.9 m/s
2.0 mph (Max.)
Battery 1.89 kWh (40 Ah at 48 V)
8 h operation
charging 2 hours, 10% to 90% (Manual)
Floor conditions: Capability to drive on rough, water, oil spill, offset
Safety: Triple safety system. (LiDAR, Depth Camera, Bumper)
Sensors: 2x SICK nanoScan3 safety laser scanner (360 deg)
ZED2 camera (human following)
bumper
Environment: For indoor and outdoor use
+5°C to 40°C
IP21
Communication: REST, ROS 1, ROS 2, MQTT
Wi-Fi
THIRA FMS fleet management
Compliance: -
Elevator boarding: KS B 7317 (Korean Standard)
Human following: -

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	580 kg
Dimensions	L 1.9 m × W 1.3 m × H 650 mm
Payload	1000 kg
Mobility
Movement Type	Wheeled
Speed	3.24 km/h
Environment	For indoor and outdoor use; construction sites; +5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x SICK nanoScan3 safety laser scanner (360 deg), ZED2 camera (human following), bumper
Connectivity	Wi-Fi; REST, ROS 1, ROS 2, MQTT; THIRA FMS

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	580 kg
Dimensions	L 1.9 m × W 1.3 m × H 650 mm
Payload	1000 kg
Mobility
Movement Type	Wheeled
Speed	3.24 km/h
Environment	For indoor and outdoor use; construction sites; +5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x SICK nanoScan3 safety laser scanner (360 deg), ZED2 camera (human following), bumper
Connectivity	Wi-Fi; REST, ROS 1, ROS 2, MQTT; THIRA FMS

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the T1000F?

Who makes the T1000F?

The T1000F is made by THIRA Robotics, a robotics company based in South Korea.

How much does the T1000F cost?

THIRA Robotics has not publicly announced pricing for the T1000F. You can enquire through RobotAIGeek for current pricing.

What is the T1000F used for?

The T1000F is designed for construction, intralogistics, material-handling, and transport. It is used in electronics, construction, healthcare, and warehouse & logistics settings.
