DESCRIPTION
VLD15 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 5500 kg, 1500 kg payload.

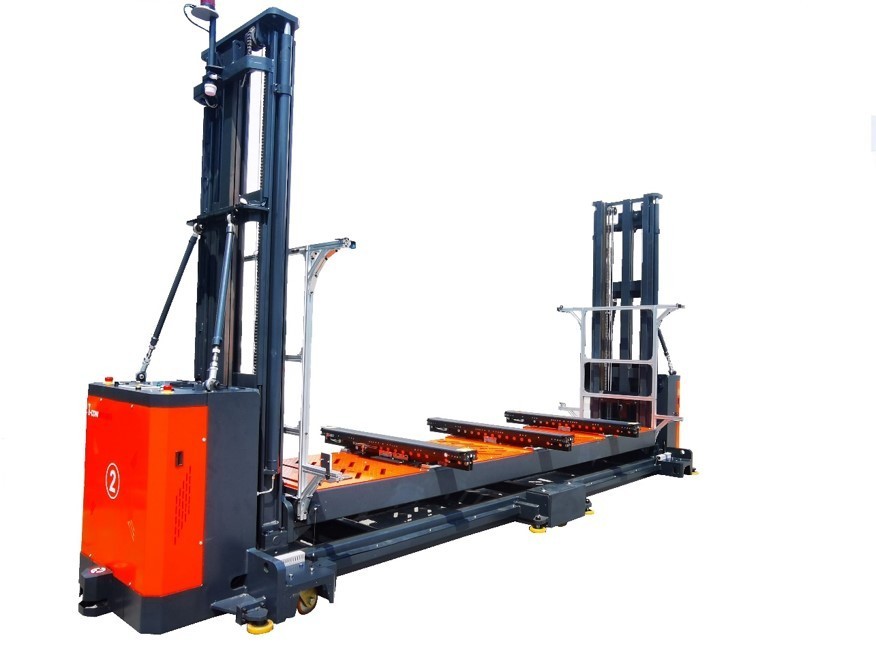

The VLD15 is a double-mast stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,500 kg at a 960 mm load centre, lifts to 5300 mm, weighs 5,500 kg and measures 6,827 x 1,700 x 3,563 mm. Its forks measure 64 x 170 x 1600 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 3457 mm, runs on a 48 V, 315 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 1,500 kg at 960 mm load centre
- Lift height 5300 mm

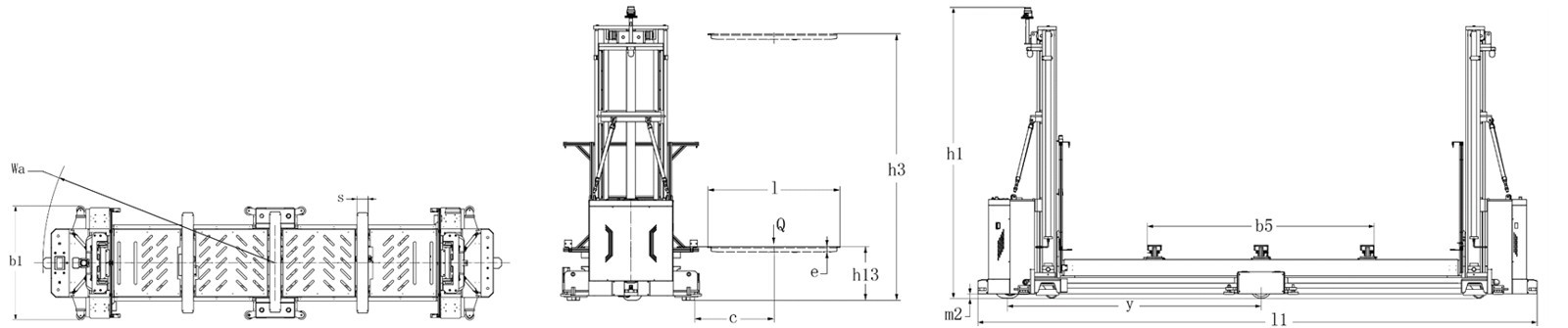

- Overall dimensions 6827 x 1700 x 3563 mm (L x W x H)
- Service weight 5,500 kg
- Forks 64/170/1600 mm (e/s/l)
- Turning radius 3457 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 315 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 5500 kg |
|---|---|
| Dimensions | L 6.83 m × W 1.7 m × H 3.56 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 5500 kg |
|---|---|
| Dimensions | L 6.83 m × W 1.7 m × H 3.56 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLD15?
The VLD15 is a double-mast stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,500 kg at a 960 mm load centre, lifts to 5300 mm, weighs 5,500 kg and measures 6,827 x 1,700 x 3,563 mm.
Who makes the VLD15?
The VLD15 is made by i-Cow, a robotics company based in China.
How much does the VLD15 cost?
i-Cow has not publicly announced pricing for the VLD15. You can enquire through RobotAIGeek for current pricing.
What is the VLD15 used for?
The VLD15 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLD15?
The VLD15 has a payload capacity of 1,500 kg.
How much does the VLD15 weigh?
The VLD15 weighs 5,500 kg.
How fast is the VLD15?
The VLD15 can move at speeds of up to 5.4 km/h.
