DESCRIPTION
FC Lifter is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 1440 min runtime, 1000 kg payload.

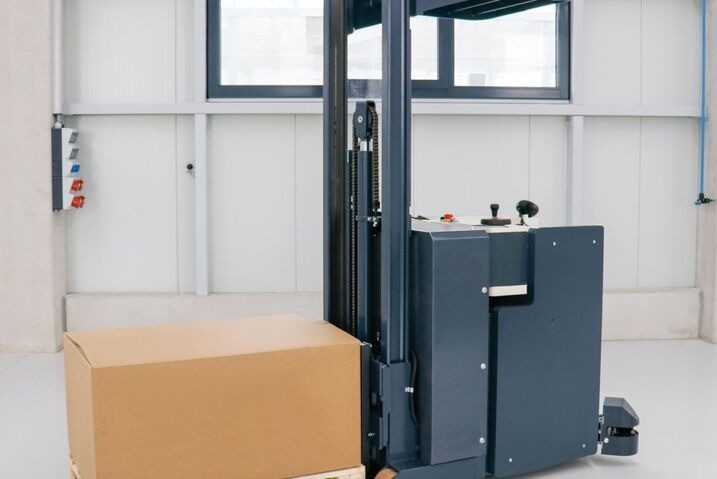

FC Lifter is IBG's dual-mode forklift AGV, designed to replace conventional forklift trucks: it works autonomously or can be driven manually. It lifts Euro pallets, lattice boxes and IBCs up to 3,000 mm, taking loads lengthwise or crosswise, and is rated for 1,000 kg.\nSensors and safety scanners let it navigate safely among staff. It travels at up to 1.2 m/s autonomously and up to 2.22 m/s in manual mode, and its lithium-ion battery gives 24 hours of operation with two-hour charging and opportunity charging. The vehicle measures 2,650 x 1,200 x 2,900 mm.
FEATURES
- Dual mode: autonomous or manual operation
- Lift height up to 3,000 mm
- loads lengthwise or crosswise
- Euro pallets, lattice boxes, IBCs
- rated payload 1,000 kg
- 2,650 x 1,200 x 2,900 mm
- Max. 1.2 m/s autonomous, up to 2.22 m/s manual
- 24 h operating time
- 2 h charging
- opportunity charging
- lithium-ion
- Safety scanners
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 2.65 m × W 1.2 m × H 2.9 m |
|---|---|
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Charging Type | Opportunity charging possible |
| Sensing & Compute | |
| Sensors | safety laser scanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 2.65 m × W 1.2 m × H 2.9 m |
|---|---|
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Charging Type | Opportunity charging possible |
| Sensing & Compute | |
| Sensors | safety laser scanner |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC Lifter?
FC Lifter is IBG's dual-mode forklift AGV, designed to replace conventional forklift trucks: it works autonomously or can be driven manually.
Who makes the FC Lifter?
The FC Lifter is made by IBG Automation, a robotics company based in Germany.
How much does the FC Lifter cost?
IBG Automation has not publicly announced pricing for the FC Lifter. You can enquire through RobotAIGeek for current pricing.
What is the FC Lifter used for?
The FC Lifter is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FC Lifter?
The FC Lifter has a payload capacity of 1,000 kg.
How fast is the FC Lifter?
The FC Lifter can move at speeds of up to 4.32 km/h.
What is the battery life of the FC Lifter?
The FC Lifter runs for about 1,440 minutes on a charge.
