DESCRIPTION
RTB12/15 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 220 kg, 1200 kg payload.

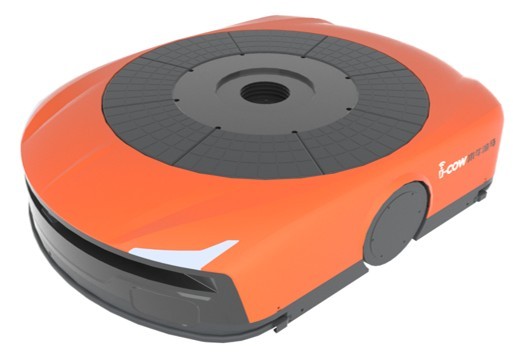

The RTB12/15 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station. It is rated for 1,200 kg and lifts by 60 mm, weighs 220 kg and measures 1,160 x 860 x 245 mm. It travels at up to 1.8 m/s with ±10 mm positioning accuracy and a minimum turning diameter of 1160 mm, runs on a 48 V, 54 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the RTB12; the same page lists RTB15 variants with different capacities.
FEATURES
- Rated load 1,200 kg
- Lift height 60 mm

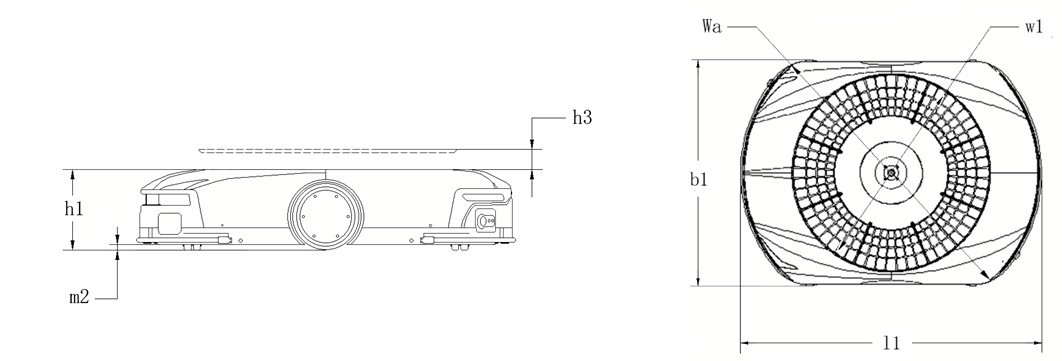

- Overall dimensions 1160 x 860 x 245 mm (L x W x H)
- Service weight 220 kg
- Turning diameter 1160 mm
- Travel speed 0-1.8 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 54 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: RTB12, RTB15
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 220 kg |
|---|---|
| Dimensions | L 1.16 m × W 860 mm × H 245 mm |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.48 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 220 kg |
|---|---|
| Dimensions | L 1.16 m × W 860 mm × H 245 mm |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.48 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the RTB12/15?
The RTB12/15 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station. It is rated for 1,200 kg and lifts by 60 mm, weighs 220 kg and measures 1,160 x 860 x 245 mm.
Who makes the RTB12/15?
The RTB12/15 is made by i-Cow, a robotics company based in China.
How much does the RTB12/15 cost?
i-Cow has not publicly announced pricing for the RTB12/15. You can enquire through RobotAIGeek for current pricing.
What is the RTB12/15 used for?
The RTB12/15 is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the RTB12/15?
The RTB12/15 has a payload capacity of 1,200 kg.
How much does the RTB12/15 weigh?
The RTB12/15 weighs 220 kg.
How fast is the RTB12/15?
The RTB12/15 can move at speeds of up to 6.48 km/h.
