DESCRIPTION
RTB06 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 132 kg, 600 kg payload.

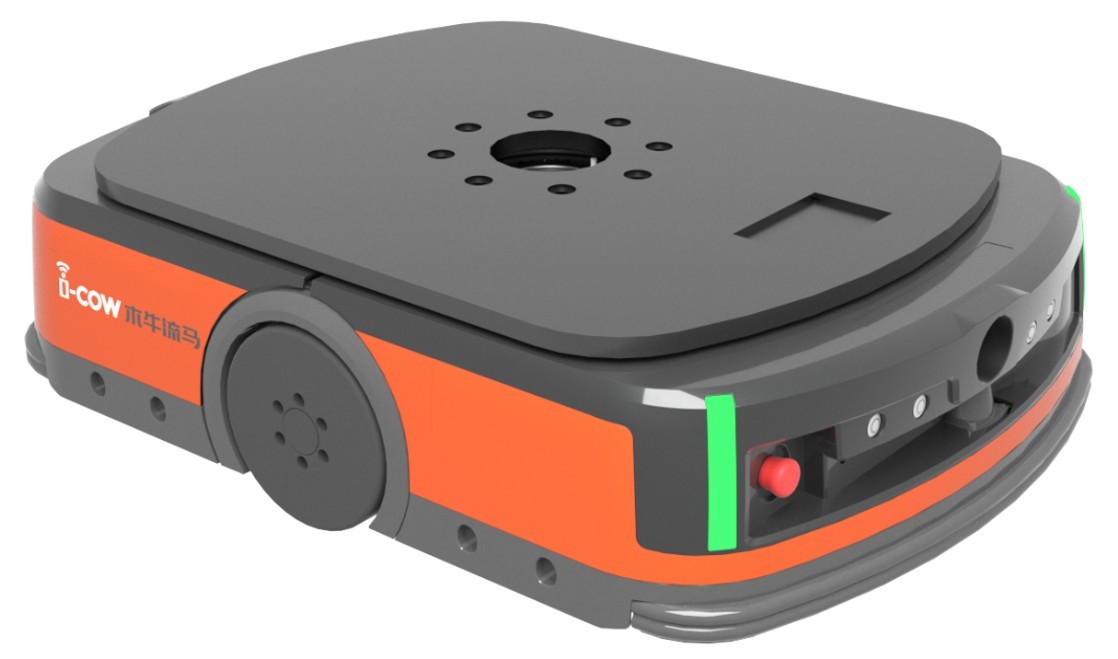

The RTB06 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station. It is rated for 600 kg and raises its 750 x 600 mm platform by 60 mm, weighs 132 kg and measures 940 x 650 x 250 mm. It travels at up to 1.2 m/s with ±10 mm positioning accuracy and a minimum turning diameter of 995 mm, runs on a 48 V, 27 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 600 kg
- Lift height 60 mm

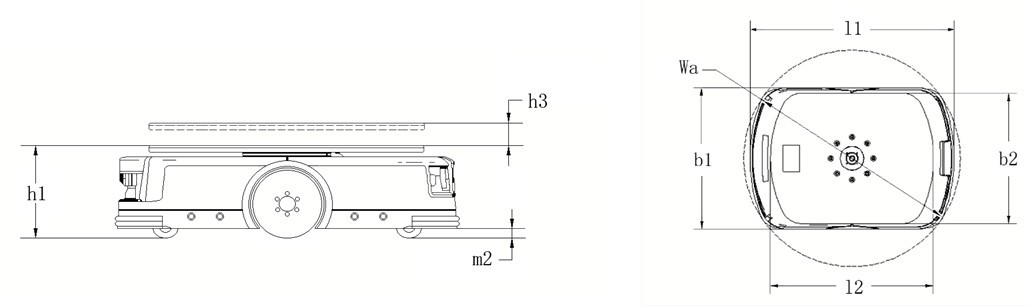

- Overall dimensions 940 x 650 x 250 mm (L x W x H)
- Service weight 132 kg
- Lifting platform 750/600 mm
- Turning diameter 995 mm
- Travel speed 0-1.2 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 27 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 132 kg |
|---|---|
| Dimensions | L 940 mm × W 650 mm × H 250 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 132 kg |
|---|---|
| Dimensions | L 940 mm × W 650 mm × H 250 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the RTB06?
The RTB06 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station.
Who makes the RTB06?
The RTB06 is made by i-Cow, a robotics company based in China.
How much does the RTB06 cost?
i-Cow has not publicly announced pricing for the RTB06. You can enquire through RobotAIGeek for current pricing.
What is the RTB06 used for?
The RTB06 is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the RTB06?
The RTB06 has a payload capacity of 600 kg.
How much does the RTB06 weigh?
The RTB06 weighs 132 kg.
How fast is the RTB06?
The RTB06 can move at speeds of up to 4.32 km/h.
