DESCRIPTION
L2 & L4 Low is an Industrial-Robot from Muratec. It is built for Intralogistics, Material-Handling, Transport. Key figures: 771 kg payload.

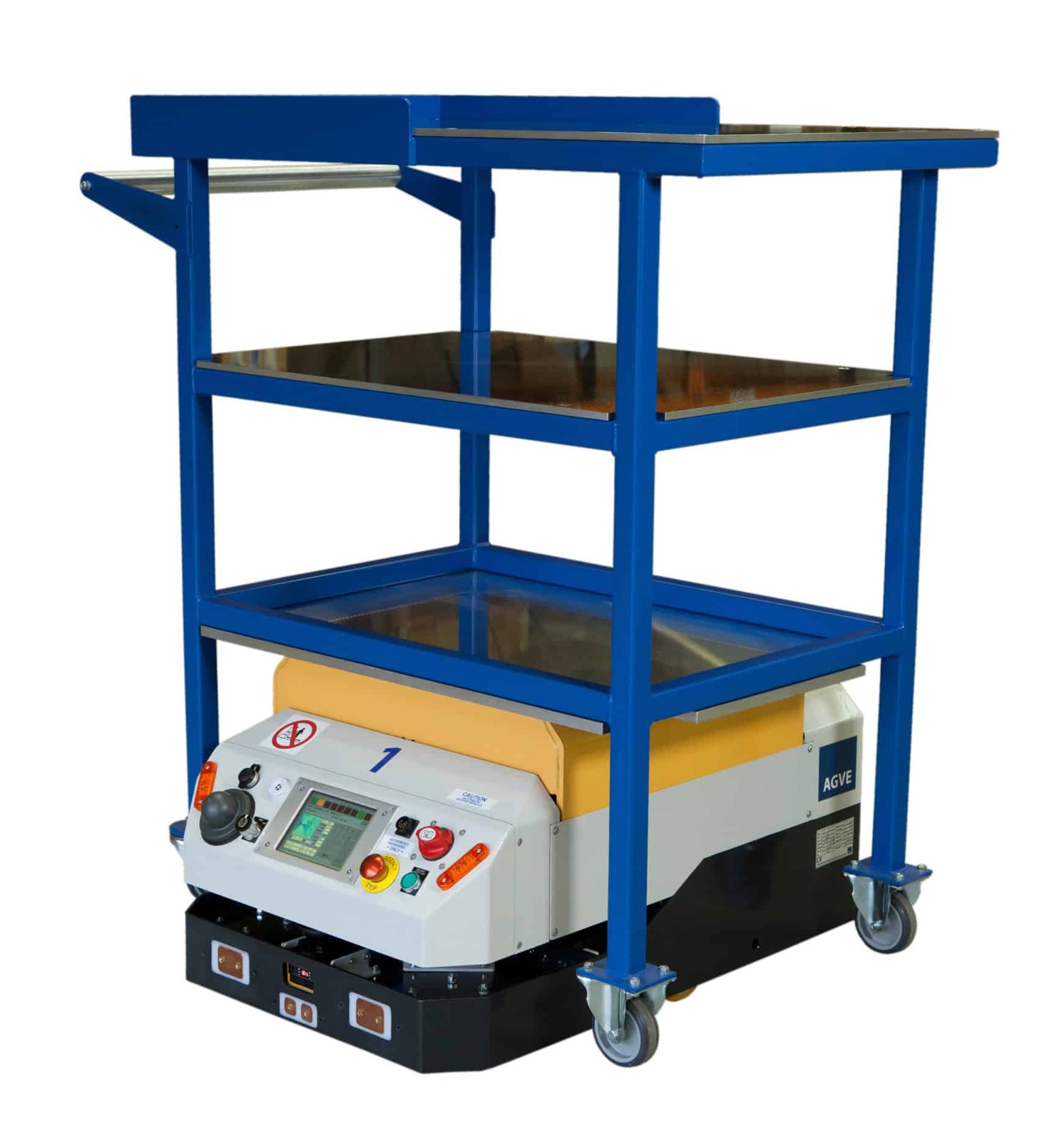

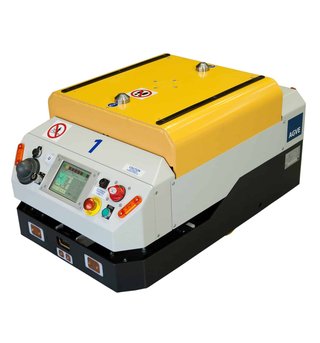

The Muratec L2 and L4 Low are low-profile compact shuttle AGVs from the L-Series for moving heavy carts, towing and pallet transfers along busy aisles. They slide under a cart, raise it on a powered lift platform to 'piggyback' it off the floor, and carry it safely alongside people at up to 294 ft/min (about 90 m/min). Configured for lifting or towing, they handle loads of up to 1,700 lb (about 770 kg). They also interface with plant equipment, positioning loads accurately whatever the pallet or rack size. Navigation can be by contour (natural features), inductive wire or magnetic guidance.
FEATURES
- Low-profile compact shuttle AGV for carts, towing and pallet transfers
- Powered lift platform 'piggybacks' carts off the floor
- Lifting or towing up to 1,700 lb (about 770 kg)
- Travel up to 294 ft/min (about 90 m/min) in heavy-traffic aisles
- Contour, inductive-wire or magnetic navigation
- Accurate load positioning at plant equipment regardless of pallet or rack size
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 771 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor warehouses, distribution centres and factories |
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 771 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor warehouses, distribution centres and factories |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the L2 & L4 Low?
The Muratec L2 and L4 Low are low-profile compact shuttle AGVs from the L-Series for moving heavy carts, towing and pallet transfers along busy aisles.
Who makes the L2 & L4 Low?
The L2 & L4 Low is made by Muratec, a robotics company based in Japan.
How much does the L2 & L4 Low cost?
Muratec has not publicly announced pricing for the L2 & L4 Low. You can enquire through RobotAIGeek for current pricing.
What is the L2 & L4 Low used for?
The L2 & L4 Low is designed for intralogistics, material-handling, transport, and cart transfer, towing and pallet transfer in plants and warehouses. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the L2 & L4 Low?
The L2 & L4 Low has a payload capacity of 771 kg.
How fast is the L2 & L4 Low?
The L2 & L4 Low can move at speeds of up to 5.4 km/h.
