DESCRIPTION
Shark 600 is an Industrial-Robot from OKAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 600 kg payload.

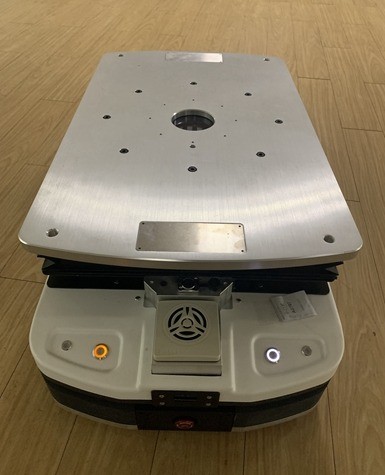

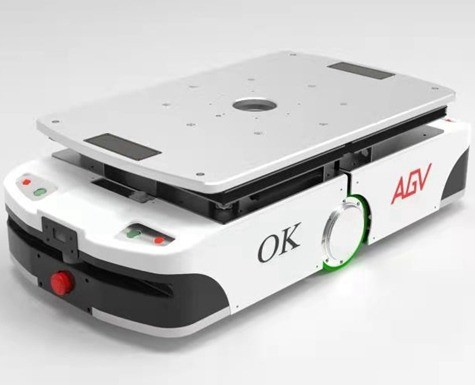

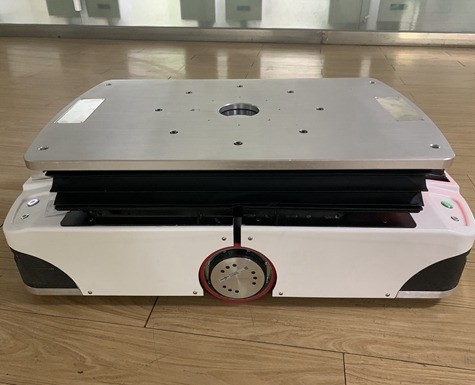

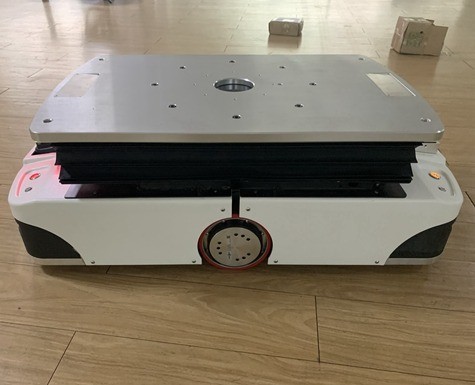

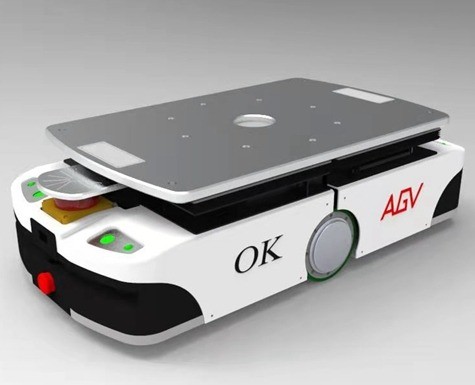

The Shark 600 is OKAGV's Shark-series differential-drive autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-60 mm lift) and carries up to 600 kg through factories and warehouses. It measures 1000 x 500 x 290 mm, travels at up to 70 m/min, uses differential drive, and navigates by magnetic tape, magnetic nail, QR code, laser or SLAM, with +/-10 mm guidance and stopping accuracy. It supports the widest choice of guidance, from magnetic tape and nails to QR codes, laser and SLAM, and stands 290 mm tall (250 mm in the QR-code version).\nLike the rest of OKAGV's range it runs 24 hours on a lithium battery (DC 48 V lithium) rated for at least 2,000 cycles with automatic charging, climbs gradients up to 4 degrees, and is protected by a laser obstacle sensor with an adjustable 0-180 degree, 0-3 m field, front and rear bumpers and emergency stops; it is designed for indoor use at 0-40 C and a 10-year lifespan.
FEATURES
- Payload 600 kg
- lifting stroke 0-60 mm
- Size 1000 x 500 x 290 mm
- Max speed 70 m/min
- Drive: differential drive
- Navigation: magnetic tape, magnetic nail, QR code, laser or SLAM
- Guidance and stop accuracy +/-10 mm
- Battery: DC 48 V lithium, >= 2,000 cycles
- automatic charging
- Gradeability <= 4 deg
- 24 h operation
- Safety: laser obstacle sensor (0-180 deg, 0-3 m), front/rear bumpers, e-stops
- Indoor 0-40 C, 40-80% RH
- designed lifespan 10 years
- Height 290 mm with laser navigation, 250 mm with QR-code navigation
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1 m × W 500 mm × H 290 mm |
|---|---|
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.2 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1 m × W 500 mm × H 290 mm |
|---|---|
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.2 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Shark 600?
The Shark 600 is OKAGV's Shark-series differential-drive autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-60 mm lift) and carries up to 600 kg through factories and warehouses.
Who makes the Shark 600?
The Shark 600 is made by OKAGV, a robotics company based in China.
How much does the Shark 600 cost?
OKAGV has not publicly announced pricing for the Shark 600. You can enquire through RobotAIGeek for current pricing.
What is the Shark 600 used for?
The Shark 600 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Shark 600?
The Shark 600 has a payload capacity of 600 kg.
How fast is the Shark 600?
The Shark 600 can move at speeds of up to 4.2 km/h.
