DESCRIPTION
M060D is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Intralogistics, Loading, Material-Handling. Key figures: 140 kg, 480 min runtime, 600 kg payload.

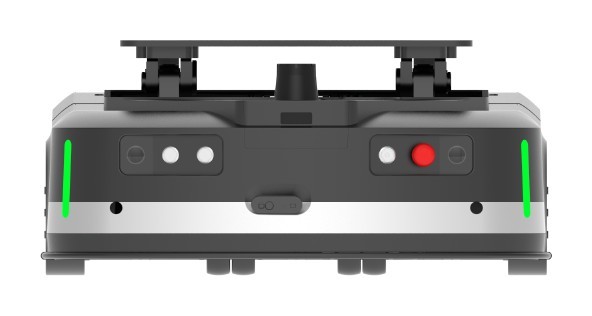

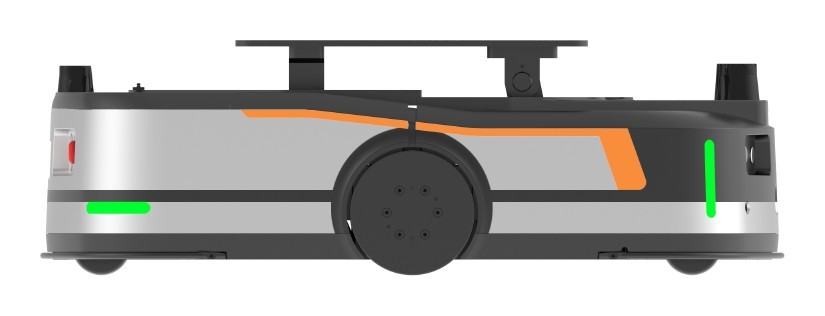

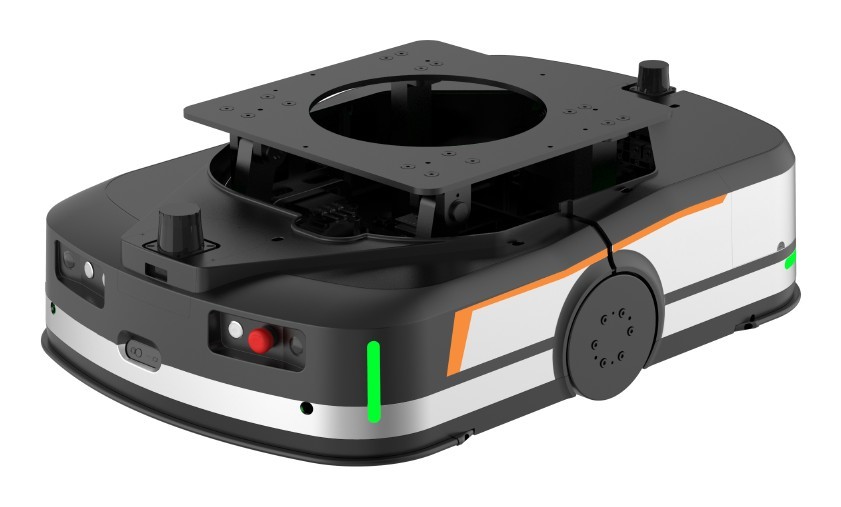

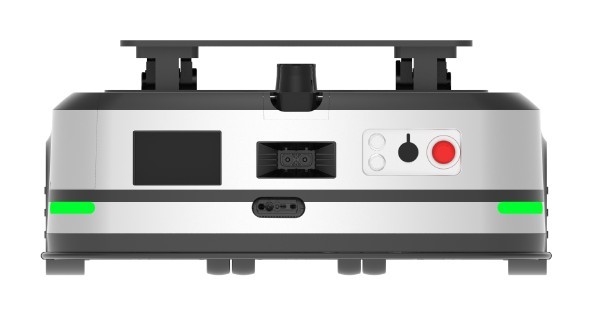

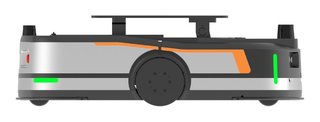

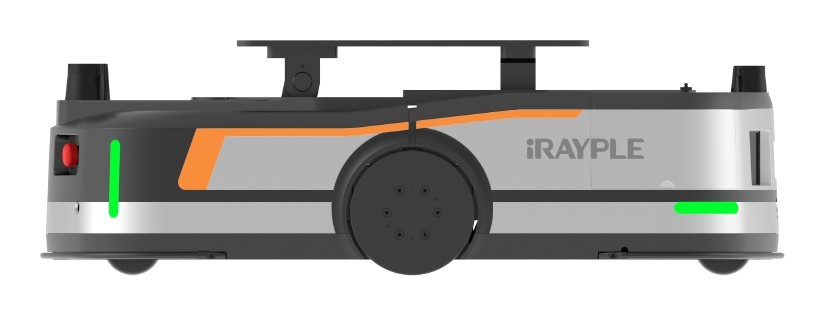

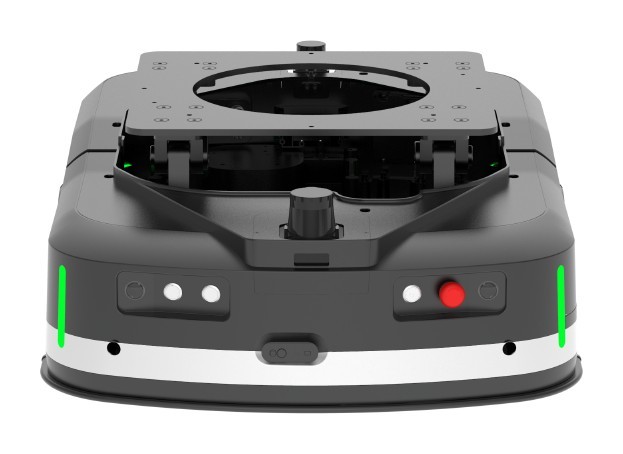

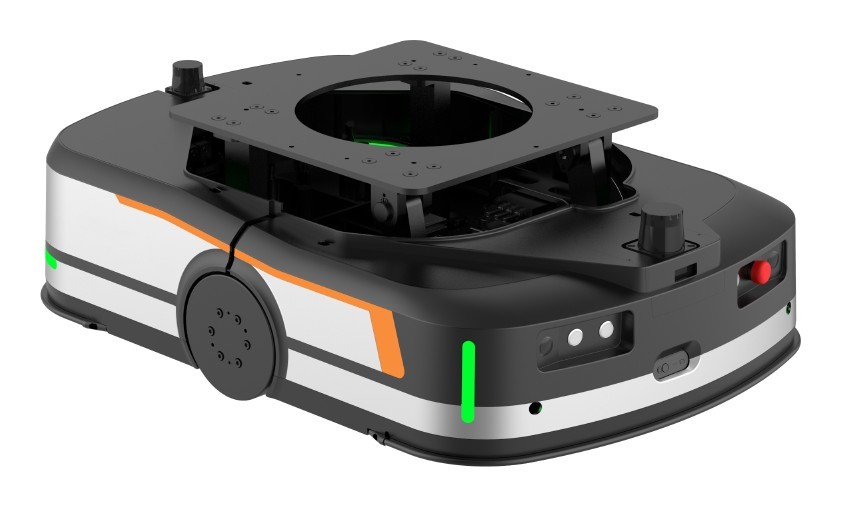

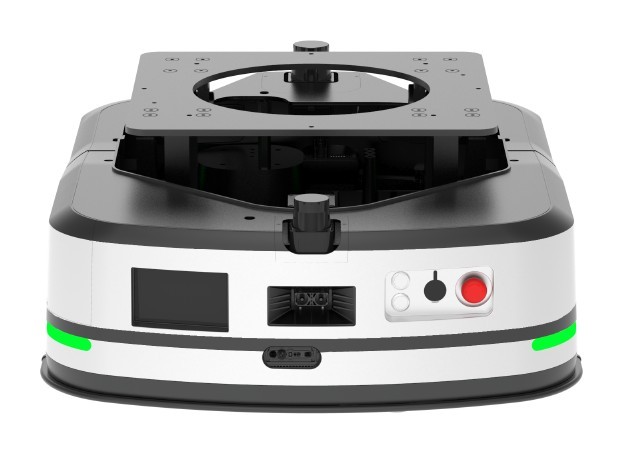

M060D is iRAYPLE's 600 kg transfer AMR: the C-series 950 x 650 x 300 mm chassis with a customisable material-handling top for transferring loads instead of lifting racks. It navigates by QR code/texture/laser SLAM, reaches 2.0 m/s empty, stops within ±10 mm and runs 8.0 h per charge (charging: manual/automatic, manually change battery). It talks to iRAYPLE's robot control and scheduling system over Wi-Fi.
FEATURES
- Rated load 600 kg
- machine weight 140 kg
- 950 mm×650 mm×300 mm
- Max. speed 2.0 m/s
- Navigation: QR code/texture/laser SLAM
- drive: Two-wheel speed difference
- Rotation Diameter: 1000 mm
- Material Handling Method: Customizable
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 5%
- Obstacle Crossing Height: 10 mm
- Obstacle Avoidance Method: Laser, TOF
- Charging Mode: Manual/automatic, manually change battery
- Communication Mode: Wi-Fi
- Operating time 8.0 h
- charging 1.5 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 140 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 300 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 140 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 300 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |
Images
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the M060D?
M060D is iRAYPLE's 600 kg transfer AMR: the C-series 950 x 650 x 300 mm chassis with a customisable material-handling top for transferring loads instead of lifting racks.
Who makes the M060D?
The M060D is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the M060D cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the M060D. You can enquire through RobotAIGeek for current pricing.
What is the M060D used for?
The M060D is designed for intralogistics, loading, material-handling, and unloading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the M060D?
The M060D has a payload capacity of 600 kg.
How much does the M060D weigh?
The M060D weighs 140 kg.
How fast is the M060D?
The M060D can move at speeds of up to 7.2 km/h.
What is the battery life of the M060D?
The M060D runs for about 480 minutes on a charge.
