DESCRIPTION
VLRQ10 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2600 kg, 1000 kg payload.

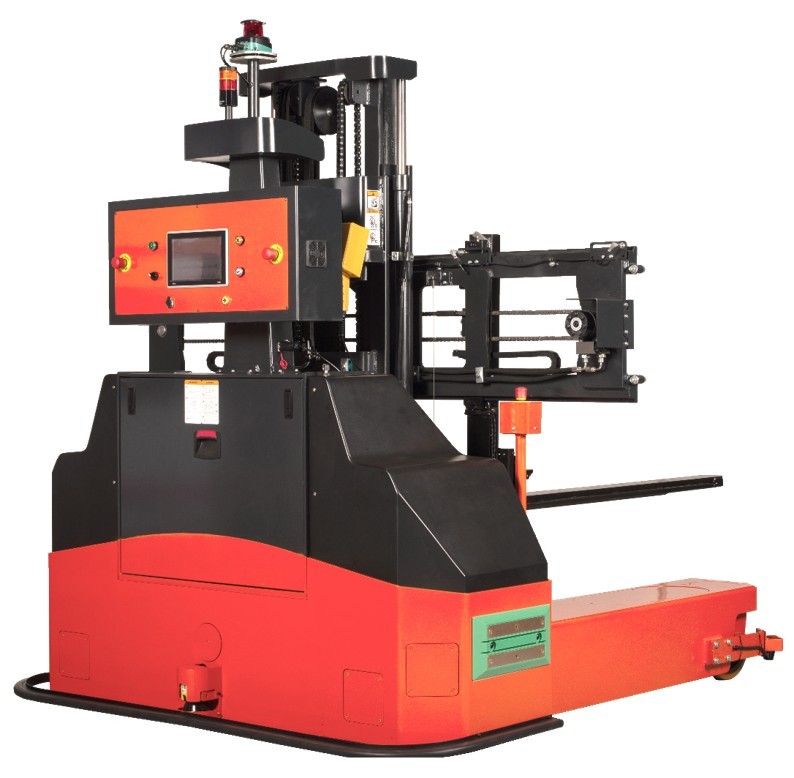

The VLRQ10 is a omnidirectional reach mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that extends its mast forward to place and retrieve pallets in high racking within narrower aisles. It is rated for 1,000 kg at a 800 mm load centre, lifts to 2000 mm, weighs 2,600 kg and measures 2,560 x 2,347 x 2,350 mm. Its forks measure 50 x 110 x 1550 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1714 mm, runs on a 24 V, 270 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 1,000 kg at 800 mm load centre
- Lift height 2000 mm

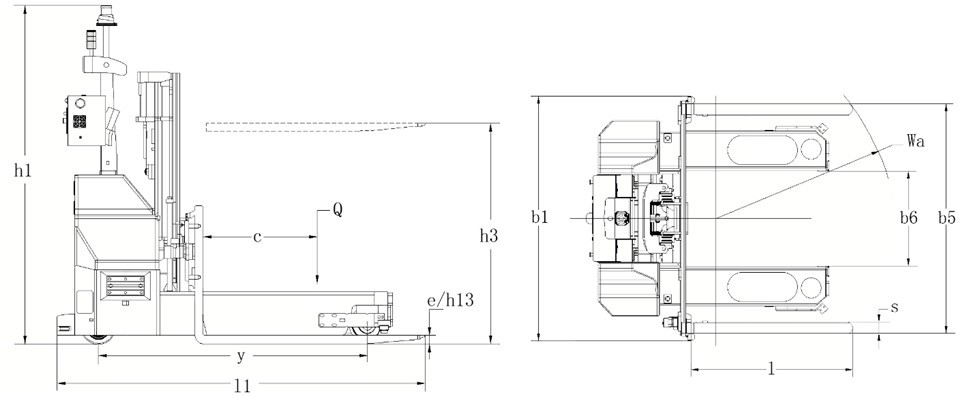

- Overall dimensions 2560 x 2347 x 2350 mm (L x W x H)
- Service weight 2,600 kg
- Forks 50/110/1550 mm (e/s/l)
- Turning radius 1714 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 270 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2600 kg |
|---|---|
| Dimensions | L 2.56 m × W 2.35 m × H 2.35 m |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2600 kg |
|---|---|
| Dimensions | L 2.56 m × W 2.35 m × H 2.35 m |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLRQ10?
The VLRQ10 is a omnidirectional reach mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that extends its mast forward to place and retrieve pallets in high racking within narrower aisles.
Who makes the VLRQ10?
The VLRQ10 is made by i-Cow, a robotics company based in China.
How much does the VLRQ10 cost?
i-Cow has not publicly announced pricing for the VLRQ10. You can enquire through RobotAIGeek for current pricing.
What is the VLRQ10 used for?
The VLRQ10 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLRQ10?
The VLRQ10 has a payload capacity of 1,000 kg.
How much does the VLRQ10 weigh?
The VLRQ10 weighs 2,600 kg.
How fast is the VLRQ10?
The VLRQ10 can move at speeds of up to 5.4 km/h.
