DESCRIPTION
SZGH-I10 is a Collaborative-Robot from SZGH Automation. It is built for Assembly, Machine-Tending, Material-Handling. Key figures: 38.5 kg, 10 kg payload, 1350 mm reach, 6 degrees of freedom.
The SZGH-I10 is a six-axis collaborative robot in SZGH's I-series from ShenZhen GuanHong Automation, built for heavier loads than the I3-I7 models. It carries 10 kg over a 1350 mm reach, weighs about 38.5 kg and draws around 500 W on average. All six joints rotate ±360°, it mounts on the floor, a ceiling or a wall, and SZGH says its collision detection stops the arm on contact so it can run without guardrails. SZGH lists it for 3C electronics, automotive, hardware and appliances, kitchen and sanitary ware, medical and health, research and education, catering, new retail, daily chemicals and logistics.
FEATURES
- Payload: 10 kg

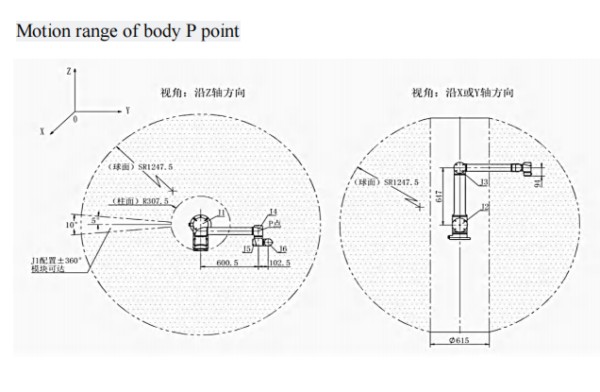

- Reach: 1350 mm

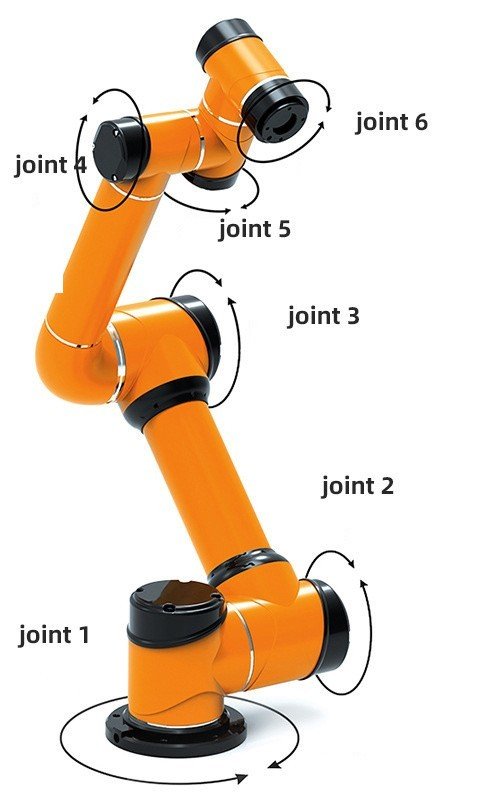

- 6 axes, each with ±360° motion range
- Max joint speed: 178°/s (axes 1, 2, 4), 223°/s (axis 3), 237°/s (axes 5, 6)
- Average power: 500 W
- Weight: about 38.5 kg
- Collision detection: stops on contact, no guardrails needed (SZGH)

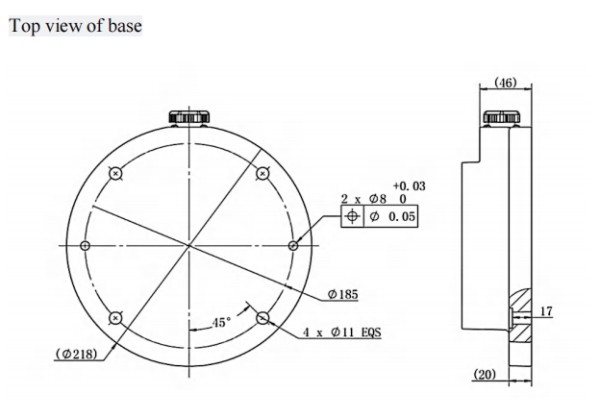

- Mounting: floor, ceiling or wall
- Ambient temperature: 0-50 °C
- Warranty: 2 years, with lifetime technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 38.5 kg |
|---|---|
| Payload | 10 kg |
| Reach | 1.35 m |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 38.5 kg |
|---|---|
| Payload | 10 kg |
| Reach | 1.35 m |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-I10?
The SZGH-I10 is a six-axis collaborative robot in SZGH's I-series from ShenZhen GuanHong Automation, built for heavier loads than the I3-I7 models. It carries 10 kg over a 1350 mm reach, weighs about 38.5 kg and draws around 500 W on average.
Who makes the SZGH-I10?
The SZGH-I10 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-I10 cost?
SZGH Automation has not publicly announced pricing for the SZGH-I10. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-I10 used for?
The SZGH-I10 is designed for assembly, machine-tending, material-handling, and pick-and-place. It is used in automotive, electronics, research, and education settings.
What is the payload capacity of the SZGH-I10?
The SZGH-I10 has a payload capacity of 10 kg and a reach of 1.35 m.
How much does the SZGH-I10 weigh?
The SZGH-I10 weighs 38.5 kg.
How many degrees of freedom does the SZGH-I10 have?
The SZGH-I10 has 6 degrees of freedom.
