DESCRIPTION
SZGH-I12 is a Collaborative-Robot from SZGH Automation. It is built for Assembly, Machine-Tending, Material-Handling. Key figures: 40 kg, 12 kg payload, 1250 mm reach, 6 degrees of freedom.
The SZGH-I12 is a six-axis collaborative robot in SZGH's I-series from ShenZhen GuanHong Automation. It carries 12 kg over a 1250 mm reach with ±0.03 mm repeatability, weighs about 40 kg and draws around 500 W on average. All six joints rotate ±360°, it mounts on the floor, a ceiling or a wall, and SZGH says its collision detection stops the arm on contact so it can run without guardrails. SZGH lists it for 3C electronics, automotive, hardware and appliances, kitchen and sanitary ware, medical and health, research and education, catering, new retail, daily chemicals and logistics.
FEATURES
- Payload: 12 kg
- Reach: 1250 mm
- Repeatability: ±0.03 mm

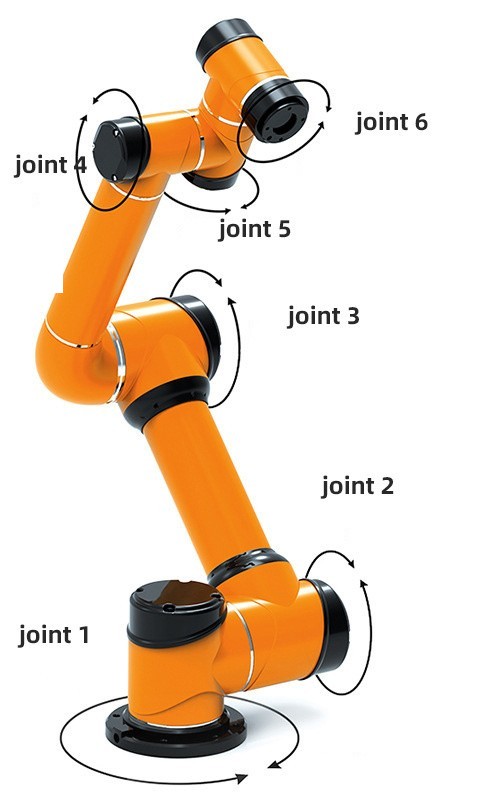

- 6 axes, each with ±360° motion range
- Max joint speed: 178°/s (axes 1, 2, 4, 5, 6), 267°/s (axis 3)
- Average power: 500 W
- Weight: about 40 kg
- Collision detection: stops on contact, no guardrails needed (SZGH)
- Mounting: floor, ceiling or wall
- Ambient temperature: 0-50 °C
- Warranty: 2 years, with lifetime technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 40 kg |
|---|---|
| Payload | 12 kg |
| Reach | 1.25 m |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 40 kg |
|---|---|
| Payload | 12 kg |
| Reach | 1.25 m |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-I12?
The SZGH-I12 is a six-axis collaborative robot in SZGH's I-series from ShenZhen GuanHong Automation. It carries 12 kg over a 1250 mm reach with ±0.03 mm repeatability, weighs about 40 kg and draws around 500 W on average.
Who makes the SZGH-I12?
The SZGH-I12 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-I12 cost?
SZGH Automation has not publicly announced pricing for the SZGH-I12. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-I12 used for?
The SZGH-I12 is designed for assembly, machine-tending, material-handling, and pick-and-place. It is used in automotive, electronics, research, and education settings.
What is the payload capacity of the SZGH-I12?
The SZGH-I12 has a payload capacity of 12 kg and a reach of 1.25 m.
How much does the SZGH-I12 weigh?
The SZGH-I12 weighs 40 kg.
How many degrees of freedom does the SZGH-I12 have?
The SZGH-I12 has 6 degrees of freedom.
