DESCRIPTION
SZGH-I16 is a Collaborative-Robot from SZGH Automation. It is built for Assembly, Machine-Tending, Material-Handling. Key figures: 38 kg, 16 kg payload, 967.5 mm reach, 6 degrees of freedom.
The SZGH-I16 is a six-axis collaborative robot in SZGH's I-series from ShenZhen GuanHong Automation that pairs a high 16 kg payload with a compact 967.5 mm reach. It has ±0.03 mm repeatability, weighs about 38 kg and draws around 600 W on average. All six joints rotate ±360°, it mounts on the floor, a ceiling or a wall, and SZGH says its collision detection stops the arm on contact so it can run without guardrails. SZGH lists it for 3C electronics, automotive, hardware and appliances, kitchen and sanitary ware, medical and health, research and education, catering, new retail, daily chemicals and logistics.
FEATURES
- Payload: 16 kg
- Reach: 967.5 mm
- Repeatability: ±0.03 mm

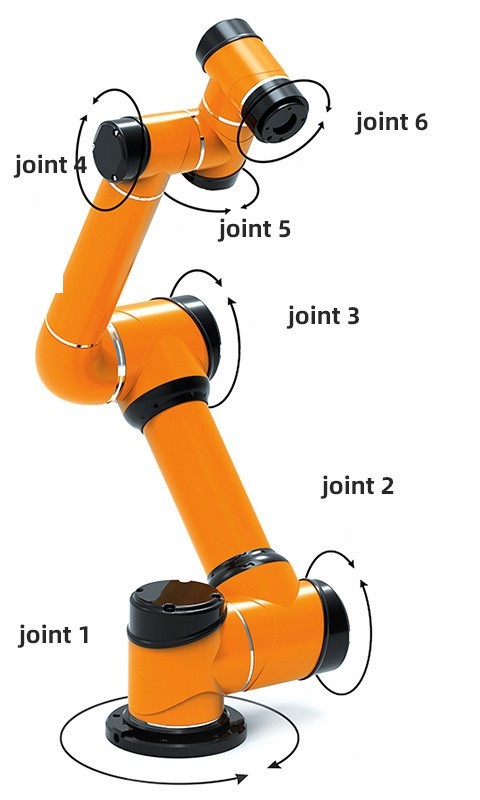

- 6 axes, each with ±360° motion range
- Max joint speed: 178°/s (axes 1, 2, 4, 5, 6), 267°/s (axis 3)
- Average power: 600 W
- Weight: about 38 kg
- Collision detection: stops on contact, no guardrails needed (SZGH)
- Mounting: floor, ceiling or wall
- Ambient temperature: 0-50 °C
- Warranty: 2 years, with lifetime technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 38 kg |
|---|---|
| Payload | 16 kg |
| Reach | 967.5 mm |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 38 kg |
|---|---|
| Payload | 16 kg |
| Reach | 967.5 mm |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-I16?
The SZGH-I16 is a six-axis collaborative robot in SZGH's I-series from ShenZhen GuanHong Automation that pairs a high 16 kg payload with a compact 967.5 mm reach. It has ±0.03 mm repeatability, weighs about 38 kg and draws around 600 W on average.
Who makes the SZGH-I16?
The SZGH-I16 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-I16 cost?
SZGH Automation has not publicly announced pricing for the SZGH-I16. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-I16 used for?
The SZGH-I16 is designed for assembly, machine-tending, material-handling, and pick-and-place. It is used in automotive, electronics, research, and education settings.
What is the payload capacity of the SZGH-I16?
The SZGH-I16 has a payload capacity of 16 kg and a reach of 967.5 mm.
How much does the SZGH-I16 weigh?
The SZGH-I16 weighs 38 kg.
How many degrees of freedom does the SZGH-I16 have?
The SZGH-I16 has 6 degrees of freedom.
