DESCRIPTION
SZGH-I20 is a Collaborative-Robot from SZGH Automation. It is built for Assembly, Machine-Tending, Material-Handling. Key figures: 63 kg, 20 kg payload, 1650 mm reach, 6 degrees of freedom.
The SZGH-I20 is the largest model in SZGH's I-series of six-axis collaborative robots from ShenZhen GuanHong Automation. It carries 20 kg over a 1650 mm reach, weighs about 63 kg and draws around 1000 W on average. All six joints rotate ±360°, it mounts on the floor, a ceiling or a wall, and SZGH says its collision detection stops the arm on contact so it can run without guardrails. SZGH lists it for 3C electronics, automotive, hardware and appliances, kitchen and sanitary ware, medical and health, research and education, catering, new retail, daily chemicals and logistics.
FEATURES
- Payload: 20 kg
- Reach: 1650 mm

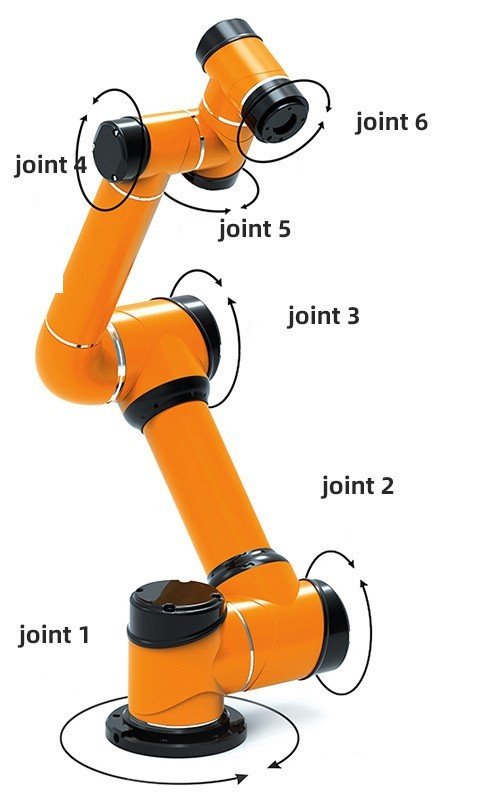

- 6 axes, each with ±360° motion range
- Max joint speed: 93°/s (axes 1, 2), 178°/s (axes 3-6)
- Average power: 1000 W
- Weight: about 63 kg
- Collision detection: stops on contact, no guardrails needed (SZGH)
- Mounting: floor, ceiling or wall
- Ambient temperature: 0-50 °C
- Warranty: 2 years, with lifetime technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 63 kg |
|---|---|
| Payload | 20 kg |
| Reach | 1.65 m |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 63 kg |
|---|---|
| Payload | 20 kg |
| Reach | 1.65 m |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-I20?
The SZGH-I20 is the largest model in SZGH's I-series of six-axis collaborative robots from ShenZhen GuanHong Automation. It carries 20 kg over a 1650 mm reach, weighs about 63 kg and draws around 1000 W on average.
Who makes the SZGH-I20?
The SZGH-I20 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-I20 cost?
SZGH Automation has not publicly announced pricing for the SZGH-I20. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-I20 used for?
The SZGH-I20 is designed for assembly, machine-tending, material-handling, and pick-and-place. It is used in automotive, electronics, research, and education settings.
What is the payload capacity of the SZGH-I20?
The SZGH-I20 has a payload capacity of 20 kg and a reach of 1.65 m.
How much does the SZGH-I20 weigh?
The SZGH-I20 weighs 63 kg.
How many degrees of freedom does the SZGH-I20 have?
The SZGH-I20 has 6 degrees of freedom.
