Zalpha ARV is an Industrial-Robot from DF Automation. It is built for Machine-Tending, Material-Handling. Key figures: 600 min runtime, 300 kg payload.

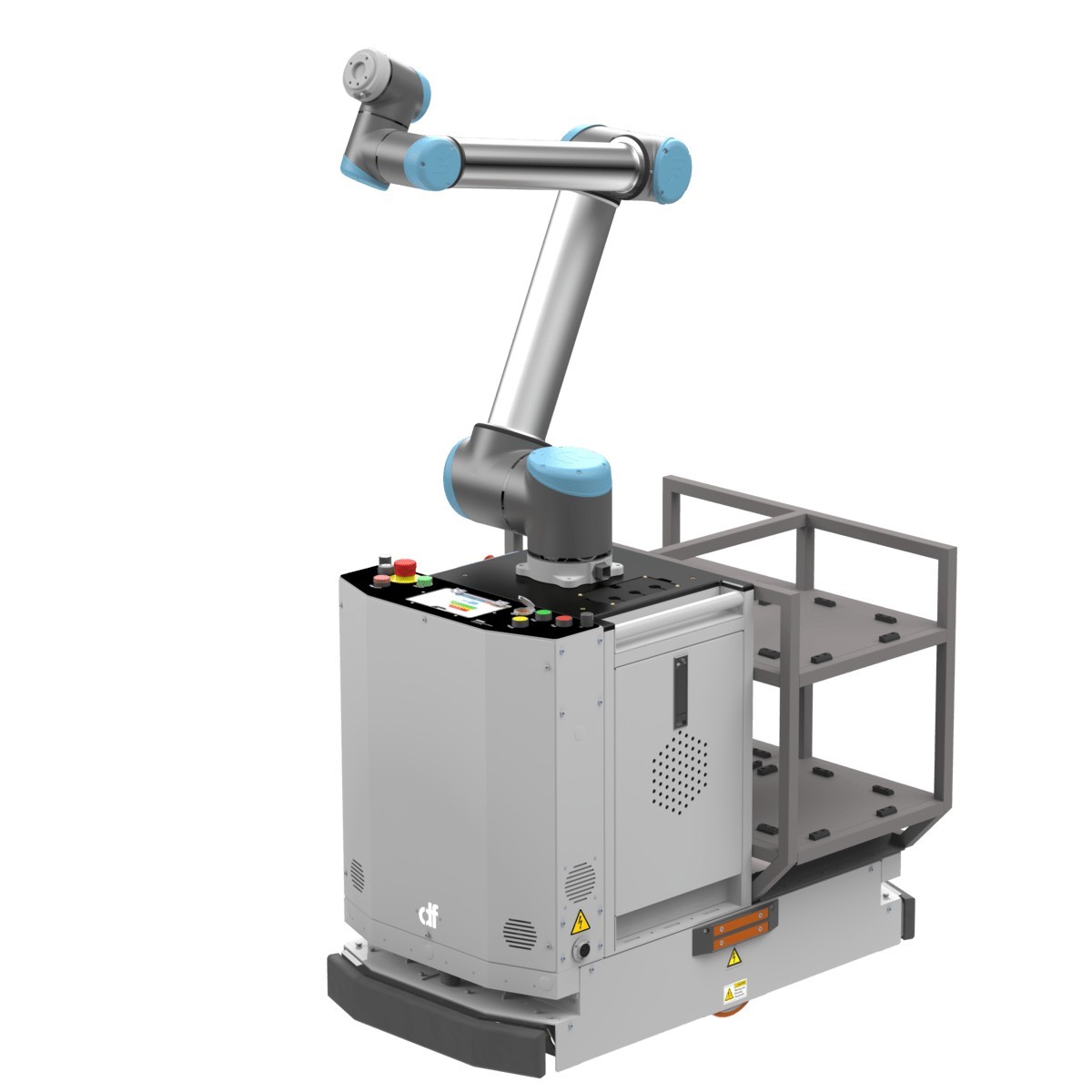

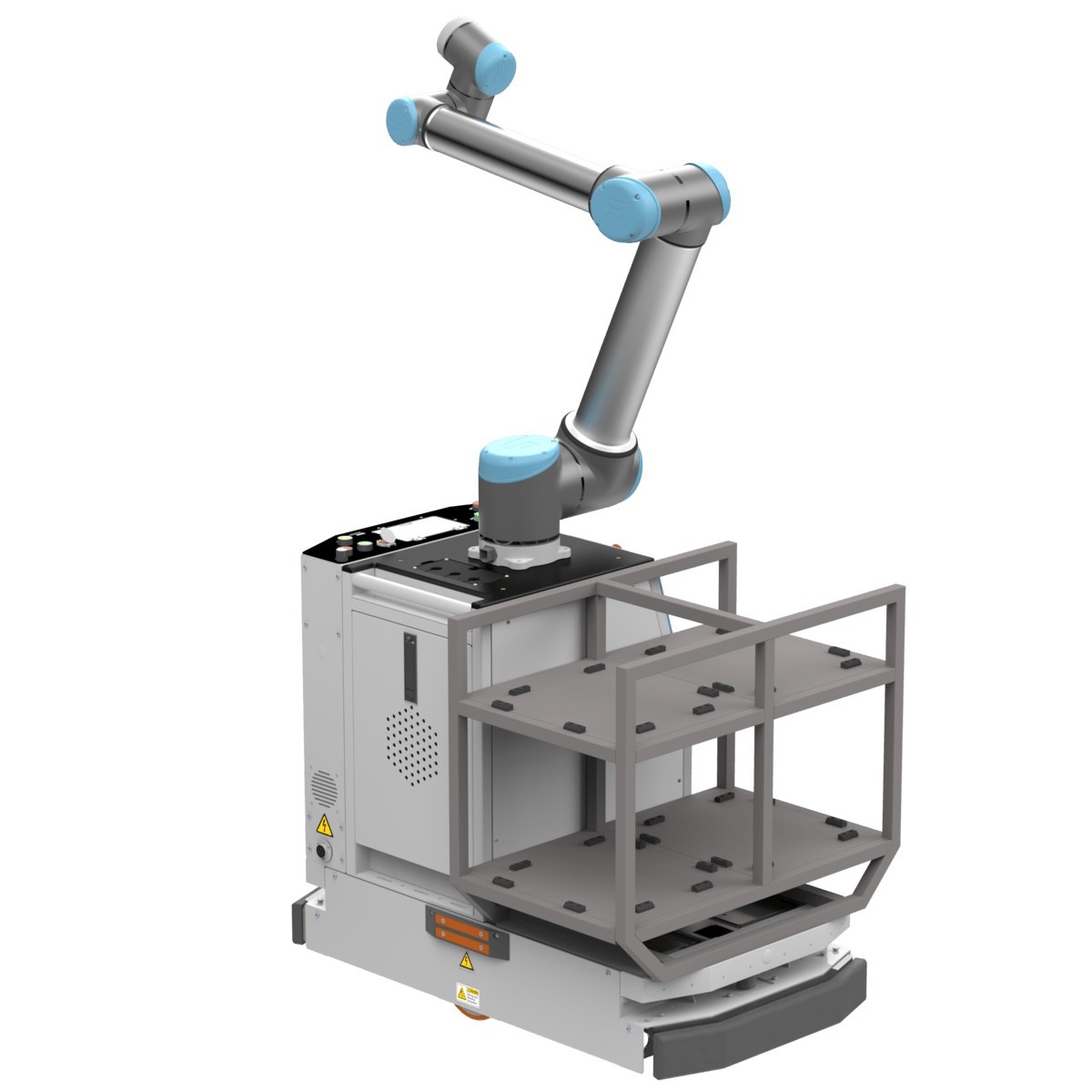

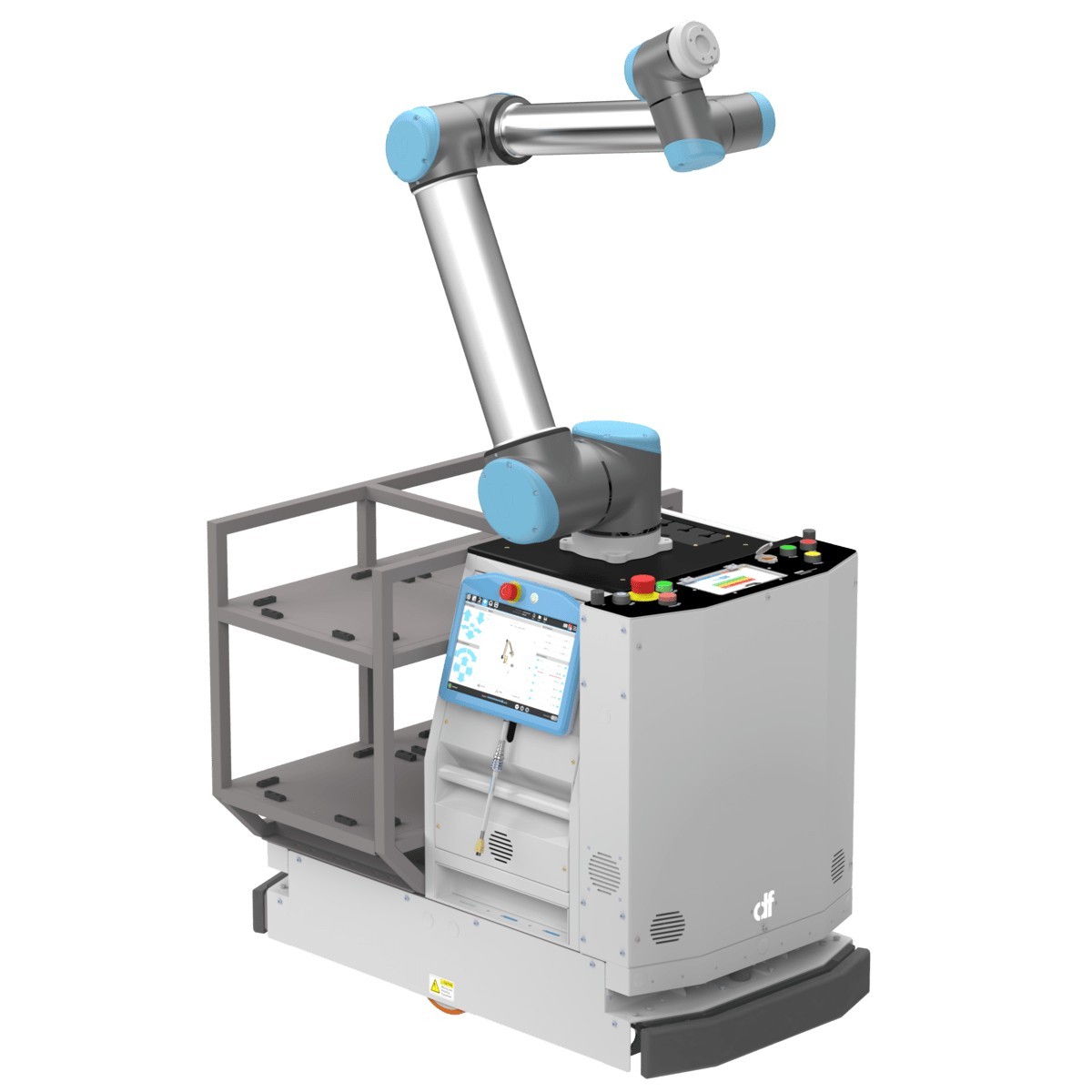

Zalpha ARV (autonomous robot vehicle) is DF Automation & Robotics' mobile manipulator: an extended Zalpha AMR that carries a Universal Robots collaborative arm, offered as model Zalpha-E-TB-03 for the UR3, UR5 or UR10 cobot, so a single robot can drive between stations and pick, place or tend machines on arrival. The platform carries 300 kg, is 550 mm wide with a load surface 820 x 550 mm at 203 mm from the ground, and drives at up to 1 m/s on a two-wheel differential drive using bottom-mounted laser natural-feature navigation. A 25.6 V, 130 Ah LiFePO4 battery gives about 10 hours of operation and recharges in about 2 hours, and the robot is programmed with DF's NavWiz software and coordinated with DFleet.
FEATURES
- Zalpha extended AMR with Universal Robots cobot (UR3, UR5 or UR10)
- Payload 300 kg
- load surface 820 x 550 mm at 203 mm height
- width 550 mm
- Bottom laser natural-feature navigation (TB)
- speed up to 1 m/s
- 2-wheel differential drive
- LiFePO4 25.6 V 130 Ah
- ~10 h running time
- ~2 h charge
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | W 550 mm |
|---|---|
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factories and labs (indoor) |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | laser scanner, cobot force sensing (UR) |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | W 550 mm |
|---|---|
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factories and labs (indoor) |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | laser scanner, cobot force sensing (UR) |
| Connectivity | Wi-Fi |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Zalpha ARV?
Zalpha ARV (autonomous robot vehicle) is DF Automation & Robotics' mobile manipulator: an extended Zalpha AMR that carries a Universal Robots collaborative arm, offered as model Zalpha-E-TB-03 for the UR3, UR5 or UR10 cobot, so a single robot can drive between stations and pick, place or tend machines on arrival.
Who makes the Zalpha ARV?
The Zalpha ARV is made by DF Automation, a robotics company based in Malaysia.
How much does the Zalpha ARV cost?
DF Automation has not publicly announced pricing for the Zalpha ARV. You can enquire through RobotAIGeek for current pricing.
What is the Zalpha ARV used for?
The Zalpha ARV is designed for machine-tending and material-handling. It is used in electronics and manufacturing settings.
What is the payload capacity of the Zalpha ARV?
The Zalpha ARV has a payload capacity of 300 kg.
How fast is the Zalpha ARV?
The Zalpha ARV can move at speeds of up to 3.6 km/h.
What is the battery life of the Zalpha ARV?
The Zalpha ARV runs for about 600 minutes on a charge.
