DESCRIPTION
CRAZY FAT is an Industrial-Robot from HITO Robotic System. It is built for Intralogistics, Machine-Tending, Material-Handling. Key figures: 300 kg, 20 kg payload, 1700 mm reach.

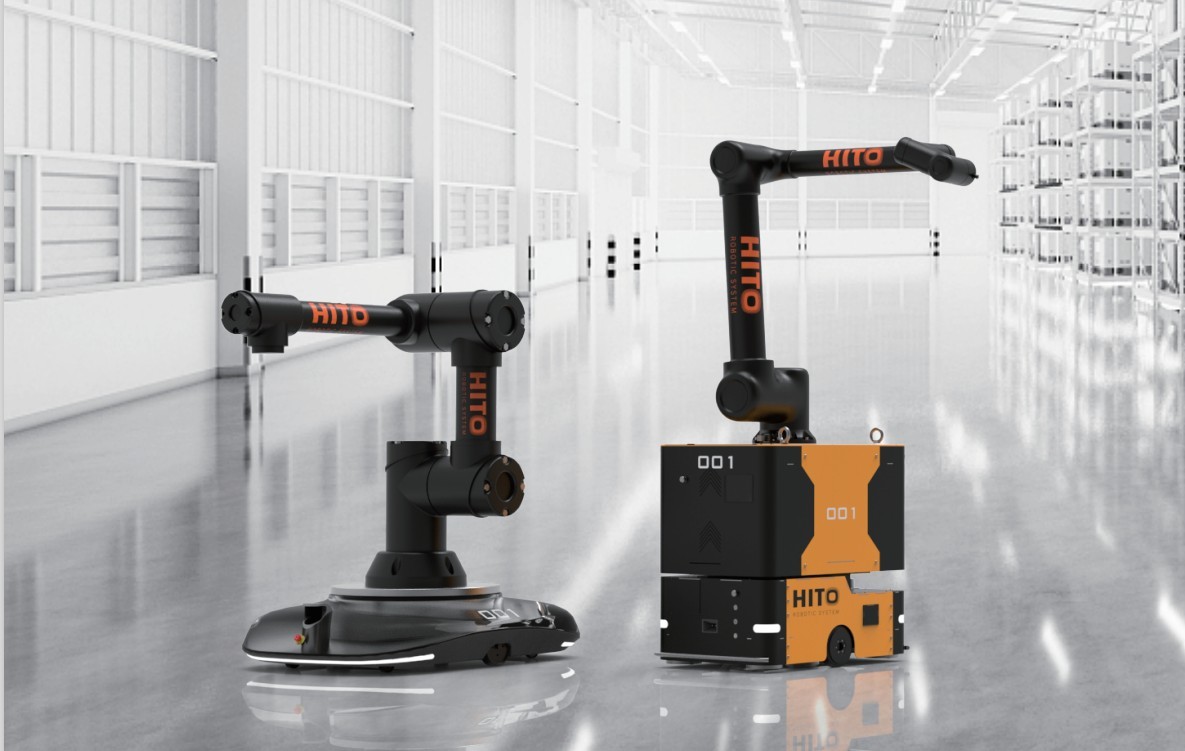

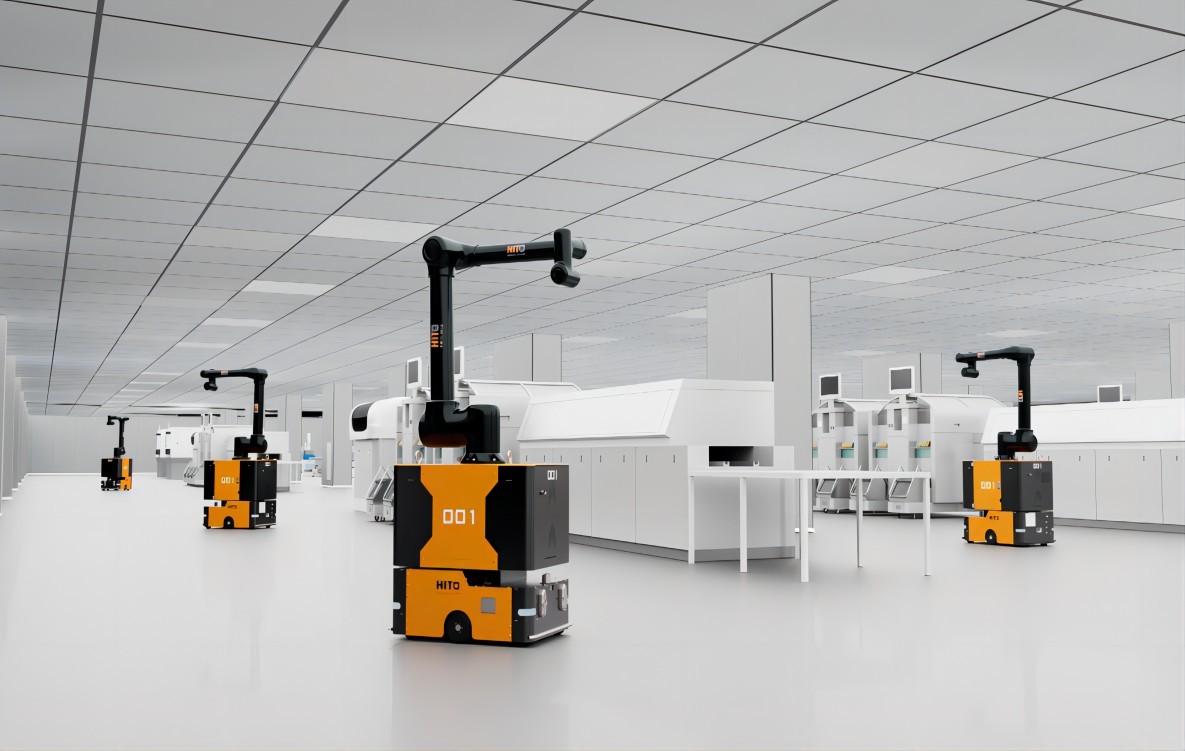

CRAZY FAT (model HT-VCE-10) is HITO's mobile manipulator, which mounts a robot arm on an AMR base so that picking, loading and machine-tending tasks can move between stations. The arm handles loads of up to 20 kg with a working radius of 1,700 mm, and the 800 x 545 x 800 mm, 300 kg base travels at up to 60 m/min (1 m/s). The base navigates by magnetic, optical, laser, visual, inertial or hybrid guidance with +/-10 mm guidance and parking accuracy, and is protected by anti-collision strips and laser sensors, sound-and-light alarms and an emergency stop. It is coordinated with HITO's other AMRs through the company's scheduling system.
FEATURES
- Mobile manipulator (robot arm on AMR), model HT-VCE-10
- Arm load up to 20 kg
- working radius 1,700 mm
- Speed up to 60 m/min
- 800 x 545 x 800 mm
- 300 kg
- Magnetic / optical / laser / visual / inertial / hybrid navigation
- +/-10 mm guidance and parking accuracy
- Anti-collision strip, laser sensor, sound and light alarm, emergency stop
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 800 mm × W 545 mm × H 800 mm |
| Payload | 20 kg |
| Reach | 1.7 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Sensors | anti-collision strip, laser sensor |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 800 mm × W 545 mm × H 800 mm |
| Payload | 20 kg |
| Reach | 1.7 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Sensors | anti-collision strip, laser sensor |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRAZY FAT?
CRAZY FAT (model HT-VCE-10) is HITO's mobile manipulator, which mounts a robot arm on an AMR base so that picking, loading and machine-tending tasks can move between stations.
Who makes the CRAZY FAT?
The CRAZY FAT is made by HITO Robotic System, a robotics company based in China.
How much does the CRAZY FAT cost?
HITO Robotic System has not publicly announced pricing for the CRAZY FAT. You can enquire through RobotAIGeek for current pricing.
What is the CRAZY FAT used for?
The CRAZY FAT is designed for intralogistics, machine-tending, material-handling, and pick-and-place. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRAZY FAT?
The CRAZY FAT has a payload capacity of 20 kg and a reach of 1.7 m.
How much does the CRAZY FAT weigh?
The CRAZY FAT weighs 300 kg.
How fast is the CRAZY FAT?
The CRAZY FAT can move at speeds of up to 3.6 km/h.
