DESCRIPTION
NarGoF300 is an Industrial-Robot from TWINNY. It is built for Intralogistics, Material-Handling, Transport. Key figures: 480 min runtime, 300 kg payload.

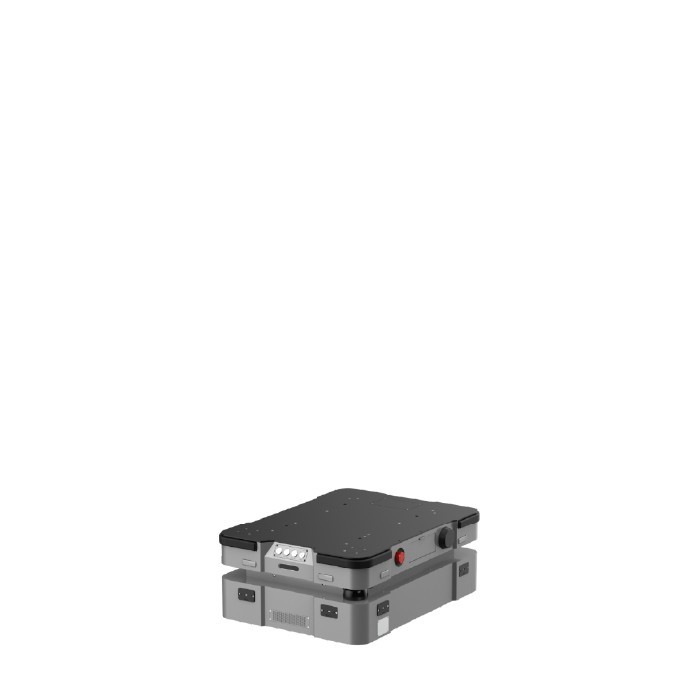

The NarGoF300 is the 300 kg model of TWINNY's NarGoF family of low-profile factory robots, designed as a base for customized automation in production environments. It automates repetitive transport of heavy materials, cutting labour costs and improving workplace safety, and both its features and hardware can be customized - TWINNY shows it carrying a collaborative robot arm, a roll-cage container and an added 3D LiDAR mast. Two 2D LiDARs at opposite corners give 360-degree obstacle detection and a bumper stops it on contact. The platform measures 820 x 622 x 330 mm, carries 300 kg at up to 1.5 m/s, and runs up to 8 hours on a 50.4 V, 36 Ah lithium-ion battery with automatic or manual charging in under 3 hours; it crosses steps of +/-6 mm and gaps of 30 mm and works at 5-40 C, up to 80% humidity and 100-1,000 lx.
FEATURES
- Payload 300 kg
- Size 820 x 622 x 330 mm
- Max speed 1.5 m/s

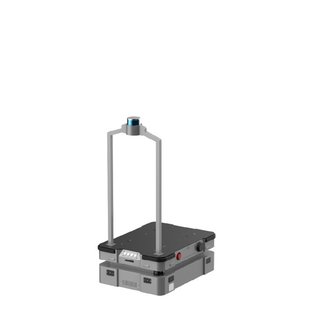

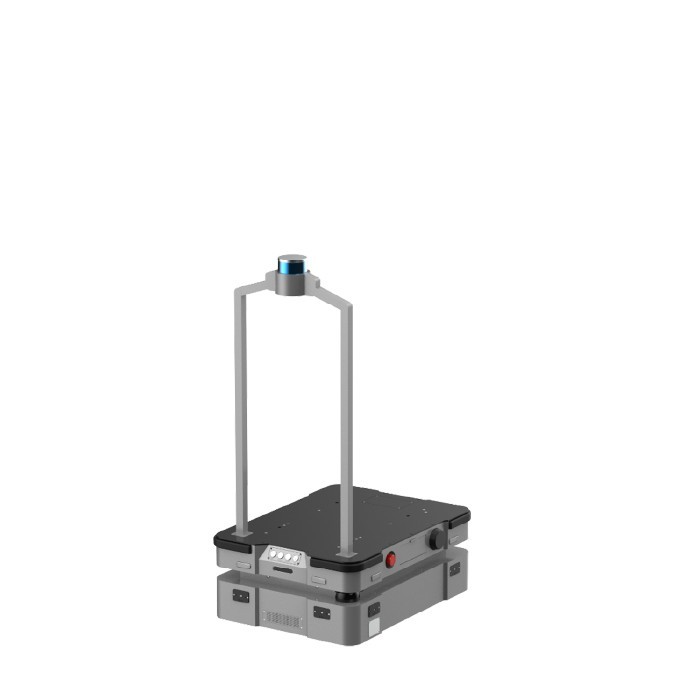

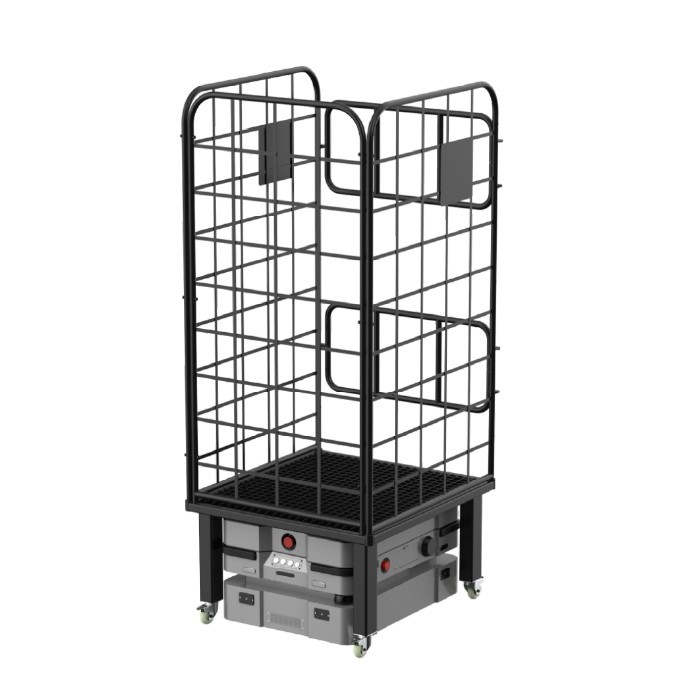

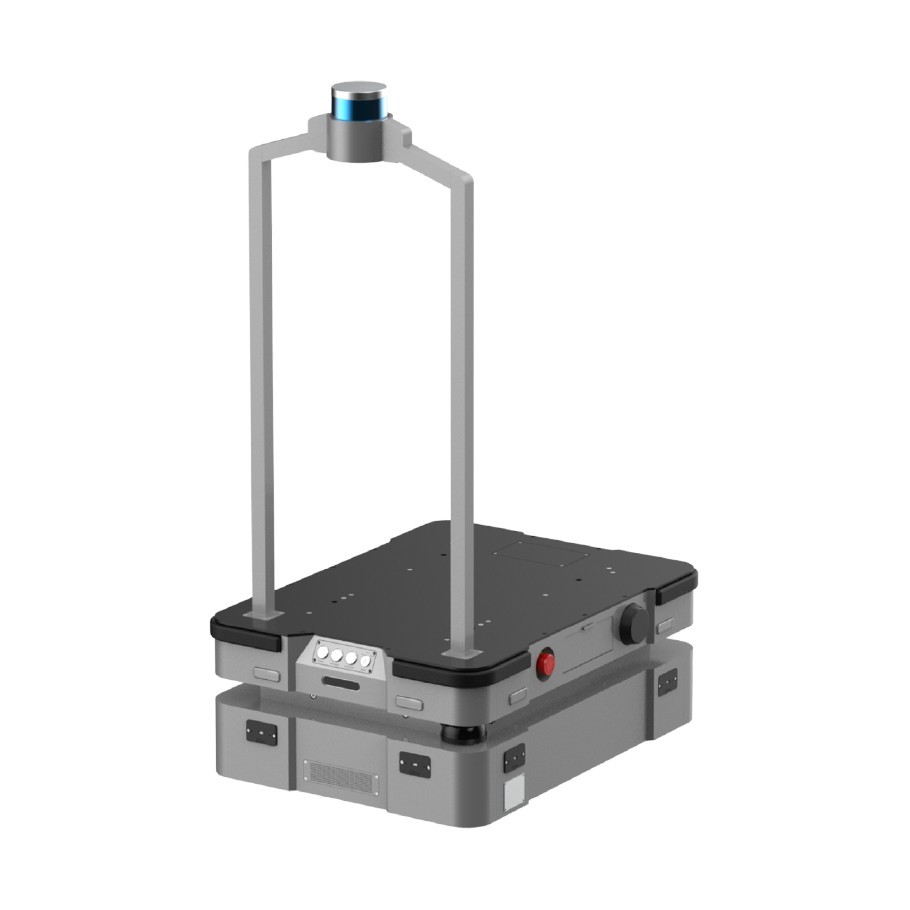

- Customizable top: robot arm, roll cage, 3D LiDAR mast
- Dual 2D LiDAR (360 deg) + bumper
- Li-ion 50.4 V, 36 Ah
- up to 8 h
- charging under 3 h (auto/manual)
- Step +/-6 mm, gap 30 mm
- Operating 5-40 C, <80% RH
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 820 mm × W 622 mm × H 330 mm |
|---|---|
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor buildings, warehouses and factories, 5°C to 40°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2x 2D LiDAR (360 deg), bumper, depth camera |
| Connectivity | Wi-Fi, LTE; TWINNY control system |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 820 mm × W 622 mm × H 330 mm |
|---|---|
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor buildings, warehouses and factories, 5°C to 40°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2x 2D LiDAR (360 deg), bumper, depth camera |
| Connectivity | Wi-Fi, LTE; TWINNY control system |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the NarGoF300?
The NarGoF300 is the 300 kg model of TWINNY's NarGoF family of low-profile factory robots, designed as a base for customized automation in production environments.
Who makes the NarGoF300?
The NarGoF300 is made by TWINNY, a robotics company based in South Korea.
How much does the NarGoF300 cost?
TWINNY has not publicly announced pricing for the NarGoF300. You can enquire through RobotAIGeek for current pricing.
What is the NarGoF300 used for?
The NarGoF300 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the NarGoF300?
The NarGoF300 has a payload capacity of 300 kg.
How fast is the NarGoF300?
The NarGoF300 can move at speeds of up to 5.4 km/h.
What is the battery life of the NarGoF300?
The NarGoF300 runs for about 480 minutes on a charge.
