WObit MOBOT AGV CubeRunner 2 autonomous mobile robot

DESCRIPTION

MOBOT AGV CubeRunner 2 is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Transport. Key figures: 220 kg, 480 min runtime, 200 kg payload.

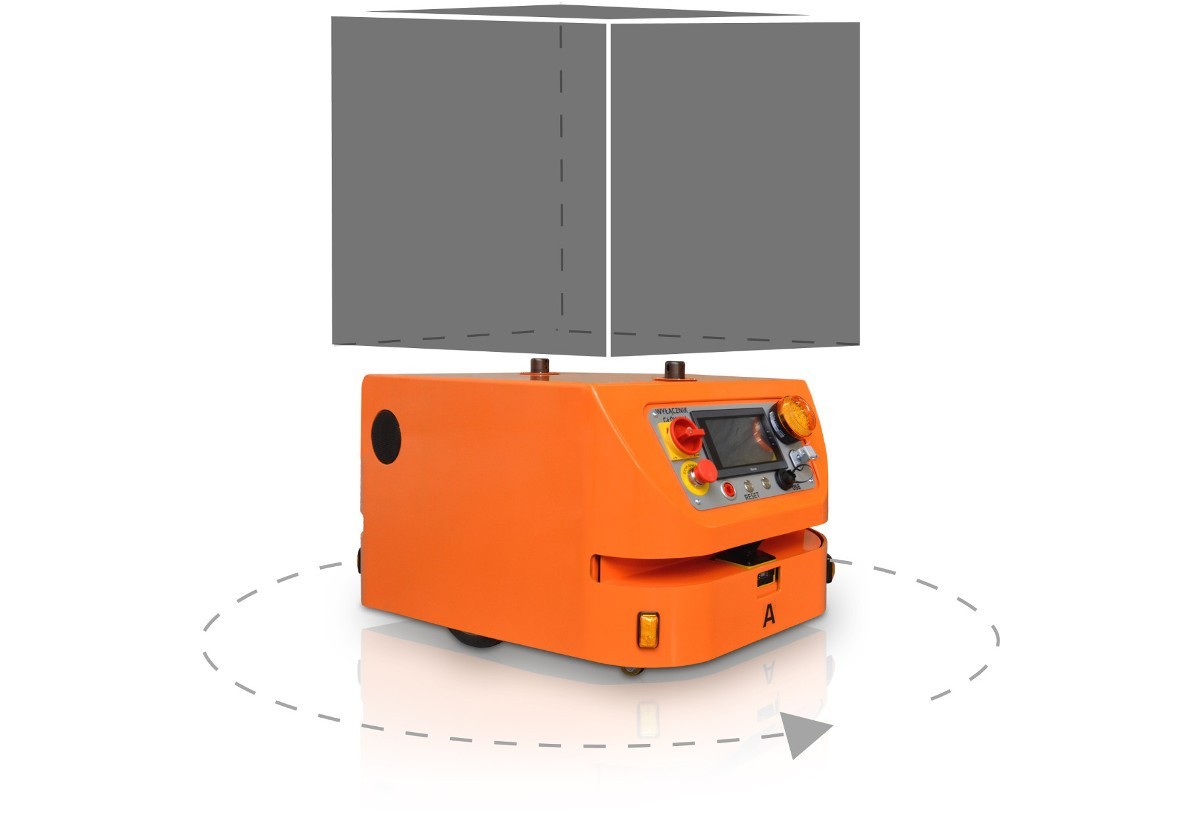

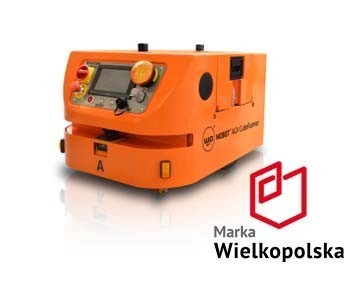

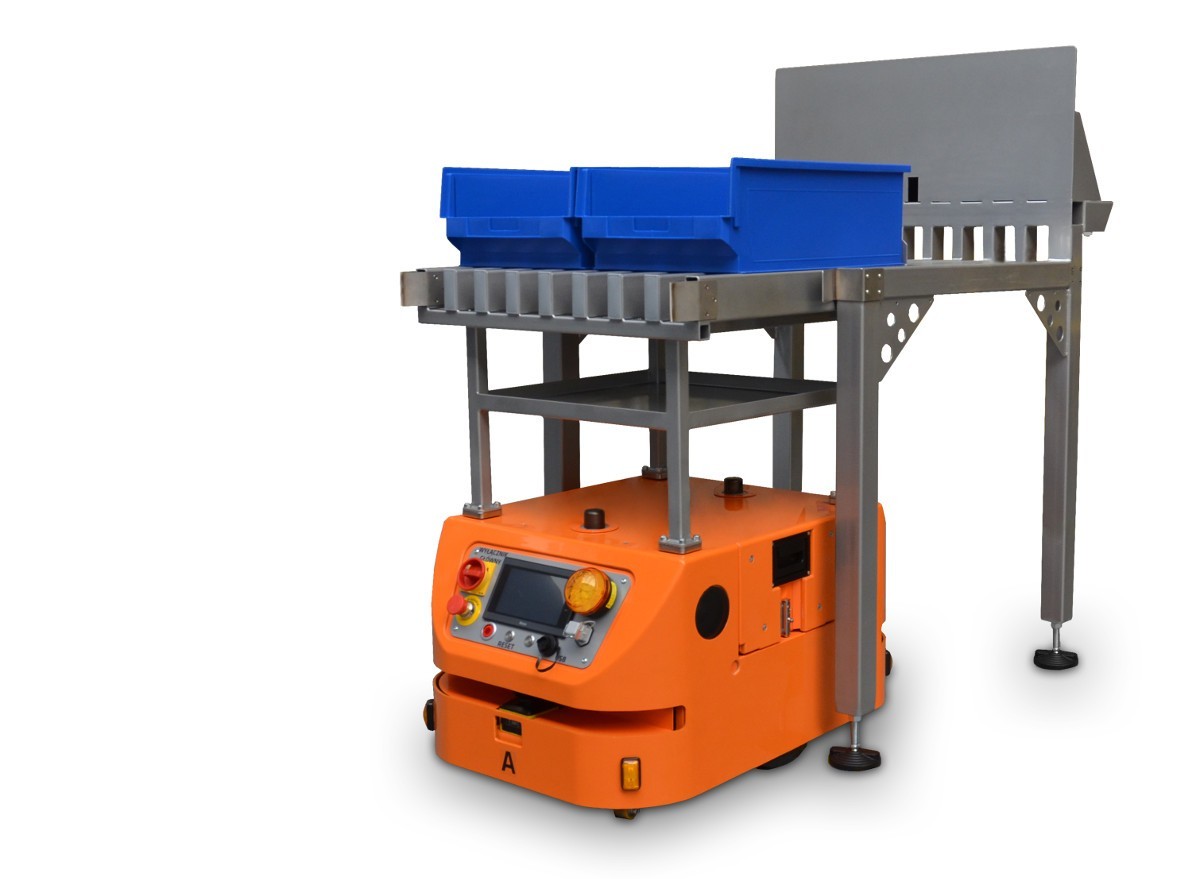

The MOBOT AGV CubeRunner 2 is WObit's cart-transport robot: it drives under a cart and attaches to it with two automatic pins, moving a cart and load of up to 200 kg in total. Two 85 Ah/12 V traction batteries in a quick-change cassette give about 8 hours at full load and recharge in about 3 hours, with an optional battery charging station and automatic contact charging. It navigates with WObit's LMS laser mapping system - building a map of its surroundings and locating itself on characteristic points such as walls, without reflectors or floor markings - combined with a vision system that can follow a line and position the robot precisely; missions are configured in the MOBOT RoutePlanner software and dispatched from a control terminal over 2.4 GHz Wi-Fi, with Ethernet/Modbus TCP and other I/O for integration. Safety laser scanners make it slow down or stop for obstacles, and a touch operator panel, emergency stops and light and sound signals support work alongside people. It drives at up to 3 km/h on two BLDC motors with 250 mm wheels, uses two line-tracking vision systems and two safety laser scanners, is rated IP30 for 5-45 C, measures 900 x 606 x 476 mm and weighs about 220 kg.

FEATURES

Moves carts: total cart + load 200 kg
two automatic coupling pins
Max speed 3 km/h
1 kW
2x 85 Ah/12 V batteries in quick-change cassette
about 8 h
charge about 3 h
LMS laser navigation + 2 vision line-tracking systems
2x 2D safety laser scanners
IP30
5-45 C
Size 900 x 606 x 476 mm
about 220 kg

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	220 kg
Dimensions	L 900 mm × W 606 mm × H 476 mm
Payload	200 kg
Mobility
Movement Type	Wheeled
Speed	2.99 km/h
Environment	Indoor plants; 5-45 C, 5°C to 45°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x 2D safety laser scanner, 2x vision line-tracking system
Connectivity	2.4 GHz Wi-Fi; MOBOT RoutePlanner

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	220 kg
Dimensions	L 900 mm × W 606 mm × H 476 mm
Payload	200 kg
Mobility
Movement Type	Wheeled
Speed	2.99 km/h
Environment	Indoor plants; 5-45 C, 5°C to 45°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x 2D safety laser scanner, 2x vision line-tracking system
Connectivity	2.4 GHz Wi-Fi; MOBOT RoutePlanner

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the MOBOT AGV CubeRunner 2?

The MOBOT AGV CubeRunner 2 is WObit's cart-transport robot: it drives under a cart and attaches to it with two automatic pins, moving a cart and load of up to 200 kg in total.

Who makes the MOBOT AGV CubeRunner 2?

The MOBOT AGV CubeRunner 2 is made by WObit, a robotics company based in Poland.

How much does the MOBOT AGV CubeRunner 2 cost?

WObit has not publicly announced pricing for the MOBOT AGV CubeRunner 2. You can enquire through RobotAIGeek for current pricing.

What is the MOBOT AGV CubeRunner 2 used for?

The MOBOT AGV CubeRunner 2 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
