DESCRIPTION

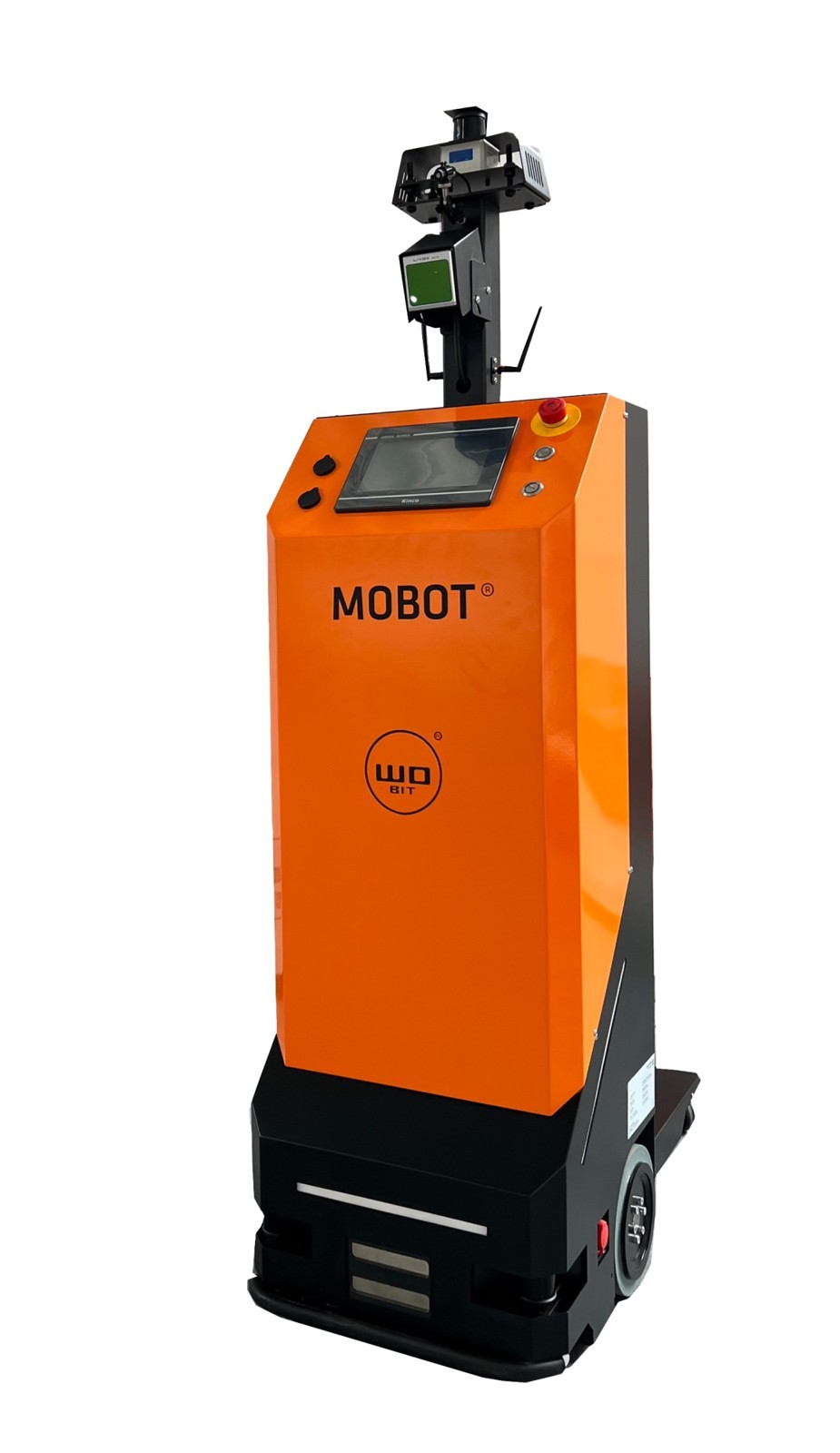

MOBOT AFL3 is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 210 kg, 480 min runtime, 300 kg payload.
The MOBOT AFL3 is WObit's compact autonomous single-fork lifting trolley, carrying loads of up to 300 kg on a 480 x 300 mm fork lifted 70 or 90 mm, with a 345 mm load centre and a 600 mm turning radius for tight spaces. It navigates by laser SLAM without reflectors, with millimetre-level positioning, and its safety system - a 2D safety laser scanner, a separate navigation scanner and fork-height protection - detects obstacles and prevents collisions; it is controlled from a touch operator panel with an emergency stop, signals with light and sound, charges manually or automatically, and works at 0-50 C. A pallet recognition system and 3D obstacle-avoidance scanner are optional. A 48 V/35 Ah lithium NMC battery gives about 8 hours and charges from 10 to 80% in about 1.5 hours; it reaches 1.4 m/s unloaded (0.8 m/s loaded), handles slopes under 3%, measures 914 x 400 x 1,502.5 mm and weighs about 210 kg.
FEATURES
- Single-fork lifting trolley
- load 300 kg
- lift 70/90 mm
- Fork 480 x 300 mm
- SLAM navigation
- Speed 0.8 / 1.4 m/s (loaded / unloaded)
- turning radius 600 mm
- 48 V/35 Ah NMC battery
- about 8 h
- 10-80% in about 1.5 h
- 2D safety + navigation scanners
- optional pallet recognition and 3D scanner
- Size 914 x 400 x 1,502.5 mm
- about 210 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 210 kg |
|---|---|
| Dimensions | L 914 mm × W 400 mm × H 1.5 m |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Environment | Indoor plants and warehouses; 0-50 C, 0°C to 50°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, 2D navigation laser scanner, fork-height protection |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 210 kg |
|---|---|
| Dimensions | L 914 mm × W 400 mm × H 1.5 m |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Environment | Indoor plants and warehouses; 0-50 C, 0°C to 50°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, 2D navigation laser scanner, fork-height protection |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT AFL3?
The MOBOT AFL3 is WObit's compact autonomous single-fork lifting trolley, carrying loads of up to 300 kg on a 480 x 300 mm fork lifted 70 or 90 mm, with a 345 mm load centre and a 600 mm turning radius for tight spaces.
Who makes the MOBOT AFL3?
The MOBOT AFL3 is made by WObit, a robotics company based in Poland.
How much does the MOBOT AFL3 cost?
WObit has not publicly announced pricing for the MOBOT AFL3. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT AFL3 used for?
The MOBOT AFL3 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT AFL3?
The MOBOT AFL3 has a payload capacity of 300 kg.
How much does the MOBOT AFL3 weigh?
The MOBOT AFL3 weighs 210 kg.
How fast is the MOBOT AFL3?
The MOBOT AFL3 can move at speeds of up to 5.04 km/h.
What is the battery life of the MOBOT AFL3?
The MOBOT AFL3 runs for about 480 minutes on a charge.
