DESCRIPTION
TAGON Tugger is an Industrial-Robot from 3S Robotics. It is built for Intralogistics, Material-Handling, Transport. Key figures: 80 kg, 480 min runtime, 200 kg payload.

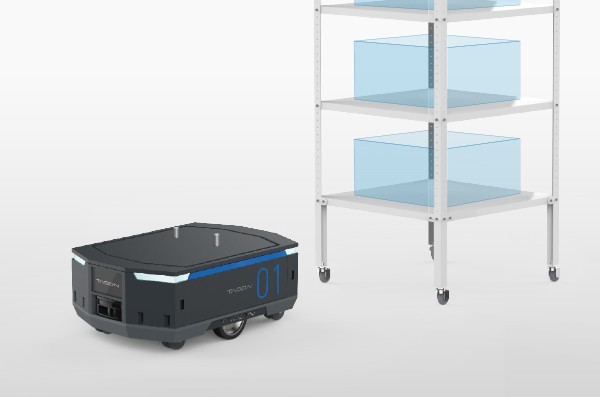

The TAGON Tugger is 3S Robotics' cart-towing AGV that automates the movement of existing manual carts in factories. It drives under a wheeled cart, automatically engages the cart with a tow pin built into its body, and pulls it to the next station, taking over repetitive transfer and return runs along fixed routes. The 800 x 540 x 310 mm, 80 kg robot tows up to 200 kg at up to 0.8 m/s with +/-10 mm driving accuracy, using a differential drive that goes forward and rotates in place, optical or magnetic guidance and 2 m obstacle detection. A 24 V, 29.6 Ah battery runs about 8 hours without load and recharges in up to 2 hours, manually or automatically, and fleets are coordinated over Wi-Fi by the ILC logistics control system.
FEATURES
- Cart-towing AGV: drives under a wheeled cart and engages it with a built-in tow pin
- Towing load 200 kg
- Max speed 0.8 m/s
- driving accuracy +/-10 mm
- Differential drive
- optical or magnetic guidance
- obstacle detection 2 m
- 24 V, 29.6 Ah battery
- 8 h running (no load)
- charging up to 2 h, manual or automatic
- Wi-Fi
- dispatched by ILC system
- 800 x 540 x 310 mm
- 80 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 80 kg |
|---|---|
| Dimensions | L 800 mm × W 540 mm × H 310 mm |
| Payload | 200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Indoor factories and warehouses |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | obstacle detection sensor (2 m), optical / magnetic guidance sensor |
| Connectivity | Wi-Fi; ILC fleet control |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 80 kg |
|---|---|
| Dimensions | L 800 mm × W 540 mm × H 310 mm |
| Payload | 200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Indoor factories and warehouses |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | obstacle detection sensor (2 m), optical / magnetic guidance sensor |
| Connectivity | Wi-Fi; ILC fleet control |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TAGON Tugger?
The TAGON Tugger is 3S Robotics' cart-towing AGV that automates the movement of existing manual carts in factories. It drives under a wheeled cart, automatically engages the cart with a tow pin built into its body, and pulls it to the next station, taking over repetitive transfer and return runs along fixed routes.
Who makes the TAGON Tugger?
The TAGON Tugger is made by 3S Robotics, a robotics company based in South Korea.
How much does the TAGON Tugger cost?
3S Robotics has not publicly announced pricing for the TAGON Tugger. You can enquire through RobotAIGeek for current pricing.
What is the TAGON Tugger used for?
The TAGON Tugger is designed for intralogistics, material-handling, transport, and factory and warehouse material transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the TAGON Tugger?
The TAGON Tugger has a payload capacity of 200 kg.
How much does the TAGON Tugger weigh?
The TAGON Tugger weighs 80 kg.
How fast is the TAGON Tugger?
The TAGON Tugger can move at speeds of up to 2.88 km/h.
What is the battery life of the TAGON Tugger?
The TAGON Tugger runs for about 480 minutes on a charge.
