EROLLER 3

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent EROLLER 3 autonomous mobile robot

DESCRIPTION

EROLLER 3 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 270 kg, 360 min runtime, 240 kg payload.

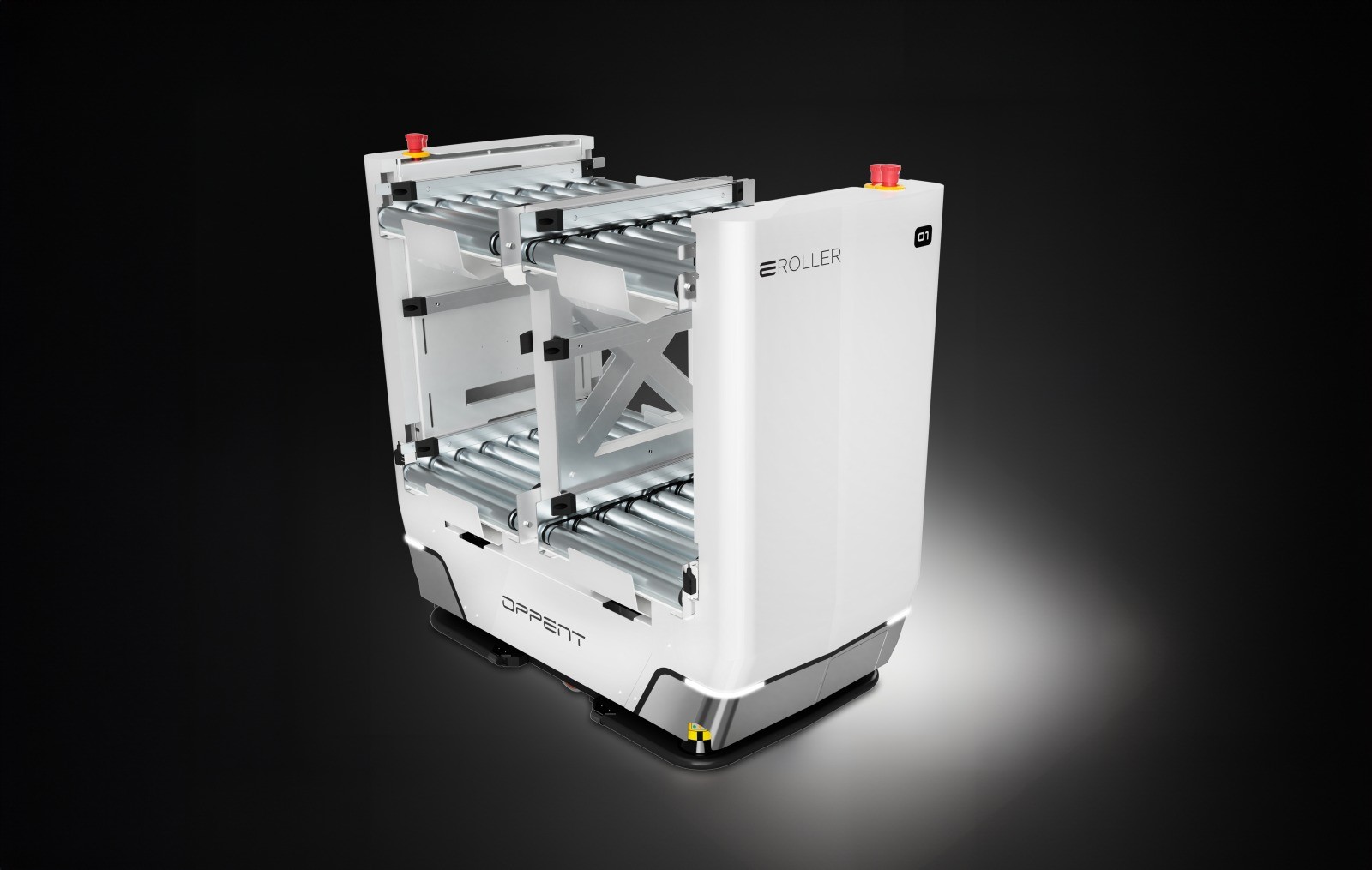

EROLLER 3 is a model in Oppent's EROLLER family of autonomous mobile robots, built in Italy. It carries four separate 600 x 400 mm crates of up to 60 kg each on powered roller decks at two heights, loading and unloading automatically at conveyors.\nPer its datasheet it measures 1,224 x 630 x 1,150 mm, weighs 270 kg without batteries and carries 240 kg nominal (320 kg maximum) on four powered roller conveyors on two levels (450 and 1,050 mm), each 600 x 415 mm. It uses diamond-layout, bidirectional drive (1 x 300 W), travels at up to 1.0 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 6 hours on a LiFePO4 24 V 60 Ah (PureLead 24 V 60 Ah option) battery with 2 h recharge. Safety comes from 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 240 kg
maximum 320 kg
Equipment: four powered roller conveyors on two levels (450 and 1,050 mm), each 600 x 415 mm
Size 1,224 x 630 x 1,150 mm
270 kg without batteries
Drive: diamond-layout, bidirectional drive (1 x 300 W)
max speed 1.0 m/s
slopes up to 3%
Battery: LiFePO4 24 V 60 Ah (PureLead 24 V 60 Ah option)
about 6 h autonomy, 2 h recharge
Safety: 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller
Carries four 600 x 400 mm crates at once, 60 kg each
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	270 kg
Dimensions	L 1.22 m × W 630 mm × H 1.15 m
Payload	240 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	270 kg
Dimensions	L 1.22 m × W 630 mm × H 1.15 m
Payload	240 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the EROLLER 3?

Who makes the EROLLER 3?

The EROLLER 3 is made by Oppent, a robotics company based in Italy.

How much does the EROLLER 3 cost?

Oppent has not publicly announced pricing for the EROLLER 3. You can enquire through RobotAIGeek for current pricing.

What is the EROLLER 3 used for?

The EROLLER 3 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
