DESCRIPTION
MICROautomatic E is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote.

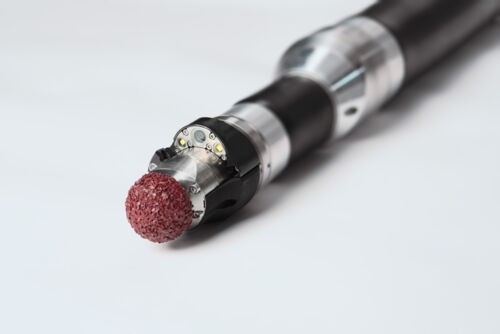

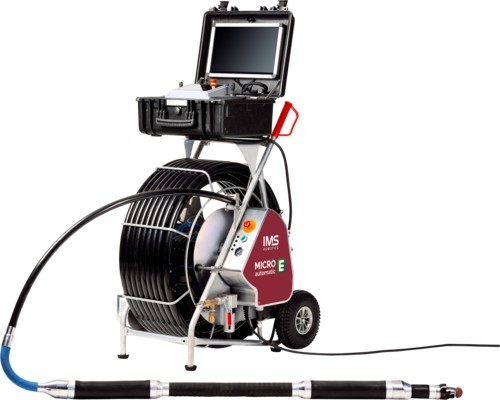

The MICROautomatic E is IMS Robotics' electric cutting robot for house connections from DN 100 to DN 250. Its compact cutter module, about 72 mm in outer diameter, carries an air-cooled electric milling motor with 600 W nominal power and integrated speed control, and bends through 90 degrees from DN 100. Without a large compressor it runs with much less background noise than pneumatic cutters, so crews can work at any time of day. Internal pressure monitoring protects it from moisture, a colour camera with LED lighting and camera cleaning shows the work, and it is run from a PLC touchscreen control with HDMI display holder and two joysticks, fed from a drum with up to 70 m of cable.
FEATURES
- Usable in pipes DN 100 to DN 250
- Cutter outer diameter 72 mm
- Electric milling motor, 600 W nominal power, with speed control
- air-cooled
- 90-degree flexibility in bends from DN 100
- Internal pressure monitoring against moisture
- Colour camera with LED
- camera cleaning
- Up to 70 m cable on drum with pneumatic and electric rotary feedthrough (system approx. 900 x 600 x 1150 mm
- approx. 104 / 113 kg with 50 / 70 m)
- PLC control with touchscreen, HDMI display holder and 2 multifunction joysticks
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Snake-like |
|---|---|
| Environment | Inside house-connection (lateral) sewer pipes, including 90-degree bends |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Snake-like |
|---|---|
| Environment | Inside house-connection (lateral) sewer pipes, including 90-degree bends |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MICROautomatic E?
The MICROautomatic E is IMS Robotics' electric cutting robot for house connections from DN 100 to DN 250. Its compact cutter module, about 72 mm in outer diameter, carries an air-cooled electric milling motor with 600 W nominal power and integrated speed control, and bends through 90 degrees from DN 100.
Who makes the MICROautomatic E?
The MICROautomatic E is made by IMS Robotics, a robotics company based in Germany.
How much does the MICROautomatic E cost?
IMS Robotics has not publicly announced pricing for the MICROautomatic E. You can enquire through RobotAIGeek for current pricing.
What is the MICROautomatic E used for?
The MICROautomatic E is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
