DESCRIPTION
DRIVE is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote. Key figures: 21 kg.

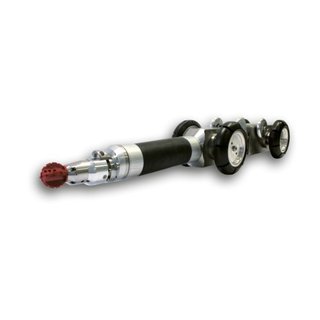

The DRIVE is IMS Robotics' robust self-propelled cutting robot for small main sewers and sewage collectors from DN 150 to DN 400. It drives into the pipe on its own carriage, where its cutting arm turns through 400 degrees and swivels about 90 degrees to remove deposits and to reopen lateral connections after a liner has been installed, while an integrated colour camera with LED lighting shows the operator the cutting point. A pneumatic stabiliser braces the carriage for stability and traction, permanent internal nitrogen pressure monitoring protects the electronics, and a reverse-driving sensor helps on the way back. The system ships with a cable drum carrying 100 m or 150 m of supply hose and a removable control unit with two joysticks and a tablet; the carriage weighs about 21 kg.
FEATURES
- Usable in pipes DN 150 to DN 400
- Carriage outer diameter 120 mm
- carriage approx. 1150 x 190 x 175 mm (DN 250 setup)
- approx. 21 kg
- 400-degree electric rotation
- approx. 90-degree servo-pneumatic swivel (approx. 200 mm)

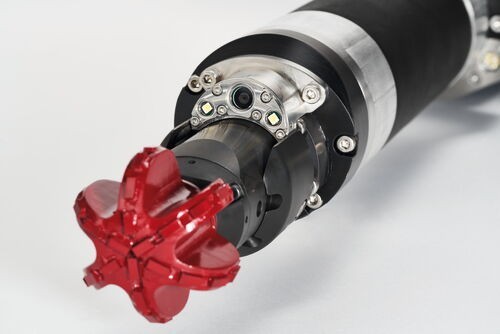

- Integrated colour camera with LED and extra lighting
- camera cleaning with permanent air
- Pneumatic stabiliser for stability and traction
- permanent internal nitrogen pressure monitoring
- reverse-driving sensor

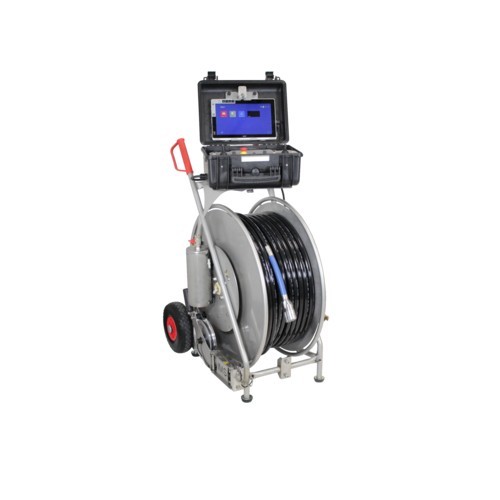

- Cable drum with 100 m or 150 m supply hose (approx. 88 / 104 kg), manual brake

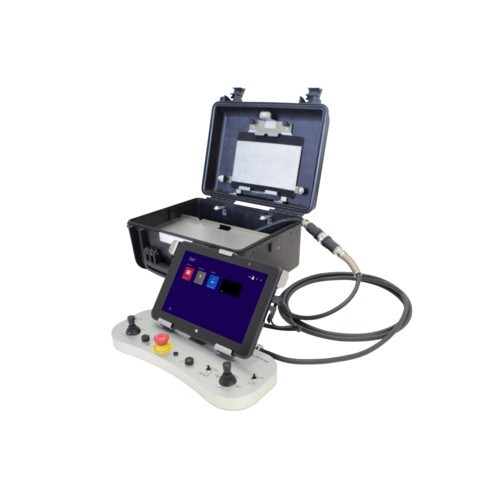

- Removable control unit with 2 joysticks in protective case and tablet
- Options: automatic winding, meter counter, water equipment, granulate and corundum wheel sets, vehicle installation set
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 21 kg |
|---|---|
| Dimensions | L 1.15 m × W 190 mm × H 175 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, reverse-driving sensor, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 21 kg |
|---|---|
| Dimensions | L 1.15 m × W 190 mm × H 175 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, reverse-driving sensor, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DRIVE?
The DRIVE is IMS Robotics' robust self-propelled cutting robot for small main sewers and sewage collectors from DN 150 to DN 400. It drives into the pipe on its own carriage, where its cutting arm turns through 400 degrees and swivels about 90 degrees to remove deposits and to reopen lateral connections after a liner h…
Who makes the DRIVE?
The DRIVE is made by IMS Robotics, a robotics company based in Germany.
How much does the DRIVE cost?
IMS Robotics has not publicly announced pricing for the DRIVE. You can enquire through RobotAIGeek for current pricing.
What is the DRIVE used for?
The DRIVE is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
How much does the DRIVE weigh?
The DRIVE weighs 21 kg.
