DESCRIPTION
TURBO E is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote.
The TURBO E is the electric version of IMS Robotics' TURBO main sewer cutting technology. A powerful electric milling motor with demand-dependent water cooling lets cutting work run efficiently and quietly in main line pipes from DN 250 to DN 800 inner diameter, with the milling arm rotating 440 degrees, swivelling 100 degrees and the motor swivelling a further 120 degrees. Integrated sensors show the position of the carriage, milling arm and motor, and a swivelling colour camera with LED ring, wiper and switchable cleaning nozzle shows the work. The robot is fed from an electric reel with synchronised cable routing and 100 m of cable, and can optionally run from battery packs in a truck build-out to power the unit all day with low noise.
FEATURES
- Usable in pipes DN 250 to DN 800
- Electric milling motor with demand-dependent water cooling
- Rotation 440 degrees
- swivel 100 degrees
- milling motor swivel 120 degrees
- Integrated sensors for carriage, milling arm and motor position display
- Swivelling colour camera with LED ring, wiper and switchable water nozzle
- Electric reeling with synchronised cable routing
- 100 m cable
- Optional battery packs in a truck build-out for all-day quiet operation
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | swivelling colour camera with LED ring, carriage, arm and motor position sensors |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | swivelling colour camera with LED ring, carriage, arm and motor position sensors |
| Connectivity | Wired (umbilical supply hose / cable) |

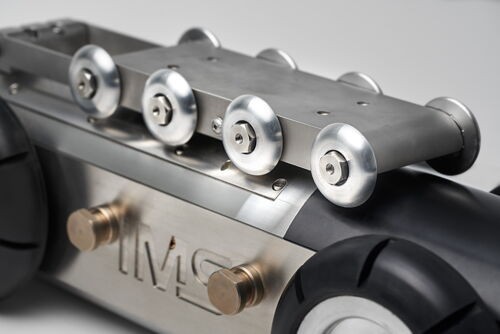

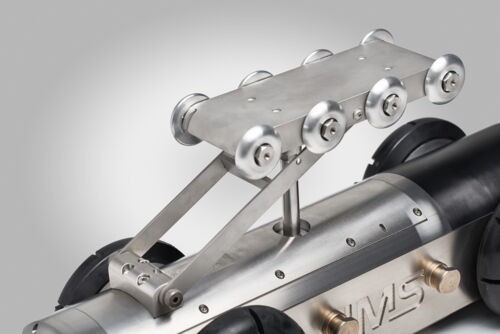

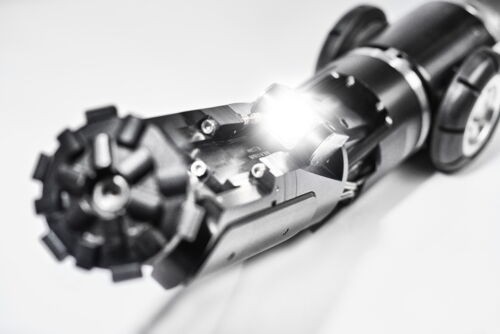

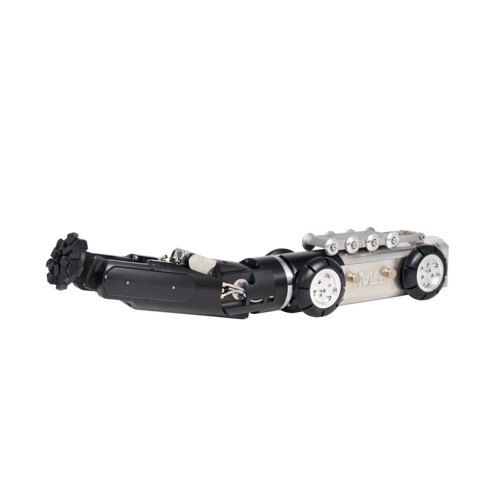

Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TURBO E?
The TURBO E is the electric version of IMS Robotics' TURBO main sewer cutting technology. A powerful electric milling motor with demand-dependent water cooling lets cutting work run efficiently and quietly in main line pipes from DN 250 to DN 800 inner diameter, with the milling arm rotating 440 degrees, swivelling 100…
Who makes the TURBO E?
The TURBO E is made by IMS Robotics, a robotics company based in Germany.
How much does the TURBO E cost?
IMS Robotics has not publicly announced pricing for the TURBO E. You can enquire through RobotAIGeek for current pricing.
What is the TURBO E used for?
The TURBO E is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
