DESCRIPTION
TURBO 3 is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote. Key figures: 70 kg.

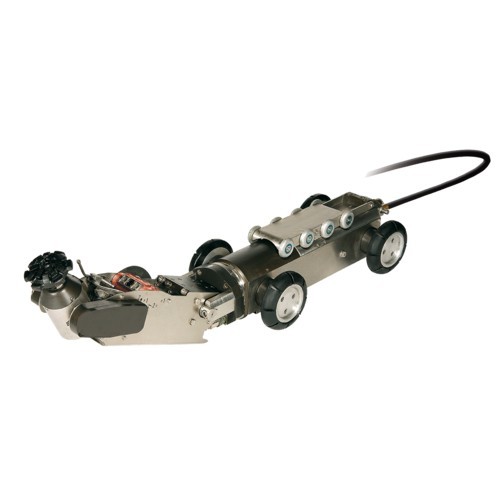

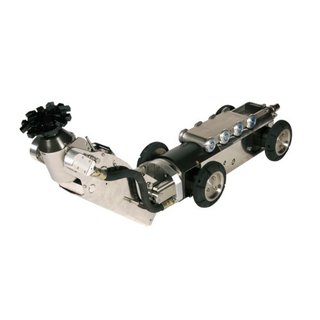

The TURBO 3 is IMS Robotics' proven main sewer cutting robot for all cutting work in main sewers from DN 200 to DN 600, driven by an extremely powerful air motor. Its self-propelled carriage, 180 mm in outer diameter, carries a milling arm with 400-degree electric rotation, about 90 degrees of swivel and an extra cutting-motor swivel, and it can be combined with the IMS MULTISAN rehabilitation system and with SCHWALM or UHRIG installation packers. A swivelling colour camera with two LED spotlights and three wiper blades, nozzles for camera cleaning and tool cooling, an integrated tilt sensor and a reverse-driving sensor make the work easier, while pneumatic stabilisation and permanent nitrogen pressure monitoring keep it steady and dry. The carriage measures about 1100 x 170 x 200 mm and weighs about 70 kg; it is fed from a cable drum with 100 m of supply hose.
FEATURES
- Usable in main sewers DN 200 to DN 600
- egg-shaped pipe extensions DN 250/375 to DN 500/750 optional
- Carriage approx. 1100 x 170 x 200 mm
- outer diameter 180 mm
- approx. 70 kg
- Powerful air motor
- 400-degree electric cutting arm rotation
- approx. 90-degree swivel
- additional cutting-motor swivel
- Swivel colour camera with 2 LED spotlights and 3 wiper blades
- nozzles for camera cleaning and tool cooling
- Integrated tilt sensor
- reverse-driving sensor
- crane connection element
- Pneumatic stabilisation
- permanent internal nitrogen pressure monitoring

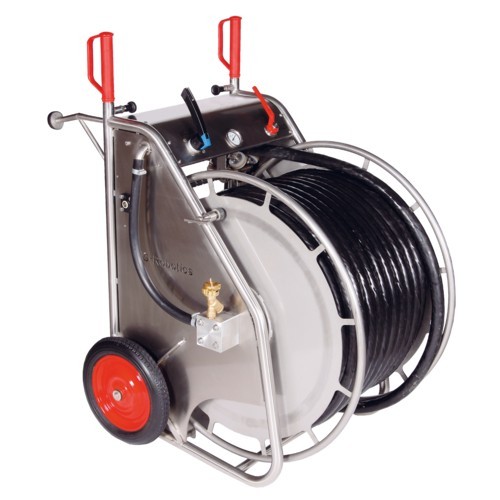

- Cable drum with 100 m supply hose (approx. 160 kg)
- universal control unit
- Combinable with IMS MULTISAN
- connections for SCHWALM and UHRIG Quick-Lock installation packers
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 70 kg |
|---|---|
| Dimensions | L 1.1 m × W 170 mm × H 200 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | swivel colour camera with LED spotlights, tilt sensor, reverse-driving sensor |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 70 kg |
|---|---|
| Dimensions | L 1.1 m × W 170 mm × H 200 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | swivel colour camera with LED spotlights, tilt sensor, reverse-driving sensor |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TURBO 3?
The TURBO 3 is IMS Robotics' proven main sewer cutting robot for all cutting work in main sewers from DN 200 to DN 600, driven by an extremely powerful air motor.
Who makes the TURBO 3?
The TURBO 3 is made by IMS Robotics, a robotics company based in Germany.
How much does the TURBO 3 cost?
IMS Robotics has not publicly announced pricing for the TURBO 3. You can enquire through RobotAIGeek for current pricing.
What is the TURBO 3 used for?
The TURBO 3 is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
How much does the TURBO 3 weigh?
The TURBO 3 weighs 70 kg.
