DESCRIPTION
TURBO 4 is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote. Key figures: 70 kg.

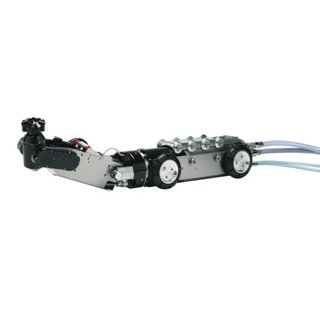

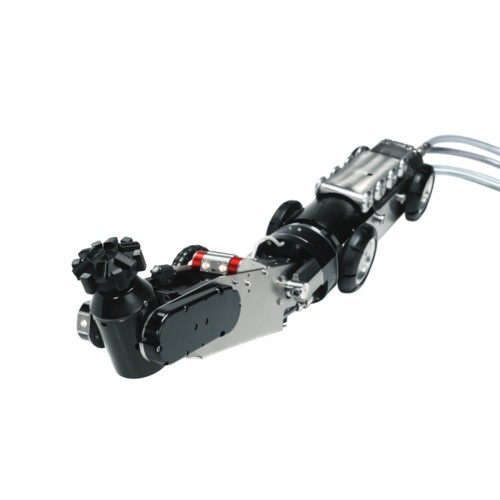

The TURBO 4 is IMS Robotics' all-rounder for large main sewers from DN 200 to DN 800. It cleans main sewers, rehabilitates them with different attachments and reopens lateral connections after liner rehabilitation, with a powerful air motor for reliable removal of deposits. The milling arm rotates electrically through 400 degrees, swivels about 100 degrees and adds about 120 degrees of cutting-motor swivel. A swivelling colour camera with two high-power LEDs and a wiper, a rear-view camera, integrated positioning sensors and a reverse-driving sensor guide the operator, while pneumatic stabilisation and nitrogen pressure monitoring keep the 180 mm diameter, roughly 1100 mm long and 70 kg carriage steady. It can be combined with the IMS CLEANER ultra-high-pressure water set and top-hat rehabilitation packers, and is fed from a 100 m cable drum.
FEATURES
- Usable in pipes DN 200 to DN 800 (carriage extensions DN 700-800
- egg-profile DN 400/600 to DN 600/900)
- Carriage approx. 1100 mm long
- outer diameter 180 mm
- approx. 70 kg
- Powerful air motor
- 400-degree electric rotation
- approx. 100-degree swivel
- approx. 120-degree cutting-motor swivel
- Swivel colour camera with 2 high-power LEDs and wiper
- rear-view camera with LED
- Integrated positioning sensors
- reverse-driving sensor
- crane connection element
- Pneumatic stabilisation
- permanent internal nitrogen pressure monitoring

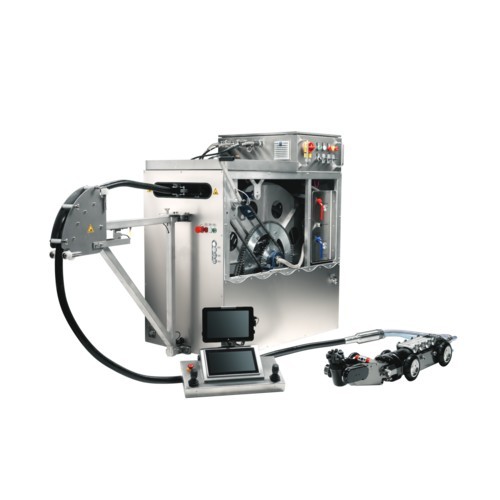

- Cable drum with 100 m supply hose (approx. 390 kg)
- universal control unit
- Combinable with IMS CLEANER UHP water set, rotary swivel drive and parallel swivel arm, top-hat rehabilitation packer
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 70 kg |
|---|---|
| Dimensions | L 1.1 m |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | swivel colour camera with LEDs, rear-view camera, positioning sensors, reverse-driving sensor |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 70 kg |
|---|---|
| Dimensions | L 1.1 m |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | swivel colour camera with LEDs, rear-view camera, positioning sensors, reverse-driving sensor |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TURBO 4?
The TURBO 4 is IMS Robotics' all-rounder for large main sewers from DN 200 to DN 800. It cleans main sewers, rehabilitates them with different attachments and reopens lateral connections after liner rehabilitation, with a powerful air motor for reliable removal of deposits.
Who makes the TURBO 4?
The TURBO 4 is made by IMS Robotics, a robotics company based in Germany.
How much does the TURBO 4 cost?
IMS Robotics has not publicly announced pricing for the TURBO 4. You can enquire through RobotAIGeek for current pricing.
What is the TURBO 4 used for?
The TURBO 4 is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
How much does the TURBO 4 weigh?
The TURBO 4 weighs 70 kg.
