DESCRIPTION

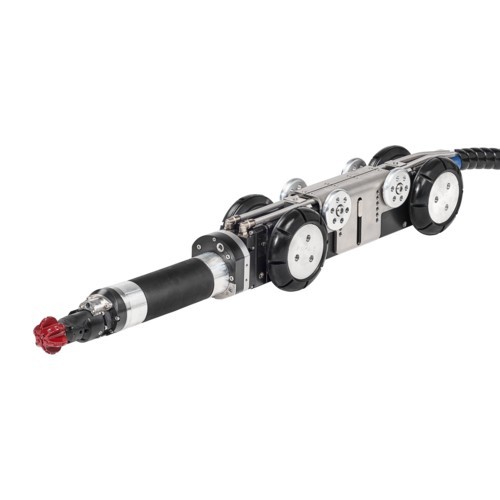

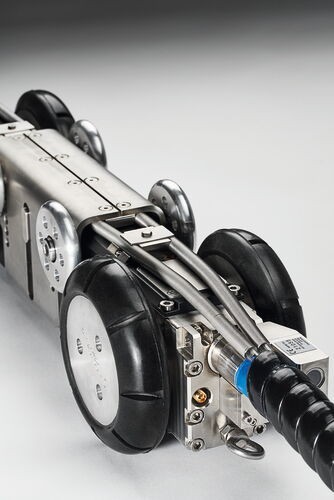

DRIVE 4 is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote.
The DRIVE 4 is a flexible, higher-performance successor in IMS Robotics' DRIVE family of main sewer cutting robots, built for small main sewers and sewage collectors from DN 150 to DN 400. Its self-propelled carriage, with an outer diameter of 136 mm, carries a cutting arm that rotates electrically through 400 degrees and lifts about 200 mm servo-pneumatically, to remove deposits and open inlets after liner rehabilitation. A pneumatic stabiliser improves stability and traction, an integrated colour camera with LED lighting and air cleaning gives a clear view of the work, and a reverse-driving sensor assists retrieval. The system includes a cable drum with up to 150 m of supply hose and a removable two-joystick control unit with tablet.
FEATURES
- Usable in pipes DN 150 to DN 400
- Carriage outer diameter 136 mm
- 400-degree electric rotation
- approx. 200 mm servo-pneumatic cutter arm lift

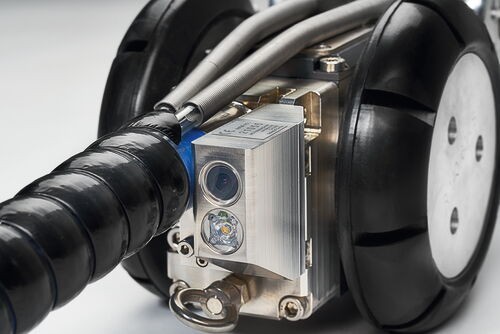

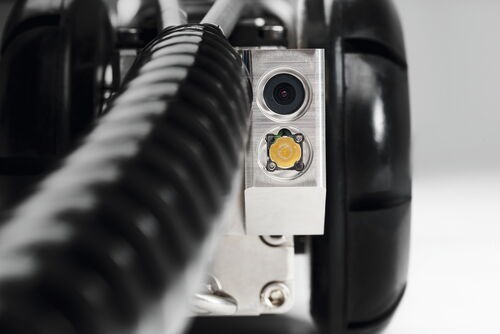

- Integrated colour camera with LED and extra lighting
- camera cleaning with permanent air
- Pneumatic stabiliser for stability and traction
- reverse-driving sensor
- Cable drum with up to 150 m supply hose, manual brake
- Removable control unit with 2 joysticks in protective case and tablet
- Options: automatic winding, meter counter, water equipment, granulate and corundum wheel sets, vehicle installation set
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, reverse-driving sensor |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, reverse-driving sensor |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DRIVE 4?
The DRIVE 4 is a flexible, higher-performance successor in IMS Robotics' DRIVE family of main sewer cutting robots, built for small main sewers and sewage collectors from DN 150 to DN 400.
Who makes the DRIVE 4?
The DRIVE 4 is made by IMS Robotics, a robotics company based in Germany.
How much does the DRIVE 4 cost?
IMS Robotics has not publicly announced pricing for the DRIVE 4. You can enquire through RobotAIGeek for current pricing.
What is the DRIVE 4 used for?
The DRIVE 4 is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
