DESCRIPTION
DRIVE E is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote.

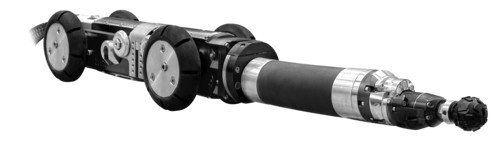

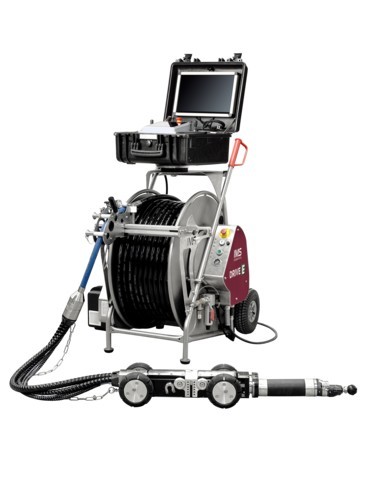

The DRIVE E is the electric member of IMS Robotics' DRIVE family, a milling robot developed for main sewers from DN 150 to DN 400 with an entry depth of up to 100 metres. With a slim carriage of about 122 mm outer diameter it also fits DN 150 pipes, and its electrically driven milling arm rotates through 440 degrees with a servo-pneumatic stroke of about 200 mm, offering a precise and quieter alternative to pneumatic milling robots. A pressure bar on top of the carriage provides stability and traction, internal pressure monitoring protects the system from moisture, and an integrated colour camera with LED lighting and camera cleaning shows the work. The robot is fed from a mobile cable drum with up to 100 m of cable and controlled from a PLC touchscreen unit with HDMI display holder and two multifunction joysticks.
FEATURES
- Usable in pipes DN 150 to DN 400
- up to 100 m entry depth
- Carriage min. outer diameter approx. 122 mm
- Electric milling
- rotation 440 degrees
- servo-pneumatic milling arm stroke approx. 200 mm
- Pneumatic pressure bar for stability and traction
- internal pressure monitoring against moisture
- Integrated colour camera with LED and extra lighting
- camera cleaning
- Mobile cable drum with up to 100 m cable, manual brake
- PLC control with touchscreen, HDMI display holder and 2 multifunction joysticks
- Options: motorised reeling with one-way clutch, meter counting, water equipment, 5 m control extension
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DRIVE E?
The DRIVE E is the electric member of IMS Robotics' DRIVE family, a milling robot developed for main sewers from DN 150 to DN 400 with an entry depth of up to 100 metres.
Who makes the DRIVE E?
The DRIVE E is made by IMS Robotics, a robotics company based in Germany.
How much does the DRIVE E cost?
IMS Robotics has not publicly announced pricing for the DRIVE E. You can enquire through RobotAIGeek for current pricing.
What is the DRIVE E used for?
The DRIVE E is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
