DESCRIPTION
DRIVE 5 is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote. Key figures: 27 kg.

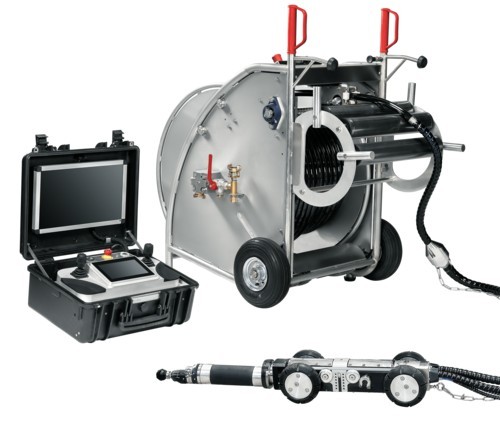

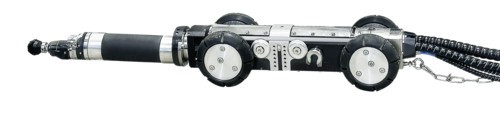

The DRIVE 5 is a pneumatic cutting robot developed for main sewer work in pipes from DN 150 (lined) to DN 400, reaching up to 100 metres into the line. Its slim carriage has a minimum outer diameter of 122 mm, so it also fits lined DN 150 pipes, and its milling arm rotates electrically through 440 degrees with a servo-pneumatic stroke of about 200 mm to remove deposits and reopen laterals. A pneumatic pressure bar holds the carriage for stability and traction, internal pressure monitoring keeps moisture out, and an integrated colour camera with LED lighting and camera cleaning shows the cutting point. It is run from a PLC control with touchscreen, an HDMI display holder and two multifunction joysticks, fed from an electric cable reel with a deflection boom. The carriage measures about 1070 x 190 x 175 mm and weighs 27 kg.
FEATURES
- Usable in pipes DN 150 (lined) to DN 400
- up to 100 m reach
- Carriage approx. 1070 x 190 x 175 mm, 27 kg
- min. outer diameter 122 mm
- Electrically driven rotation 440 degrees
- servo-pneumatic milling arm stroke approx. 200 mm
- Pneumatic pressure bar for stability and traction
- internal pressure monitoring against moisture
- Integrated colour camera with LED and extra lighting
- camera cleaning
- Mobile cable drum (approx. 145 kg) with up to 100 m cable, rotating rollers as kink protection
- PLC control with touchscreen, HDMI display holder and 2 multifunction joysticks (control unit approx. 10 kg)
- Options: automatic winding with freewheel clutch, meter counter, water equipment, vehicle installation set, granulate / corundum wheels
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 27 kg |
|---|---|
| Dimensions | L 1.07 m × W 190 mm × H 175 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 27 kg |
|---|---|
| Dimensions | L 1.07 m × W 190 mm × H 175 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Inside main sewers and sewage collectors (underground pipes) |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting, internal pressure monitoring |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DRIVE 5?
The DRIVE 5 is a pneumatic cutting robot developed for main sewer work in pipes from DN 150 (lined) to DN 400, reaching up to 100 metres into the line.
Who makes the DRIVE 5?
The DRIVE 5 is made by IMS Robotics, a robotics company based in Germany.
How much does the DRIVE 5 cost?
IMS Robotics has not publicly announced pricing for the DRIVE 5. You can enquire through RobotAIGeek for current pricing.
What is the DRIVE 5 used for?
The DRIVE 5 is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
How much does the DRIVE 5 weigh?
The DRIVE 5 weighs 27 kg.
