L200

THIRA Robotics

Industrial-Robot

South KoreaReleased

★Not rated yet

Compare

Sources:

thirarobotics.com

Industries:

Electronics Healthcare Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportFactory and warehouse material transport

Price:

Not announced

Model:

THIRA Robotics L200 autonomous mobile robot

DESCRIPTION

L200 is an Industrial-Robot from THIRA Robotics. It is built for Intralogistics, Material-Handling, Transport. Key figures: 134 kg, 480 min runtime, 200 kg payload.

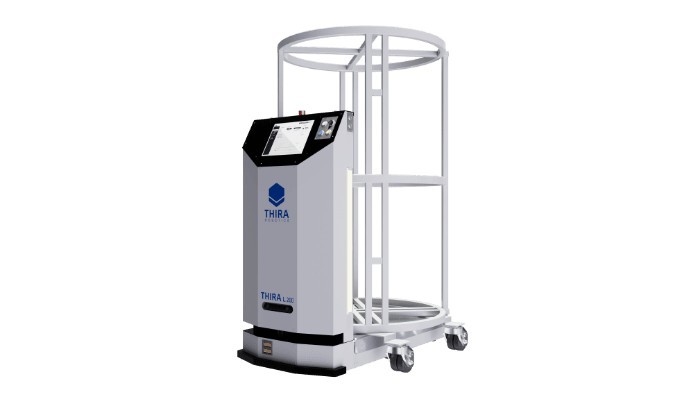

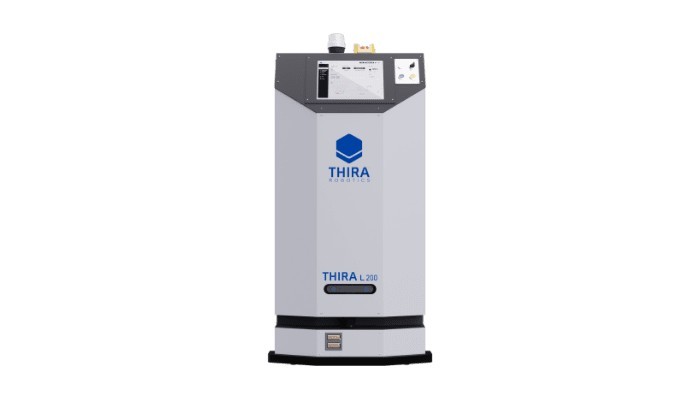

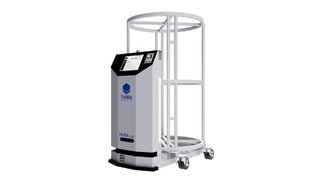

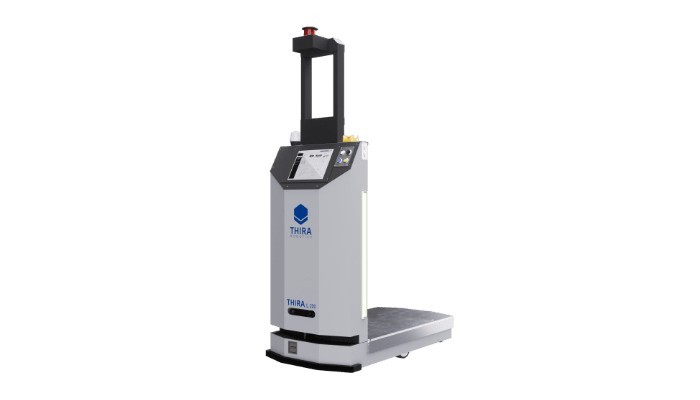

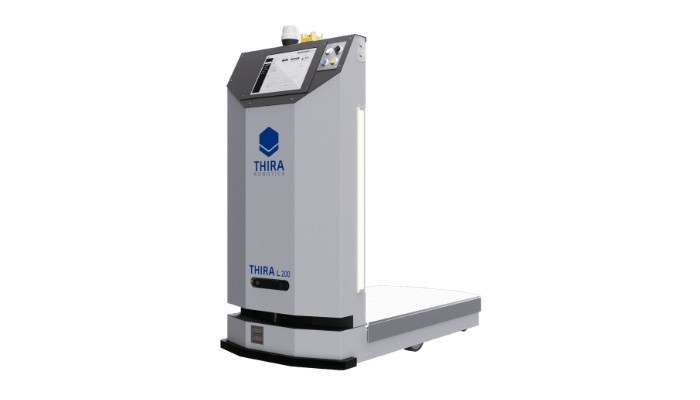

The L200 is THIRA Robotics' L-series autonomous mobile robot for roll containers and carts, moving loads of up to 200 kg; its low build (170 mm ground clearance, 180 mm in the elevator version) lets it work with the low carts customers already use, without replacing them. It measures 1,192 x 614 mm with a height of 1,200 mm, weighs 134 kg and drives at up to 1.3 m/s. Like THIRA's other AMRs it is built for imperfect sites, driving on rough floors and through water and oil spills, and its safety system combines two SICK TiM571 laser scanners covering the front and rear, an Intel RealSense D435 3D camera and two proximity sensors that check the cargo above. A 1 kWh (40.8 Ah at 25.2 V) lithium-ion battery gives about 8 hours of operation and charges from 10 to 90% in about 2 hours; the robot is rated IP21 for use indoors at 5°C to 40°C, communicates over Wi-Fi with REST, ROS 1, MQTT interfaces and is managed through the THIRA FMS fleet system (compliance: CE approval pending).

FEATURES

Payload 200 Kg
441 lbs (Max.)
Dimensions 1,192 mm
46.9 in x 614 mm
24.2 in x 1,200 mm
47.2 in
Weight 134 Kg
295 lbs
Speed 1.1 m/s
2.4 mph (Recommand) 1.3 m/s
2.9 mph (Max.)
Battery 1 kWh (40.8 Ah at 25.2 V)
8 h operation
charging 2 hours, 10% to 90% (Auto, Manual)
Floor conditions: Capability to drive on rough, water, oil spill, offset
Safety: Triple safety system. (LiDAR, Depth Camera, Bumper)
Sensors: 2x SICK TiM571 laser scanner (front 210 deg, rear)
Intel RealSense D435 3D camera
2x proximity sensor (upper cargo detection)
Environment: For indoor use only
+5°C to 40°C
IP21
Communication: REST, ROS 1, MQTT
Wi-Fi
THIRA FMS fleet management
Compliance: CE approval pending

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	134 kg
Dimensions	L 1.19 m × W 614 mm × H 1.2 m
Payload	200 kg
Mobility
Movement Type	Wheeled
Speed	4.68 km/h
Environment	For indoor use only; +5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x SICK TiM571 laser scanner (front 210 deg, rear), Intel RealSense D435 3D camera, 2x proximity sensor (upper cargo detection)
Connectivity	Wi-Fi; REST, ROS 1, MQTT; THIRA FMS

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	134 kg
Dimensions	L 1.19 m × W 614 mm × H 1.2 m
Payload	200 kg
Mobility
Movement Type	Wheeled
Speed	4.68 km/h
Environment	For indoor use only; +5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x SICK TiM571 laser scanner (front 210 deg, rear), Intel RealSense D435 3D camera, 2x proximity sensor (upper cargo detection)
Connectivity	Wi-Fi; REST, ROS 1, MQTT; THIRA FMS

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the L200?

Who makes the L200?

The L200 is made by THIRA Robotics, a robotics company based in South Korea.

How much does the L200 cost?

THIRA Robotics has not publicly announced pricing for the L200. You can enquire through RobotAIGeek for current pricing.

What is the L200 used for?

The L200 is designed for intralogistics, material-handling, transport, and factory and warehouse material transport. It is used in electronics, healthcare, warehouse & logistics, and manufacturing settings.
