DESCRIPTION
Heavy Roll Jumbo is a Mobile-Robots from Esatroll. It is built for Material-Handling, Transport, Laser-guided vehicle that moves paper and tissue coils up to 20 tonnes. Key figures: 20000 kg payload.
Heavy Roll Jumbo is a latest-generation LGV for paper and tissue coils that handles up to 20 tonnes in total. It uses ANT laser navigation, which takes any fixed element of the surroundings as a reference so installation is quick, with laser scanners and bumpers for safety, opportunity charging and missions received over Wi-Fi from Esatroll's supervisor or the plant's system. Like Esatroll's other vehicles it is designed and built in-house in Switzerland and adapted to each customer's plant, and it can be run by Esatroll's customised supervisor, which takes calls from workstations, assigns vehicles, manages right of way and load delivery and logs activity.
FEATURES
- Coils up to 20 t
- ANT laser navigation
- Front and rear laser scanners
- side bumpers
- Opportunity charging
- Wi-Fi missions
- 9,500 x 1,610 mm
- 48 V
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 9.5 m × W 1.61 m |
|---|---|
| Payload | 20000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor paper and tissue mills |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 9.5 m × W 1.61 m |
|---|---|
| Payload | 20000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor paper and tissue mills |

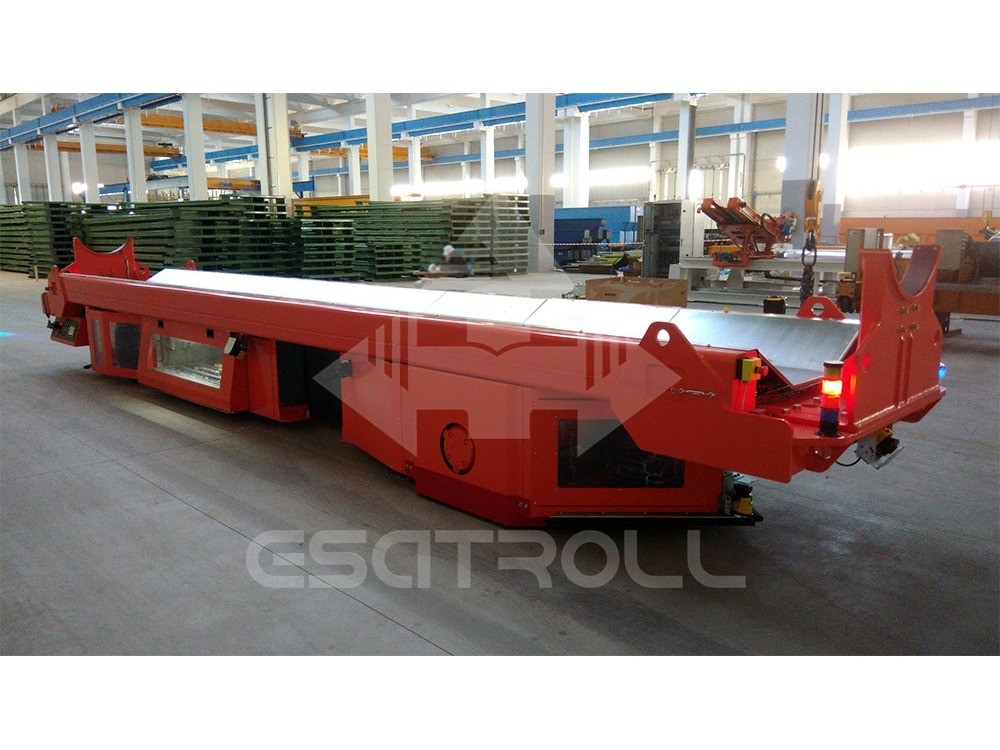

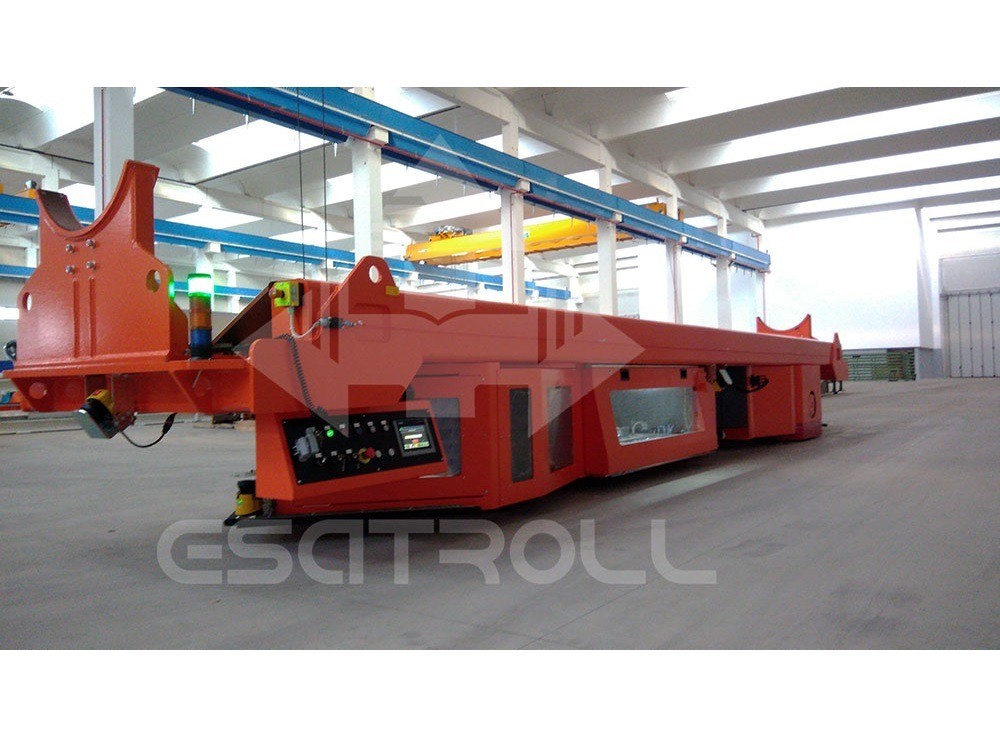

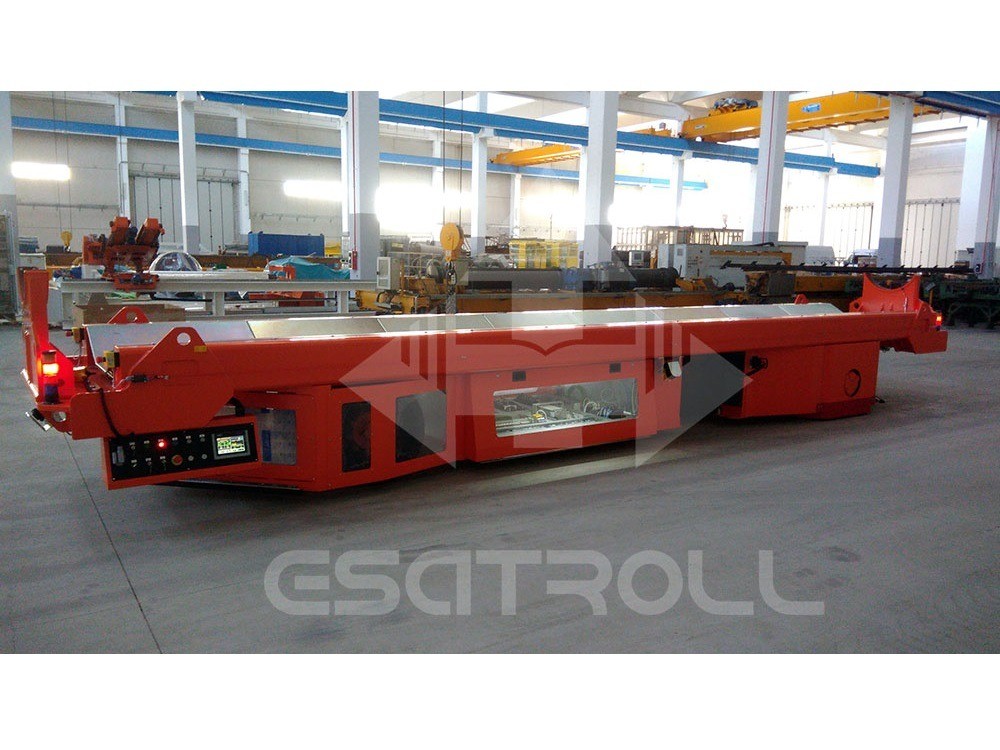

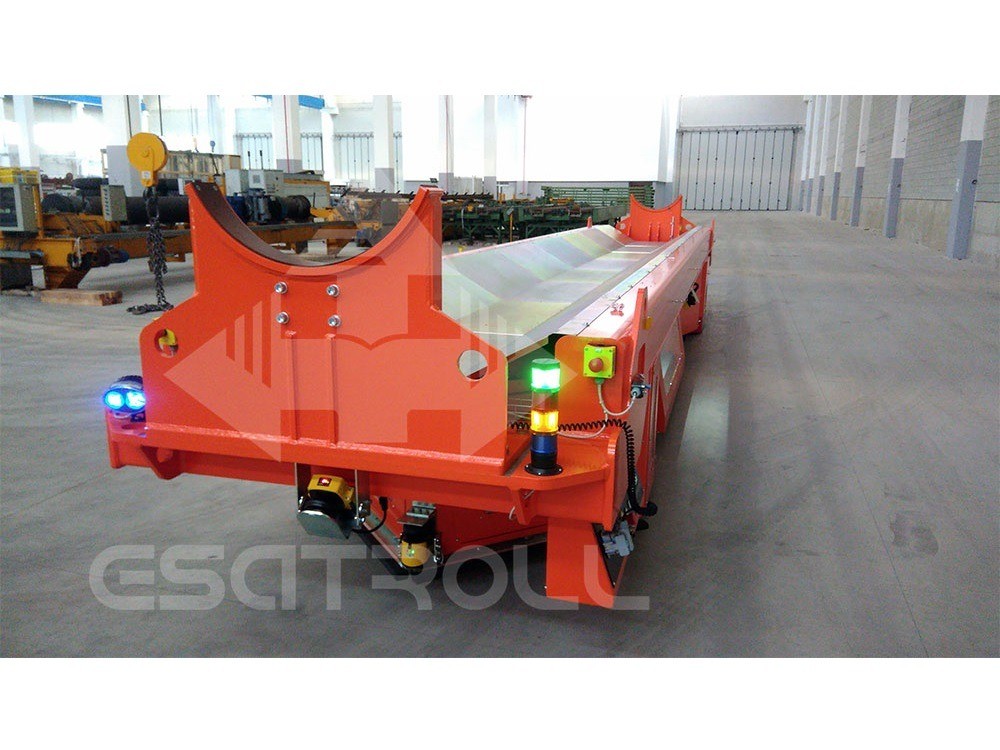

Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Heavy Roll Jumbo?
Heavy Roll Jumbo is a latest-generation LGV for paper and tissue coils that handles up to 20 tonnes in total. It uses ANT laser navigation, which takes any fixed element of the surroundings as a reference so installation is quick, with laser scanners and bumpers for safety, opportunity charging and missions received ov…
Who makes the Heavy Roll Jumbo?
The Heavy Roll Jumbo is made by Esatroll, a robotics company based in Switzerland.
How much does the Heavy Roll Jumbo cost?
Esatroll has not publicly announced pricing for the Heavy Roll Jumbo. You can enquire through RobotAIGeek for current pricing.
What is the Heavy Roll Jumbo used for?
The Heavy Roll Jumbo is designed for material-handling, transport, and laser-guided vehicle that moves paper and tissue coils up to 20 tonnes. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Heavy Roll Jumbo?
The Heavy Roll Jumbo has a payload capacity of 20,000 kg.
