DESCRIPTION
X-300 Explorer is an Industrial-Robot from Graal Tech. It is built for Surveying, Inspection. Key figures: 25 kg, 720 min runtime.

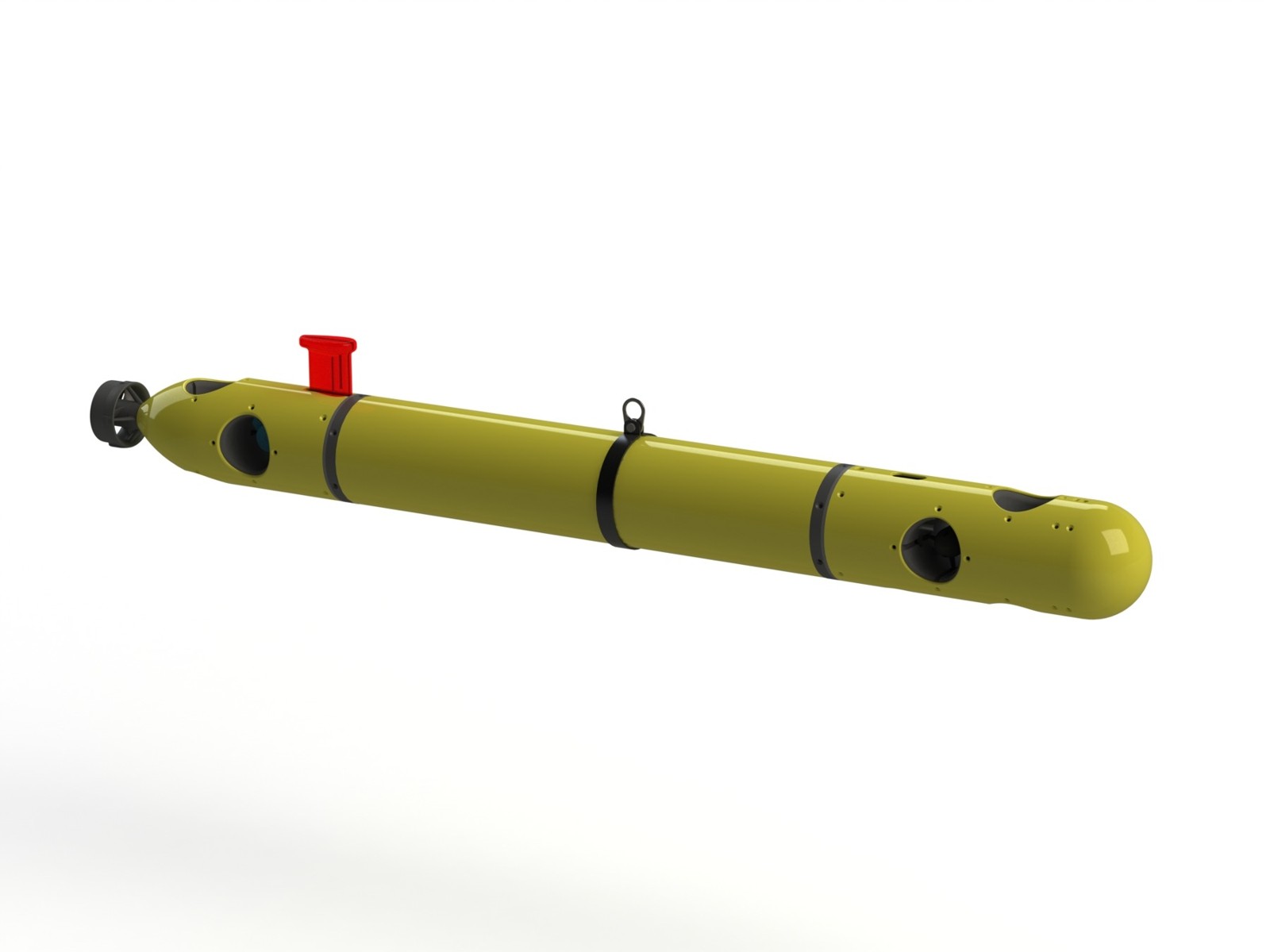

X-300 Explorer is a customisation of Graal Tech's X-300 AUV for underwater inspection and searching for objects on the seabed. It uses the short X-300 configuration, without the front variable-buoyancy cylinder, which gives up glider and profiler modes but makes the vehicle more manoeuvrable and easier to deploy and recover. An internal fibre-optic link connects the AUV's network to the control centre, giving real-time access to its CPU and Ethernet devices and letting the operator take over and fly it like an ROV; the tether is available up to 5 km long. The 2,100 mm, 25 kg vehicle is neutrally buoyant, reaches 4 knots and runs 12 hours at maximum speed on a 14.4 V, 1,200 Wh Li-ion battery. As standard it carries five cameras - one looking forward and four around the hull for a 360-degree view - plus a frontal sonar that can be tilted 90 degrees for 360-degree acoustic images inside pipes or tunnels, and a side-scan sonar, with acoustic localisation on demand.
FEATURES
- Short-configuration X-300 for inspection and seabed search
- Fibre-optic tether up to 5 km
- ROV-style manual control
- Real-time access to on-board cameras and sonar
- Five cameras for 360-degree view
- Frontal sonar (tiltable 90 degrees) and side-scan sonar
- 2,100 mm, 25 kg, neutrally buoyant
- Speed 4 knots
- 12 h at max speed
- Li-ion 14.4 V, 1,200 Wh
- GPS, depth meter, 3D inclinometer, INS
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 25 kg |
|---|---|
| Dimensions | L 2.1 m |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 7.42 km/h |
| Environment | Underwater around structures, pipes, tunnels and the seabed |
| Power | |
| Battery Life | 720 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 25 kg |
|---|---|
| Dimensions | L 2.1 m |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 7.42 km/h |
| Environment | Underwater around structures, pipes, tunnels and the seabed |
| Power | |
| Battery Life | 720 min |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the X-300 Explorer?
X-300 Explorer is a customisation of Graal Tech's X-300 AUV for underwater inspection and searching for objects on the seabed. It uses the short X-300 configuration, without the front variable-buoyancy cylinder, which gives up glider and profiler modes but makes the vehicle more manoeuvrable and easier to deploy and re…
Who makes the X-300 Explorer?
The X-300 Explorer is made by Graal Tech, a robotics company based in Italy.
How much does the X-300 Explorer cost?
Graal Tech has not publicly announced pricing for the X-300 Explorer. You can enquire through RobotAIGeek for current pricing.
What is the X-300 Explorer used for?
The X-300 Explorer is designed for surveying and inspection. It is used in defence, energy, and research settings.
How much does the X-300 Explorer weigh?
The X-300 Explorer weighs 25 kg.
How fast is the X-300 Explorer?
The X-300 Explorer can move at speeds of up to 7.42 km/h.
What is the battery life of the X-300 Explorer?
The X-300 Explorer runs for about 720 minutes on a charge.
