DESCRIPTION
MAG Crawler is an Industrial-Robot from Deep Trekker. It is built for Inspection. Key figures: 16.6 kg.

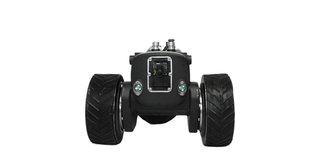

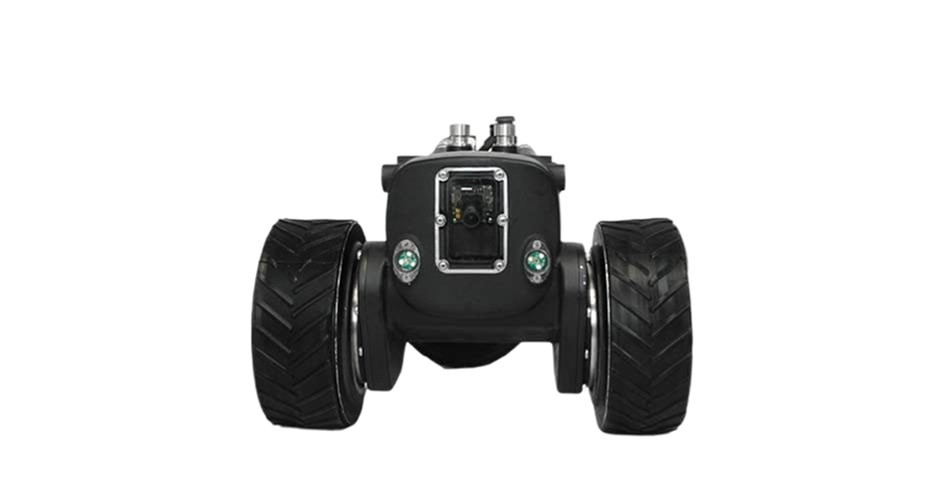

The MAG crawler is Deep Trekker's magnetic-wheeled utility crawler for inspecting steel surfaces that are hard to reach, such as ship hulls, vertical shafts and tanks. Rare-earth magnets in the wheels hold it to ferrous material so it can drive in any direction, including up walls and along hulls underwater, instead of setting up scaffolding, fighting currents or sending in confined-space specialists. It measures 710 x 406 x 228 mm, weighs 16.6 kg and is rated to 50 m, with a stainless steel, aluminium and acrylic build, two planetary gear motors on magnetically coupled final drives, a 360-degree turning radius and steerable, infinitely variable control with cruise control. Lithium batteries at 19.2 V power it, sensors report incline, roll and leaks, an enhanced 4K pan-and-tilt camera records the inspection, and attachments include thickness gauges, a pressure washer with elevating arm, a dozer blade and imaging sonar. A 6.2 mm tether up to 400 m with 150 kg breaking strength runs from an IP68 reel.
FEATURES
- Magnetic wheels: drives on ferrous surfaces in any direction
- 710 x 406 x 228 mm (L x W x H)
- 16.6 kg
- depth rating 50 m (164 ft)
- 2 planetary gear motors
- magnetically coupled final drives
- 360 deg turn radius
- Steerable, cruise control, infinitely variable forward/reverse
- 19.2 VDC lithium batteries
- Sensors: incline, roll, leak
- enhanced 4K pan/tilt camera

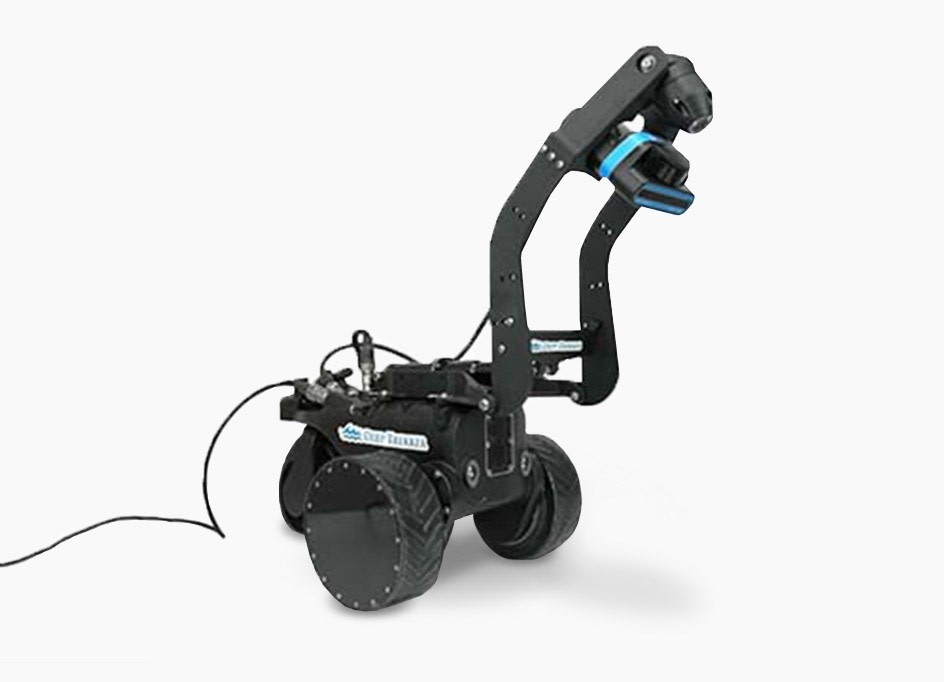

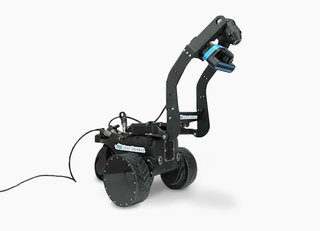

- Attachments: Cygnus thickness gauge, pressure washer with elevating arm, dozer, Oculus imaging sonar
- Tether 6.2 mm, 50-400 m, 150 kg breaking strength
- IP68 reel (75 m standard)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 16.6 kg |
|---|---|
| Dimensions | L 710 mm × W 406 mm × H 228 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Ship hulls, vertical shafts and other ferrous surfaces, underwater or dry (to 50 m) |
| Sensing & Compute | |
| Sensors | incline, roll, leak, 4K pan/tilt camera, optional imaging sonar |
| Connectivity | Tether 50-400 m |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 16.6 kg |
|---|---|
| Dimensions | L 710 mm × W 406 mm × H 228 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Ship hulls, vertical shafts and other ferrous surfaces, underwater or dry (to 50 m) |
| Sensing & Compute | |
| Sensors | incline, roll, leak, 4K pan/tilt camera, optional imaging sonar |
| Connectivity | Tether 50-400 m |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MAG Crawler?
The MAG crawler is Deep Trekker's magnetic-wheeled utility crawler for inspecting steel surfaces that are hard to reach, such as ship hulls, vertical shafts and tanks.
Who makes the MAG Crawler?
The MAG Crawler is made by Deep Trekker, a robotics company based in Canada.
How much does the MAG Crawler cost?
Deep Trekker has not publicly announced pricing for the MAG Crawler. You can enquire through RobotAIGeek for current pricing.
What is the MAG Crawler used for?
The MAG Crawler is designed for inspection. It is used in defence, energy, and government settings.
How much does the MAG Crawler weigh?
The MAG Crawler weighs 16.6 kg.
