DESCRIPTION
VEX AIM is an Educational-Robots from VEX Robotics. It is built for Education. Key figures: 0.2 kg.

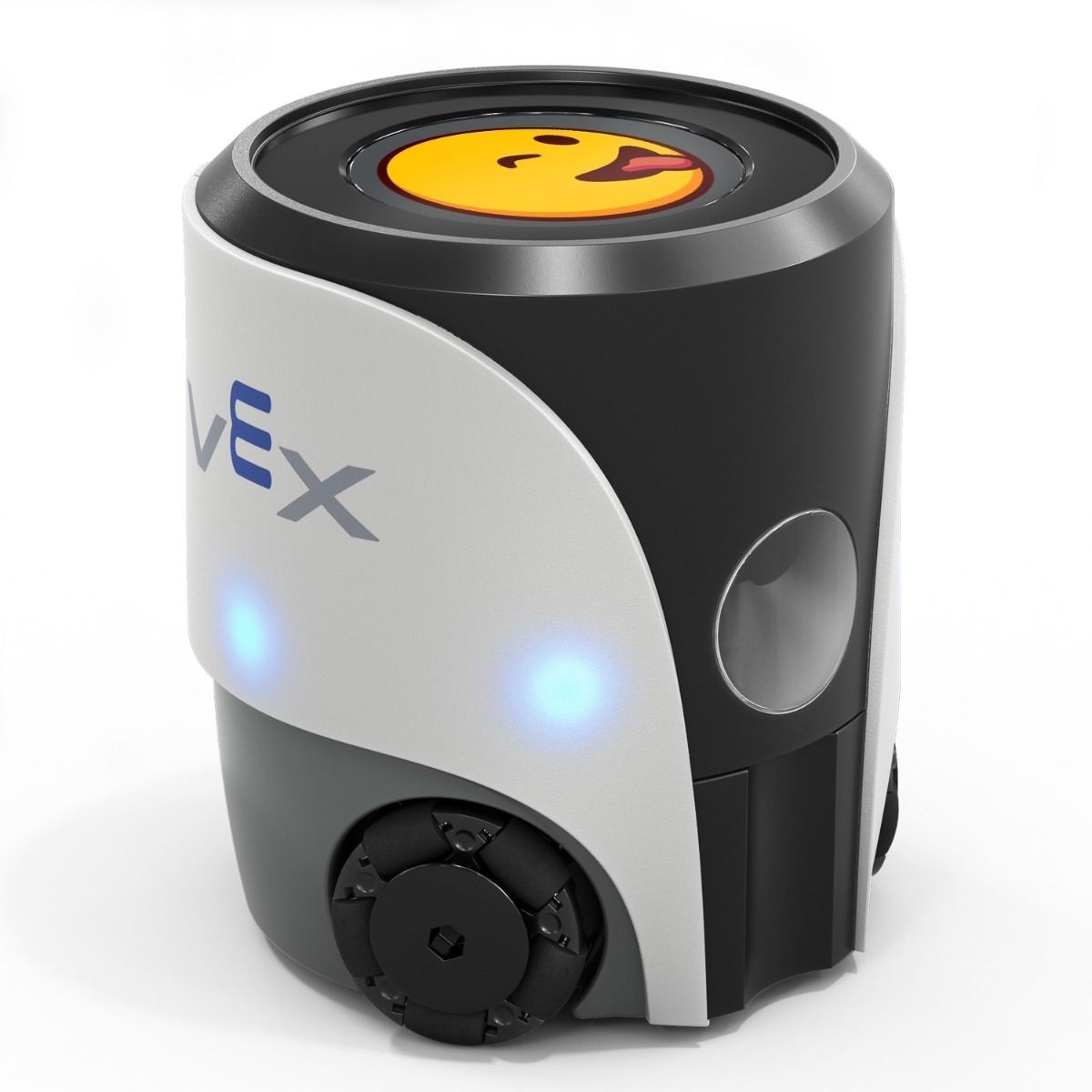

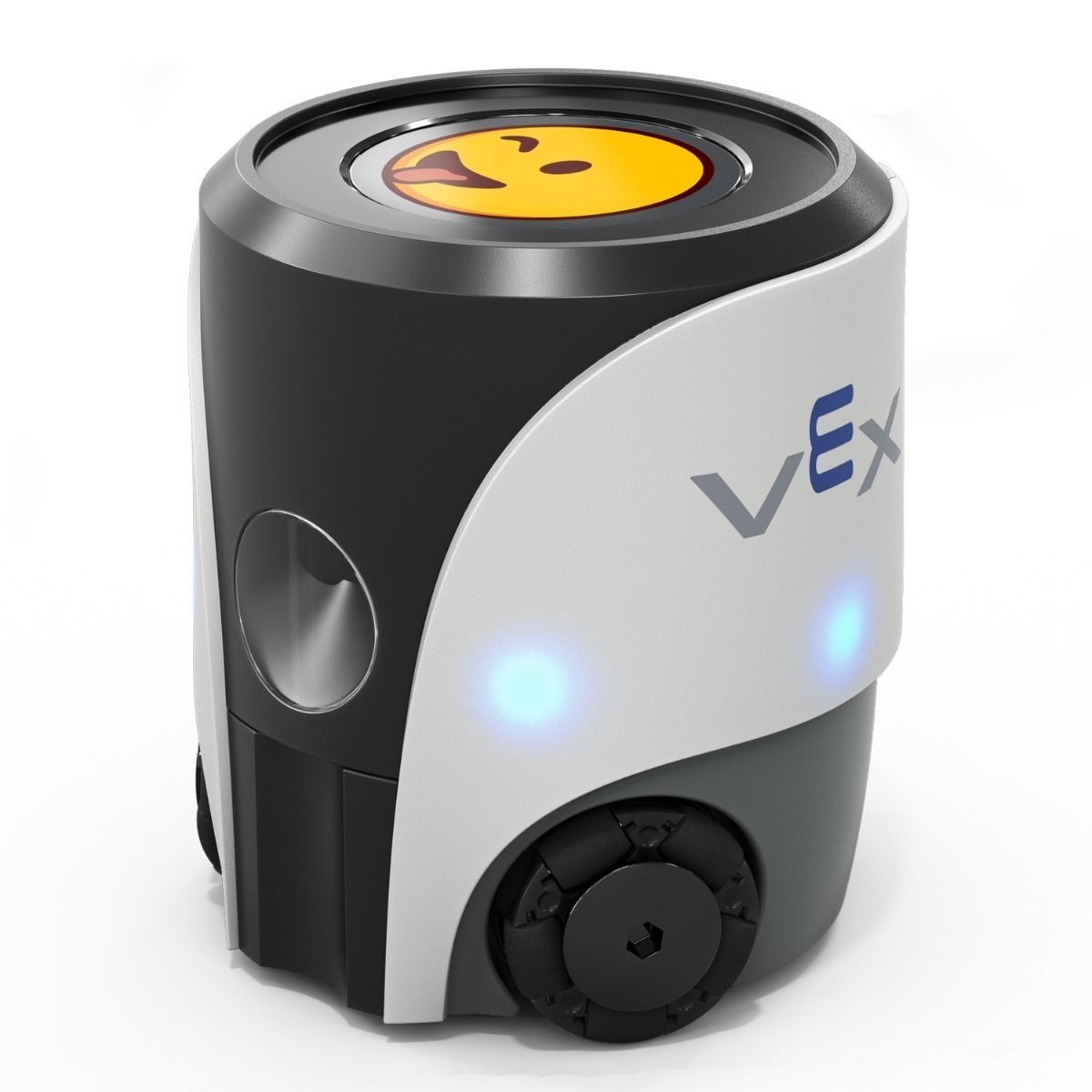

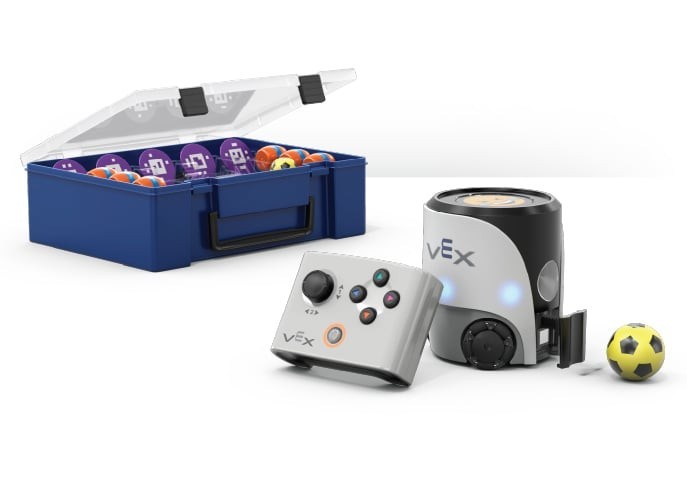

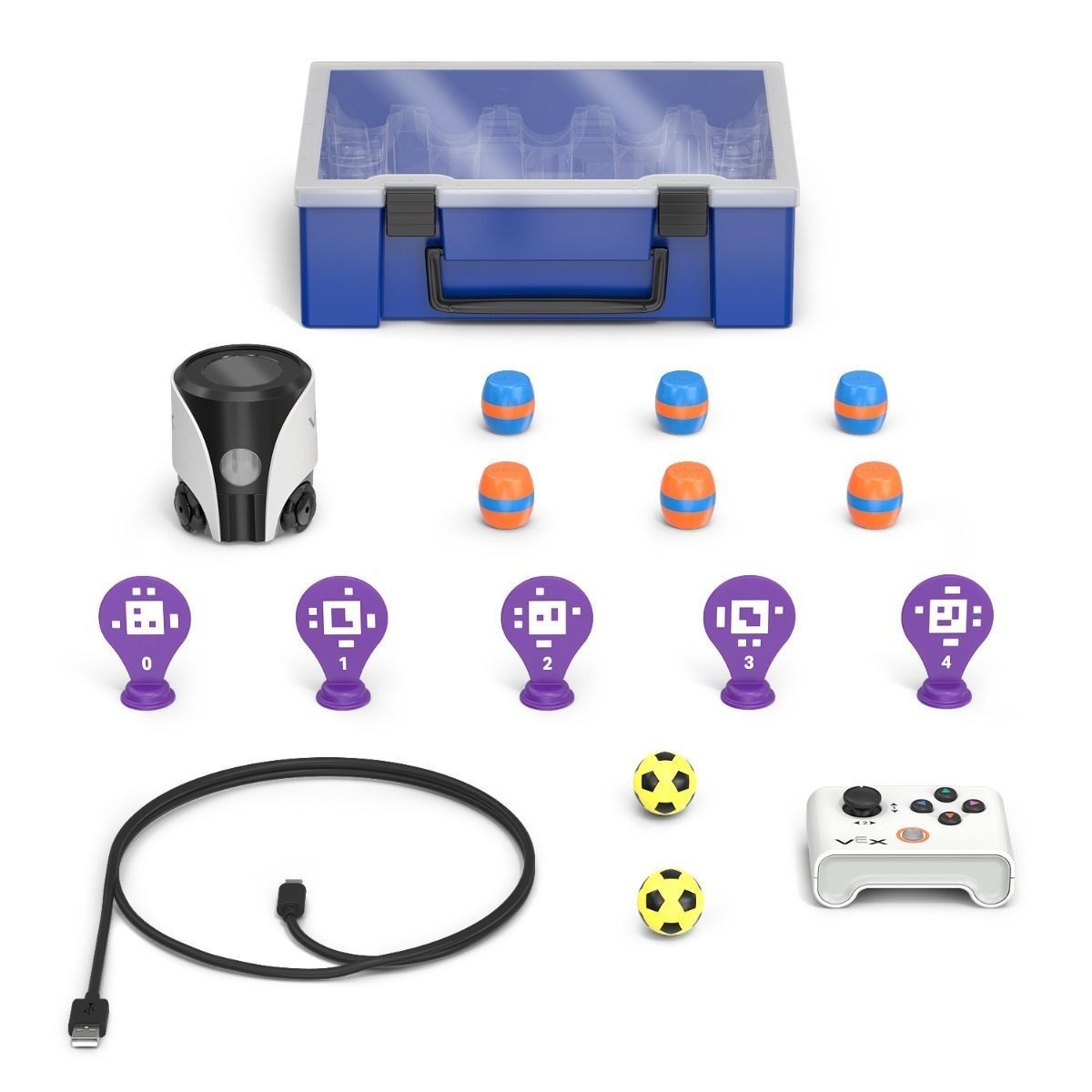

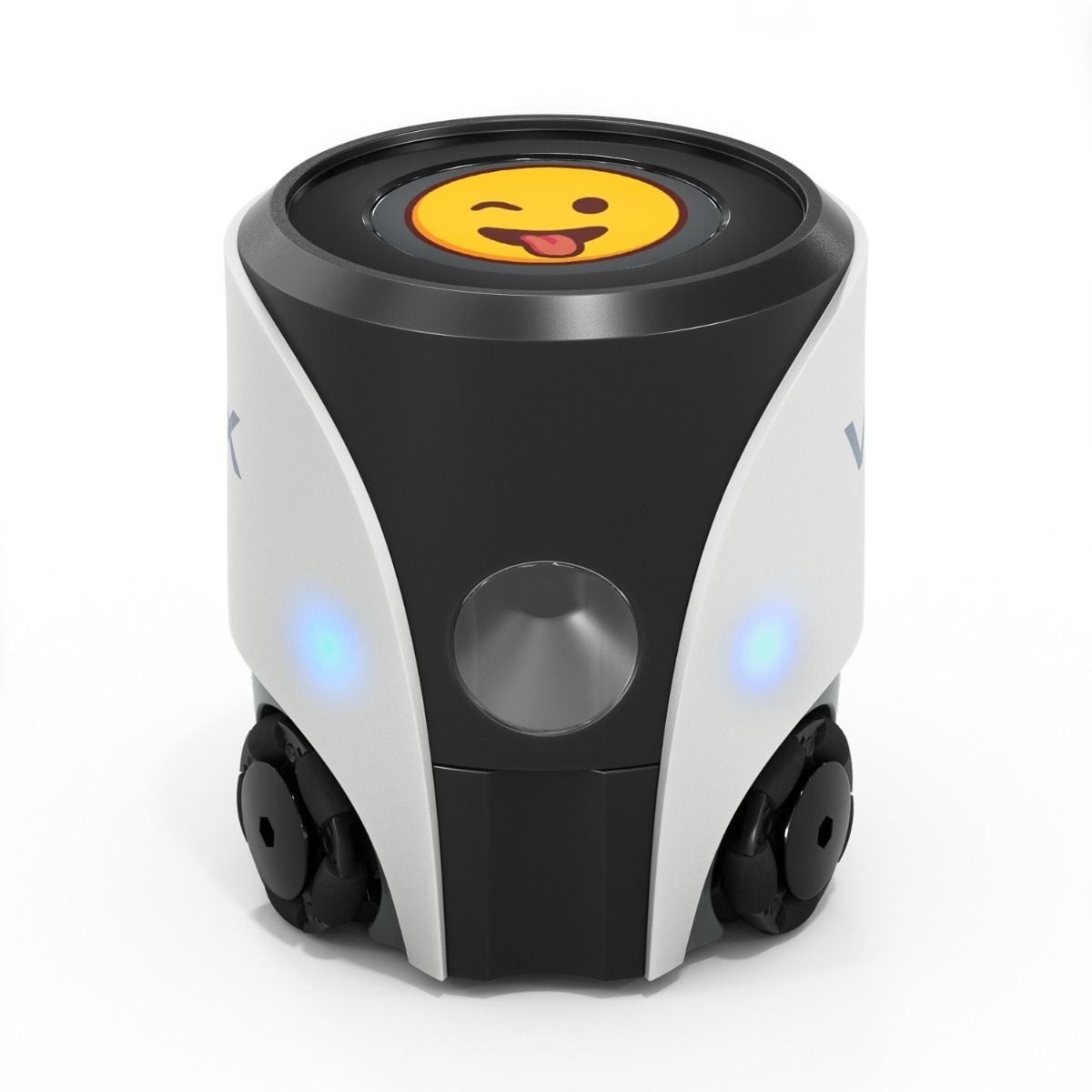

VEX AIM is a compact coding robot built to bring computer science off the screen in middle and high school classrooms. It is only 73 mm tall and 65 mm across and weighs 156 g, yet it has an omnidirectional drive that moves in any direction, a colour touch screen that shows menus, sensor data and 36 emojis, programmable LED lights and a speaker. An AI Vision Sensor detects colours, the included sports balls and barrels, and AprilTags, while a gyro, accelerometer and wheel encoders give precise navigation. A kicker lets AIM pick up and place barrels and catch and kick balls, and robots talk to each other over Bluetooth. Students drive it with the included handheld controller or code it in VEXcode with blocks, Switch or Python, or in Visual Studio Code, downloading programs over Bluetooth or USB; both robot and controller use USB-rechargeable lithium batteries.
FEATURES
- Height 73 mm, diameter 65 mm, weight 156 g
- Omnidirectional drive with omni wheels
- AI Vision Sensor detects colours, balls, barrels and AprilTags
- Gyro, accelerometer and wheel encoders for precise navigation
- Kicker to pick up / place barrels and catch / kick balls
- Colour touch screen with 36 emojis
- programmable LEDs
- speaker
- Handheld One Stick controller included
- robot-to-robot Bluetooth communication
- VEXcode Blocks, Switch and Python
- Visual Studio Code extension
- USB-rechargeable lithium battery
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 0.156 kg |
|---|---|
| Dimensions | L 65 mm × W 65 mm × H 73 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Classrooms, STEM labs and robotics competitions |
| Power | |
| Battery Life | USB-rechargeable internal lithium battery |
| Charging Type | USB |
| Sensing & Compute | |
| Sensors | AI Vision Sensor, gyro, accelerometer, wheel encoders |
| Connectivity | Bluetooth; USB |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 0.156 kg |
|---|---|
| Dimensions | L 65 mm × W 65 mm × H 73 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Classrooms, STEM labs and robotics competitions |
| Power | |
| Battery Life | USB-rechargeable internal lithium battery |
| Charging Type | USB |
| Sensing & Compute | |
| Sensors | AI Vision Sensor, gyro, accelerometer, wheel encoders |
| Connectivity | Bluetooth; USB |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VEX AIM?
VEX AIM is a compact coding robot built to bring computer science off the screen in middle and high school classrooms. It is only 73 mm tall and 65 mm across and weighs 156 g, yet it has an omnidirectional drive that moves in any direction, a colour touch screen that shows menus, sensor data and 36 emojis, programmable…
Who makes the VEX AIM?
The VEX AIM is made by VEX Robotics, a robotics company based in United States.
How much does the VEX AIM cost?
VEX Robotics has not publicly announced pricing for the VEX AIM. You can enquire through RobotAIGeek for current pricing.
What is the VEX AIM used for?
The VEX AIM is designed for education. It is used in education settings.
How much does the VEX AIM weigh?
The VEX AIM weighs 0.16 kg.
