DESCRIPTION
Mecabot Pro is an Educational-Robots from Roboworks. It is built for Development, Navigation, Research. Key figures: 480 min runtime, price $6,918–$10,774.

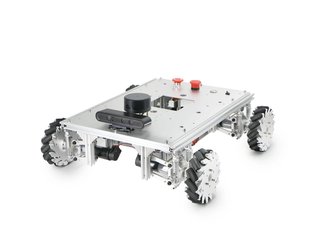

Mecabot Pro is Roboworks' mecanum-wheel AMR platform for robotics education, R&D and rapid prototyping. Four 152 mm mecanum wheels give omnidirectional movement, and the metal chassis carries a Jetson Orin Nano or NX ROS computer, an LS LiDAR, an Orbbec depth camera and an STM32 motor, power and IMU controller. It carries up to about 20-22 kg, reaches 2.33 m/s, climbs 30-degree slopes and runs up to eight hours unloaded (6.5 hours loaded) on a swappable 24 V LFP Power Mag battery. AC versions add the Auto Charge dock and TS versions a touchscreen. It ships in a flight case with ROS 2 Humble and MiROS for US$6,918-10,774.
FEATURES
- Omnidirectional 152 mm mecanum wheels on a metal chassis
- Jetson Orin Nano or Orin NX ROS computer
- LS M10P LiDAR (30 m)
- Orbbec depth camera
- STM32 controller
- Max payload 22 kg (20 kg in page copy)
- max speed 2.33 m/s
- climbs up to 30 degrees
- 24 V 6,100 mAh LFP battery: 8 h unloaded, 6.5 h loaded
- MD36N 35 W brushed DC motors, 1:27 reduction

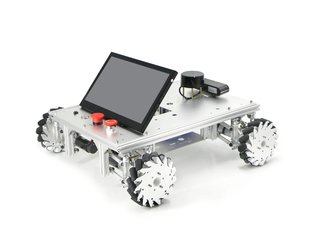

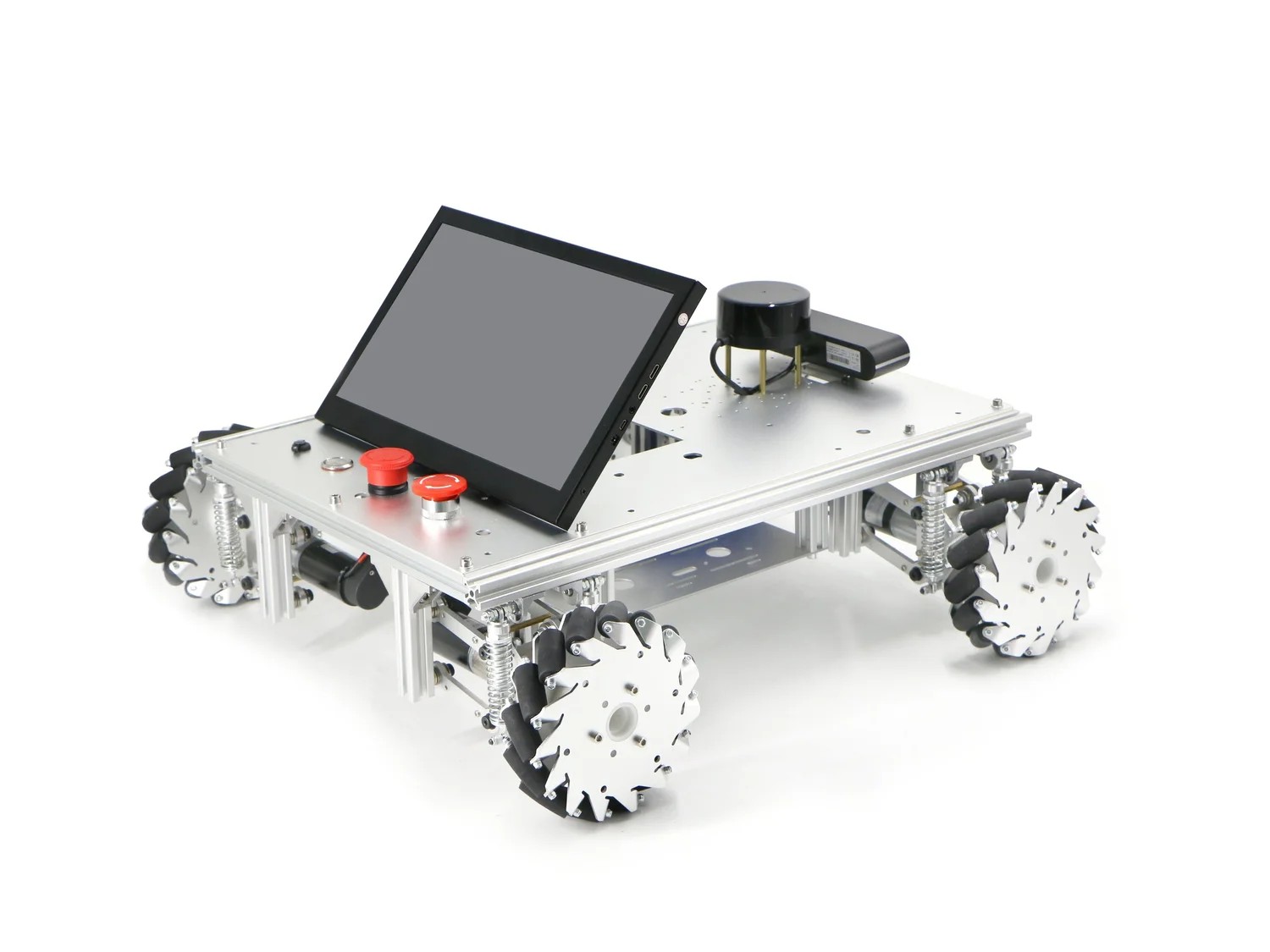

- Models: standard, AC (Auto Charge) and TS (touchscreen)
- AC/TS include a radio remote
- flight case
- Pre-loaded Ubuntu 22.04, ROS 2 Humble and MiROS cloud-based visual ROS DevKit
- Power Mag magnetic LFP battery for quick swaps
- optional Auto Charge docking station
- I/O: CAN, serial, USB, HDMI
- iOS/Android remote-control apps
- STP and URDF files provided
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Speed | 8.4 km/h |
| Environment | Indoor labs and service environments |
| Actuators | MD36N 35 W brushed DC motors, mecanum wheels |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LS M10P LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Speed | 8.4 km/h |
| Environment | Indoor labs and service environments |
| Actuators | MD36N 35 W brushed DC motors, mecanum wheels |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LS M10P LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Mecabot Pro?
Mecabot Pro is Roboworks' mecanum-wheel AMR platform for robotics education, R&D and rapid prototyping. Four 152 mm mecanum wheels give omnidirectional movement, and the metal chassis carries a Jetson Orin Nano or NX ROS computer, an LS LiDAR, an Orbbec depth camera and an STM32 motor, power and IMU controller.
Who makes the Mecabot Pro?
The Mecabot Pro is made by Roboworks, a robotics company based in Australia.
How much does the Mecabot Pro cost?
Pricing for the Mecabot Pro ranges from $6,918 to $10,774.
What is the Mecabot Pro used for?
The Mecabot Pro is designed for development, navigation, research, and education. It is used in research, education, and warehouse & logistics settings.
How fast is the Mecabot Pro?
The Mecabot Pro can move at speeds of up to 8.4 km/h.
What is the battery life of the Mecabot Pro?
The Mecabot Pro runs for about 480 minutes on a charge.
