DESCRIPTION
Rosbot Pro is an Educational-Robots from Roboworks. It is built for Development, Navigation, Research. Key figures: 19.5 kg, 270 min runtime, price $8,846–$12,703.
Rosbot Pro is Roboworks' four-wheel AMR platform for field and service robot projects indoors and outdoors. Solid 180 mm rubber wheels and 100 W motors carry up to 20-22 kg at up to 2.33 m/s and climb 30-degree slopes, and the chassis carries a Jetson Orin Nano or NX ROS computer, an LS LiDAR and an Orbbec depth camera. It measures 766 x 671 x 319 mm and weighs 19.5 kg. A swappable 24 V LFP Power Mag battery gives 4.5 hours unloaded or three hours loaded, with AC (Auto Charge), HD (heavy duty) and TS (touchscreen) versions available. It is controlled from a mobile app or radio remote and ships with ROS 2 Humble and MiROS for US$8,846-12,703.
FEATURES
- Indoor/outdoor AMR platform with solid 180 mm rubber wheels
- 766 x 671 x 319 mm
- 19.54 kg
- Max payload 22 kg (20 kg in page copy)
- max speed 2.33 m/s
- climbs up to 30 degrees
- Jetson Orin Nano or Orin NX ROS computer
- LS M10P LiDAR (30 m)
- Orbbec depth camera
- MD36 100 W brushed DC motors, 1:18 reduction
- 24 V 6,000 mAh LFP battery: 4.5 h unloaded, 3 h with load

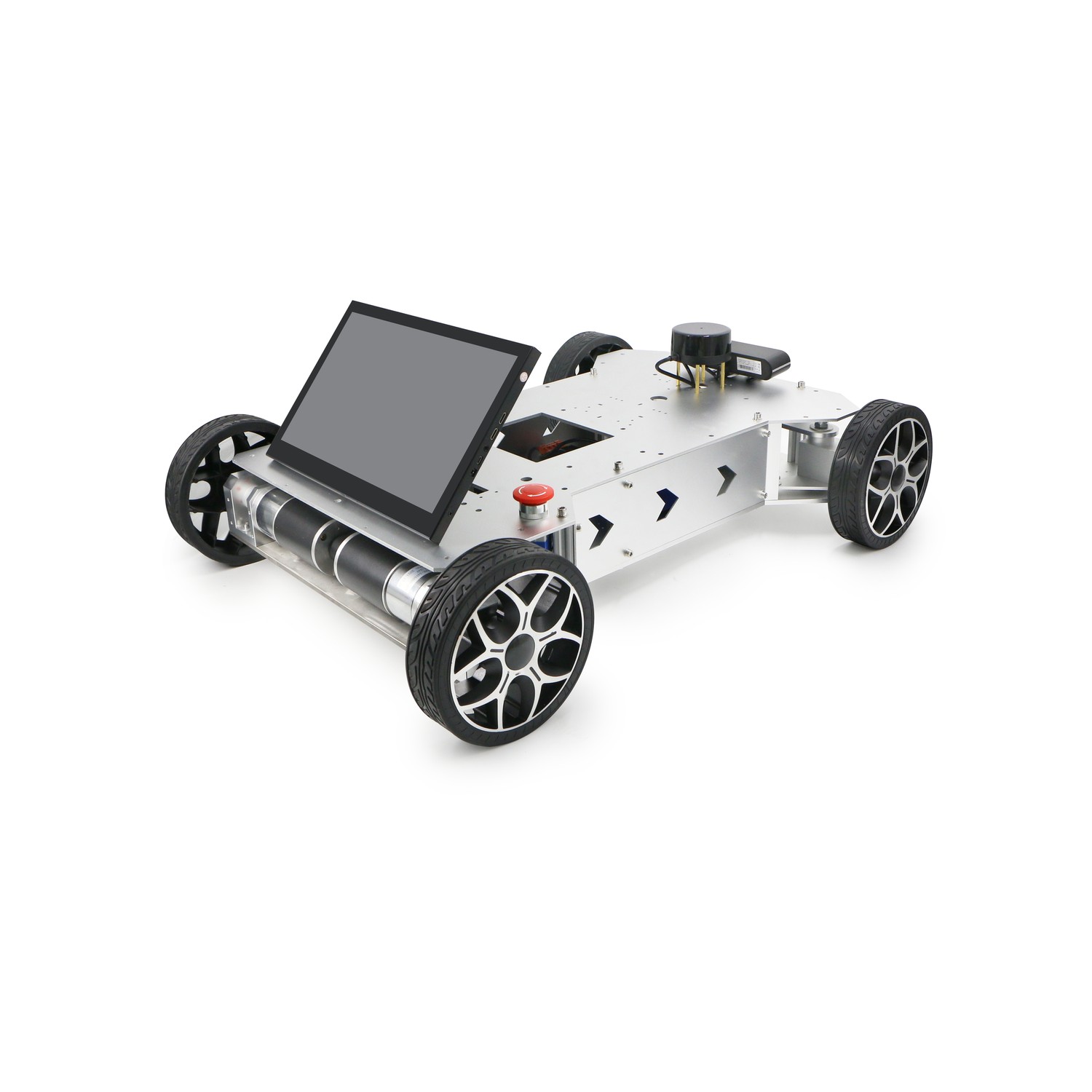

- Models: standard, AC (Auto Charge), HD (heavy duty) and TS (touchscreen)
- remote-control app
- flight case
- Pre-loaded Ubuntu 22.04, ROS 2 Humble and MiROS cloud-based visual ROS DevKit
- Power Mag magnetic LFP battery for quick swaps
- optional Auto Charge docking station
- I/O: CAN, serial, USB, HDMI
- iOS/Android remote-control apps
- STP and URDF files provided
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 19.54 kg |
|---|---|
| Dimensions | L 766 mm × W 671 mm × H 319 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 8.4 km/h |
| Environment | Indoor and outdoor |
| Actuators | MD36 100 W brushed DC motors, 180 mm solid rubber wheels |
| Power | |
| Battery Life | 270 min |
| Sensing & Compute | |
| Sensors | LS M10P LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 19.54 kg |
|---|---|
| Dimensions | L 766 mm × W 671 mm × H 319 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 8.4 km/h |
| Environment | Indoor and outdoor |
| Actuators | MD36 100 W brushed DC motors, 180 mm solid rubber wheels |
| Power | |
| Battery Life | 270 min |
| Sensing & Compute | |
| Sensors | LS M10P LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Rosbot Pro?
Rosbot Pro is Roboworks' four-wheel AMR platform for field and service robot projects indoors and outdoors. Solid 180 mm rubber wheels and 100 W motors carry up to 20-22 kg at up to 2.33 m/s and climb 30-degree slopes, and the chassis carries a Jetson Orin Nano or NX ROS computer, an LS LiDAR and an Orbbec depth camera…
Who makes the Rosbot Pro?
The Rosbot Pro is made by Roboworks, a robotics company based in Australia.
How much does the Rosbot Pro cost?
Pricing for the Rosbot Pro ranges from $8,846 to $12,703.
What is the Rosbot Pro used for?
The Rosbot Pro is designed for development, navigation, research, and education. It is used in research, education, and warehouse & logistics settings.
How much does the Rosbot Pro weigh?
The Rosbot Pro weighs 19.54 kg.
How fast is the Rosbot Pro?
The Rosbot Pro can move at speeds of up to 8.4 km/h.
What is the battery life of the Rosbot Pro?
The Rosbot Pro runs for about 270 minutes on a charge.
