DESCRIPTION
Mecabot Plus is an Educational-Robots from Roboworks. It is built for Development, Navigation, Research. Key figures: 240 min runtime, price $8,346–$12,203.

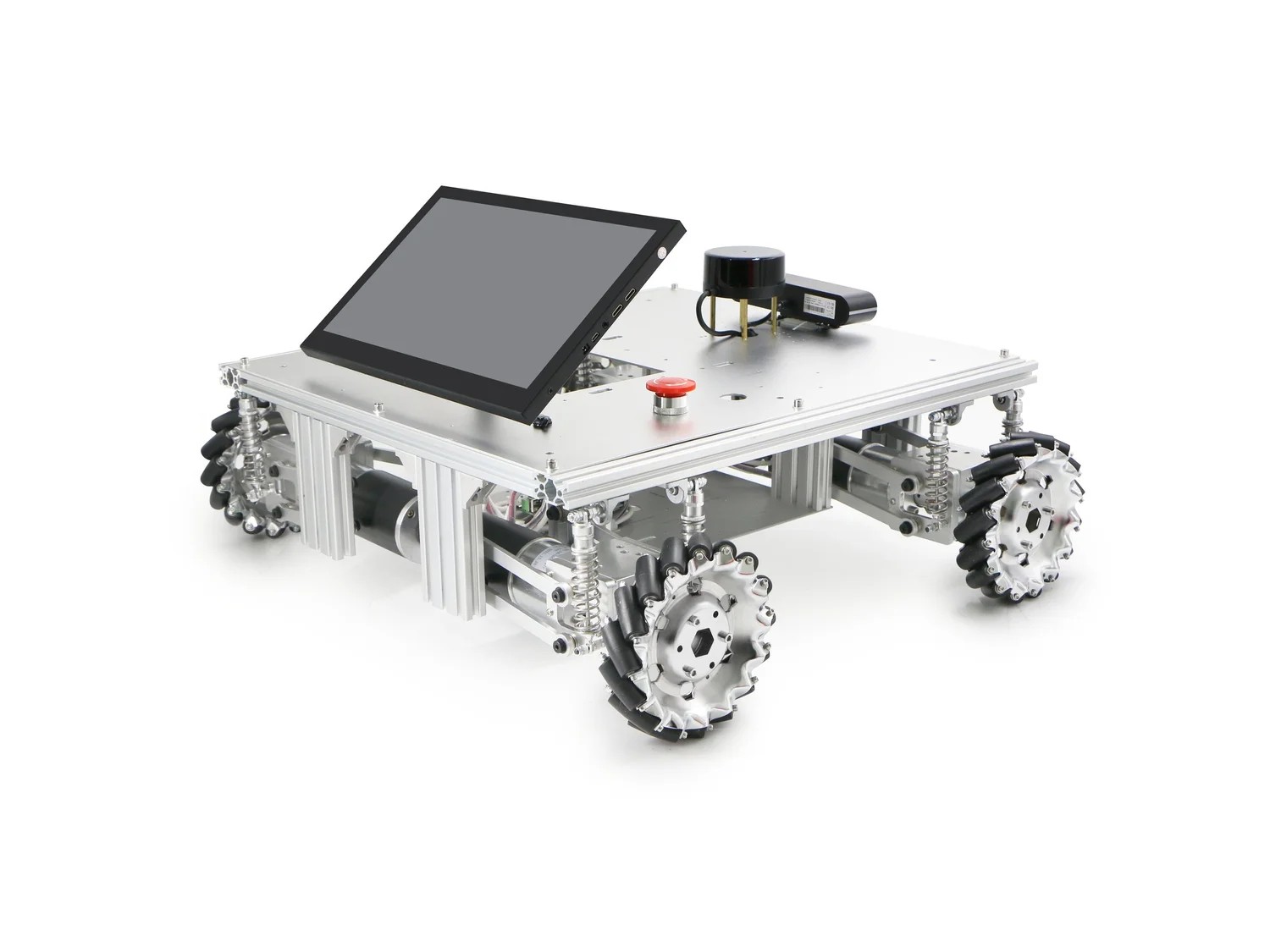

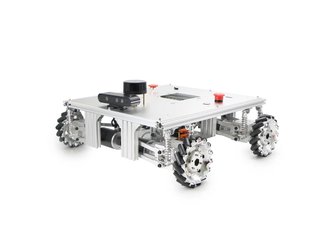

Mecabot Plus is Roboworks' heavier-duty mecanum-wheel AMR platform for building indoor service robots for factories, warehouses, hospitals, offices, hotels and restaurants. Four 152 mm mecanum wheels with independent suspension let it move in any direction in tight spaces, and it carries up to 60 kg. Like the rest of the range it has a Jetson Orin Nano or NX ROS computer, an LS LiDAR, an Orbbec depth camera and an STM32 controller, driven by 100 W brushed motors at up to 1.39 m/s. The swappable 24 V LFP battery gives about four hours unloaded and three loaded; AC versions add Auto Charge and TS versions a touchscreen. Prices run from US$8,346 to US$12,203.
FEATURES
- Indoor service-robot AMR platform with 152 mm mecanum wheels and independent suspension
- Max payload 60 kg
- max speed 1.39 m/s
- Jetson Orin Nano or Orin NX ROS computer
- LS LiDAR
- Orbbec depth camera
- STM32 controller
- MD60 100 W brushed DC motors, 1:18 reduction
- 24 V 6,100 mAh LFP battery: 4 h unloaded, 3 h loaded
- Models: standard, AC (Auto Charge) and TS (touchscreen)
- AC/TS include a radio remote
- Pre-loaded Ubuntu 22.04, ROS 2 Humble and MiROS cloud-based visual ROS DevKit
- Power Mag magnetic LFP battery for quick swaps
- optional Auto Charge docking station
- I/O: CAN, serial, USB, HDMI
- iOS/Android remote-control apps
- STP and URDF files provided
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Speed | 5 km/h |
| Environment | Indoor labs and service environments |
| Actuators | MD60 100 W brushed DC motors, mecanum wheels, independent suspension |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | LS LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Speed | 5 km/h |
| Environment | Indoor labs and service environments |
| Actuators | MD60 100 W brushed DC motors, mecanum wheels, independent suspension |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | LS LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Mecabot Plus?
Mecabot Plus is Roboworks' heavier-duty mecanum-wheel AMR platform for building indoor service robots for factories, warehouses, hospitals, offices, hotels and restaurants. Four 152 mm mecanum wheels with independent suspension let it move in any direction in tight spaces, and it carries up to 60 kg.
Who makes the Mecabot Plus?
The Mecabot Plus is made by Roboworks, a robotics company based in Australia.
How much does the Mecabot Plus cost?
Pricing for the Mecabot Plus ranges from $8,346 to $12,203.
What is the Mecabot Plus used for?
The Mecabot Plus is designed for development, navigation, research, and education. It is used in research, education, and warehouse & logistics settings.
How fast is the Mecabot Plus?
The Mecabot Plus can move at speeds of up to 5 km/h.
What is the battery life of the Mecabot Plus?
The Mecabot Plus runs for about 240 minutes on a charge.
