DESCRIPTION
Mecabot 2 is an Educational-Robots from Roboworks. It is built for Development, Navigation, Research. Key figures: 6.1 kg, 480 min runtime, price $3,639–$6,937.

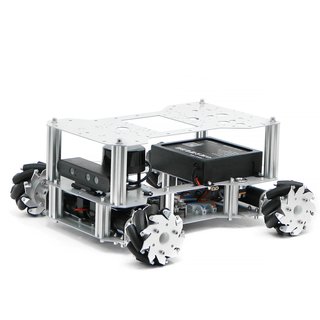

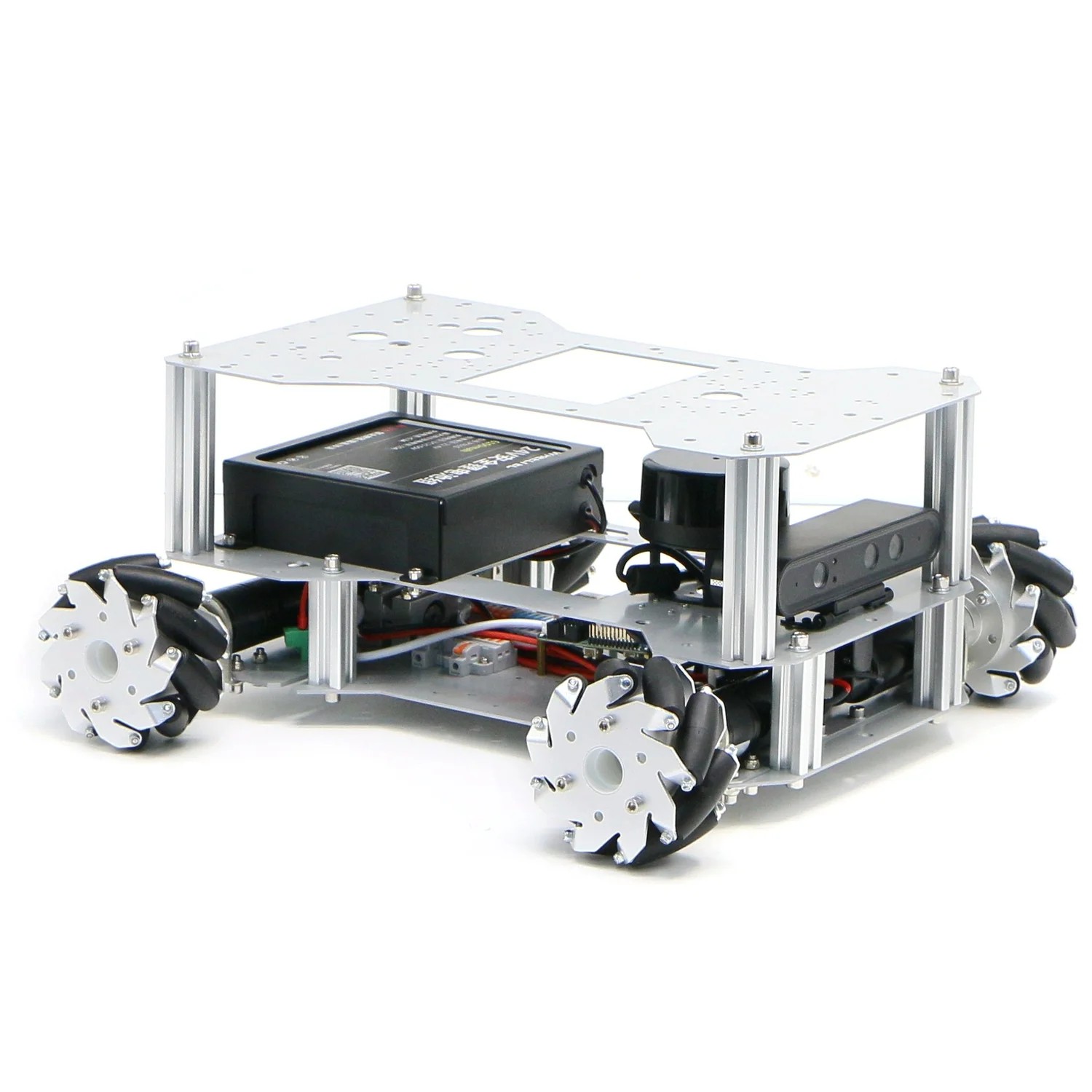

Mecabot 2 is Roboworks' entry ROS robot for education and research, a compact double-deck metal chassis on four 100 mm mecanum wheels that can drive sideways and in any direction indoors. It carries an NVIDIA Jetson Orin Nano or NX ROS computer, an LS M10P LiDAR with a 30 m range and an Orbbec depth camera, so students and developers can work on mapping, navigation and vision out of the box. The 413 x 405 x 191 mm, 6.1 kg robot carries up to 15 kg at speeds up to 1.2 m/s and runs about eight hours unloaded on a 24 V 6.1 Ah battery. The double deck adds mounting space, the 2S/AC versions add an automatic charging dock, and it ships with ROS 2 Humble, Roboworks' MiROS visual DevKit and tutorials. Prices run from US$3,639 to US$6,937 depending on computer and charging options.
FEATURES
- ROS education and research robot with omnidirectional 100 mm mecanum wheels
- Jetson Orin Nano or Orin NX ROS computer
- LS M10P LiDAR (30 m)
- Orbbec depth camera
- Double-deck metal chassis for extra capacity
- 413 x 405 x 191.3 mm
- 6.1 kg
- Max payload 15 kg
- max speed 1.2 m/s
- 24 V 6,100 mAh battery: 8 h unloaded, 6.5 h with 3 kg
- MD36N 35 W brushed DC motors, 1:27 reduction
- Models: Mecabot 2 and Mecabot 2 AC (Auto Charge), each with Orin Nano or Orin NX
- Pre-loaded Ubuntu 22.04, ROS 2 Humble and MiROS cloud-based visual ROS DevKit
- Power Mag magnetic LFP battery for quick swaps
- optional Auto Charge docking station
- I/O: CAN, serial, USB, HDMI
- iOS/Android remote-control apps
- STP and URDF files provided
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6.1 kg |
|---|---|
| Dimensions | L 413 mm × W 405 mm × H 191 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.3 km/h |
| Environment | Indoor labs and service environments |
| Actuators | 4x MD36N 35 W brushed DC motors, mecanum wheels |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LS M10P LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6.1 kg |
|---|---|
| Dimensions | L 413 mm × W 405 mm × H 191 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.3 km/h |
| Environment | Indoor labs and service environments |
| Actuators | 4x MD36N 35 W brushed DC motors, mecanum wheels |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LS M10P LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Mecabot 2?
Mecabot 2 is Roboworks' entry ROS robot for education and research, a compact double-deck metal chassis on four 100 mm mecanum wheels that can drive sideways and in any direction indoors.
Who makes the Mecabot 2?
The Mecabot 2 is made by Roboworks, a robotics company based in Australia.
How much does the Mecabot 2 cost?
Pricing for the Mecabot 2 ranges from $3,639 to $6,937.
What is the Mecabot 2 used for?
The Mecabot 2 is designed for development, navigation, research, and education. It is used in research, education, and warehouse & logistics settings.
How much does the Mecabot 2 weigh?
The Mecabot 2 weighs 6.1 kg.
How fast is the Mecabot 2?
The Mecabot 2 can move at speeds of up to 4.3 km/h.
What is the battery life of the Mecabot 2?
The Mecabot 2 runs for about 480 minutes on a charge.
