DESCRIPTION
Mecabot X is an Educational-Robots from Roboworks. It is built for Development, Navigation, Research. Key figures: 240 min runtime, price $8,275–$12,131.

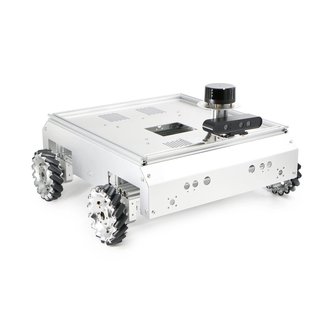

Mecabot X is the enclosed version of Roboworks' Mecabot Plus - a 60 kg-payload mecanum-wheel AMR in a full metal enclosure, intended as a ready-to-ship base for indoor service robots in factories, warehouses, hospitals, transport hubs, offices, hotels and restaurants. Four 152 mm mecanum wheels with independent suspension and 100 W motors move it in any direction at up to 1.39 m/s. Inside are a Jetson Orin Nano or NX ROS computer, LiDAR, depth camera and STM32 controller, powered by a swappable 24 V LFP battery good for about four hours. XAC versions add Auto Charge and a radio remote. Prices run from US$8,275 to US$12,131.
FEATURES
- Full metallic enclosure
- ready-to-ship base for indoor service robots
- 152 mm mecanum wheels with independent suspension
- omnidirectional
- Max payload 60 kg
- max speed 1.39 m/s
- Jetson Orin Nano or Orin NX ROS computer
- LS LiDAR
- Orbbec depth camera
- STM32 controller
- MD60 100 W brushed DC motors, 1:18 reduction
- 24 V 6,100 mAh LFP battery: 4 h unloaded, 3 h loaded
- Models: Mecabot X and Mecabot XAC (Auto Charge, with radio remote)
- Pre-loaded Ubuntu 22.04, ROS 2 Humble and MiROS cloud-based visual ROS DevKit
- Power Mag magnetic LFP battery for quick swaps
- optional Auto Charge docking station
- I/O: CAN, serial, USB, HDMI
- iOS/Android remote-control apps
- STP and URDF files provided
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Speed | 5 km/h |
| Environment | Indoor labs and service environments |
| Actuators | MD60 100 W brushed DC motors, mecanum wheels, independent suspension |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | LS LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Speed | 5 km/h |
| Environment | Indoor labs and service environments |
| Actuators | MD60 100 W brushed DC motors, mecanum wheels, independent suspension |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | LS LiDAR, Orbbec depth camera, IMU |
| Software / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Mecabot X?
Mecabot X is the enclosed version of Roboworks' Mecabot Plus - a 60 kg-payload mecanum-wheel AMR in a full metal enclosure, intended as a ready-to-ship base for indoor service robots in factories, warehouses, hospitals, transport hubs, offices, hotels and restaurants.
Who makes the Mecabot X?
The Mecabot X is made by Roboworks, a robotics company based in Australia.
How much does the Mecabot X cost?
Pricing for the Mecabot X ranges from $8,275 to $12,131.
What is the Mecabot X used for?
The Mecabot X is designed for development, navigation, research, and education. It is used in research, education, and warehouse & logistics settings.
How fast is the Mecabot X?
The Mecabot X can move at speeds of up to 5 km/h.
What is the battery life of the Mecabot X?
The Mecabot X runs for about 240 minutes on a charge.
