DESCRIPTION

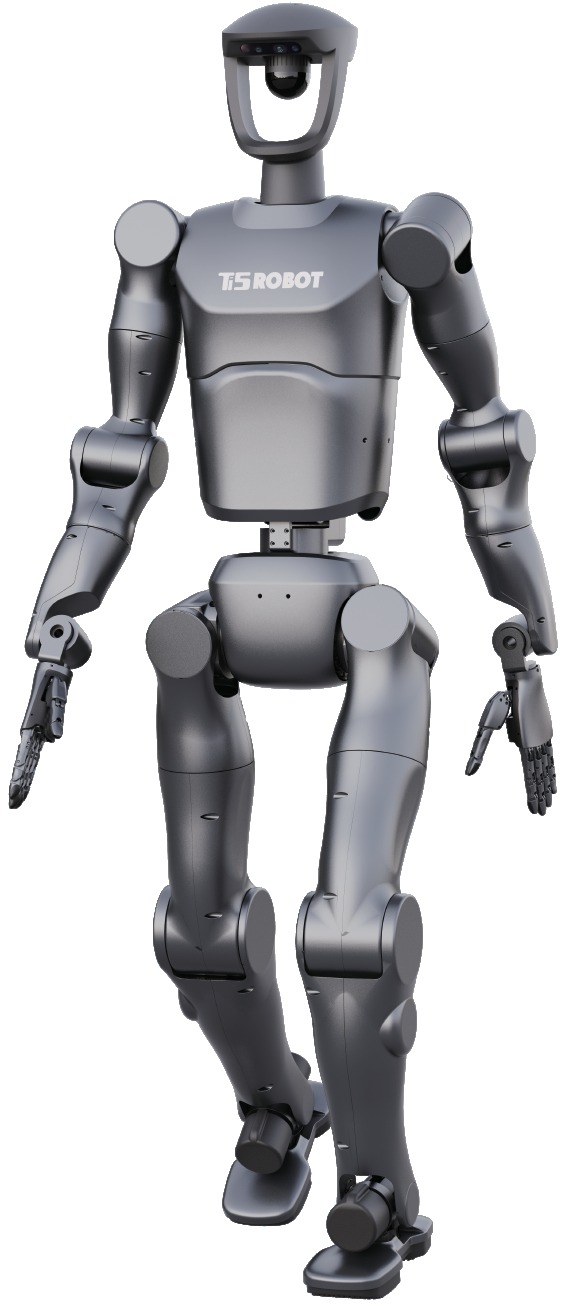

The Ti5 T170A V2 is the second generation of the company's full-size bipedal humanoid, standing 1.75 m and weighing 58 kg with a 1.5 m arm span and 42 or 44 active degrees of freedom depending on build. Joints run harmonic reducers on CAN/EtherCAT with 18-bit encoders, each arm carries 1.5 kg, and end-effector repeatability stays within 0.3 mm. A 48 V 10 Ah battery powers the platform, a high-precision posture sensor and an Intel RealSense D435 depth camera handle perception, and a Jetson AGX Orin 64GB developer kit runs the stack with a dual-arm API. The flagship trim adds six-DoF high-precision dexterous hands, twin six-axis force sensors and optional obstacle avoidance.
FEATURES
- 42-44 active DoF
- harmonic joints on CAN/EtherCAT with 18-bit encoders
- aluminium structure with aluminium and ABS exterior
- high-precision posture sensor
- RealSense D435 depth vision
- Jetson AGX Orin 64GB
- dual-arm API
- flagship adds 6-DoF high-precision dexterous hands, 2x six-axis force sensors and optional obstacle avoidance.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 58 kg |
|---|---|
| Dimensions | H 1.75 m |
| Payload | 1.5 kg |
| Reach | 1.5 m |
| Repeatability | ±0.3 mm |
| Materials | aluminium alloy structure, aluminium alloy and ABS exterior |
| Mobility | |
| Movement Type | Bipedal |
| Degrees of Freedom | 44 |
| Actuators | Harmonic-reducer joints, CAN/EtherCAT drivers, 18-bit encoders |
| Power | |
| Battery Life | 48V 10Ah |
| Sensing & Compute | |
| Sensors | high-precision posture sensor, Intel RealSense D435 depth camera, 2x six-axis force sensors (flagship) |
| Connectivity | Joint CAN/EtherCAT; hand 485/CAN |
| Software / AI | Dual-arm API |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 58 kg |
|---|---|
| Dimensions | H 1.75 m |
| Payload | 1.5 kg |
| Reach | 1.5 m |
| Repeatability | ±0.3 mm |
| Materials | aluminium alloy structure, aluminium alloy and ABS exterior |
| Mobility | |
| Movement Type | Bipedal |
| Degrees of Freedom | 44 |
| Actuators | Harmonic-reducer joints, CAN/EtherCAT drivers, 18-bit encoders |
| Power | |
| Battery Life | 48V 10Ah |
| Sensing & Compute | |
| Sensors | high-precision posture sensor, Intel RealSense D435 depth camera, 2x six-axis force sensors (flagship) |
| Connectivity | Joint CAN/EtherCAT; hand 485/CAN |
| Software / AI | Dual-arm API |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Ti5 T170A V2?
The Ti5 T170A V2 is the second generation of the company's full-size bipedal humanoid, standing 1.75 m and weighing 58 kg with a 1.5 m arm span and 42 or 44 active degrees of freedom depending on build.
Who makes the Ti5 T170A V2?
The Ti5 T170A V2 is made by Ti5 Robot, a robotics company based in China.
How much does the Ti5 T170A V2 cost?
Ti5 Robot has not publicly announced pricing for the Ti5 T170A V2. You can enquire through RobotAIGeek for current pricing.
What is the Ti5 T170A V2 used for?
The Ti5 T170A V2 is designed for education, education and training, exhibition presentation, and robotics research. It is used in research, education, and retail settings.
What is the payload capacity of the Ti5 T170A V2?
The Ti5 T170A V2 has a payload capacity of 1.5 kg and a reach of 1.5 m.
How much does the Ti5 T170A V2 weigh?
The Ti5 T170A V2 weighs 58 kg.
How many degrees of freedom does the Ti5 T170A V2 have?
The Ti5 T170A V2 has 44 degrees of freedom.
