DESCRIPTION
TAGON Roller is an Industrial-Robot from 3S Robotics. It is built for Intralogistics, Loading, Material-Handling. Key figures: 80 kg, 480 min runtime, 50 kg payload.

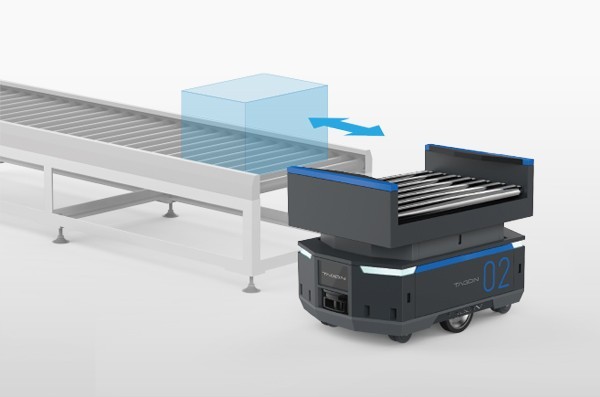

The TAGON Roller is 3S Robotics' conveyor-top AGV for automated production lines. A powered roller conveyor on its upper module loads and unloads goods by turning its rollers, and a stopper holds the load in place while the robot carries it to the next destination, so it can exchange totes and boxes with fixed conveyors in both directions and shorten logistics lead times. It carries up to 50 kg on an 800 x 540 x 310 mm, 80 kg chassis and drives at up to 0.8 m/s with +/-10 mm accuracy, using differential drive, optical or magnetic guidance and 2 m obstacle detection. A 24 V, 29.6 Ah battery gives about 8 hours of running without load and recharges in up to 2 hours; dispatch runs over Wi-Fi through the ILC system.
FEATURES
- Roller-conveyor-top AGV that loads/unloads by turning its rollers
- stopper secures load
- Payload 50 kg
- bidirectional transfer with fixed conveyors
- Max speed 0.8 m/s
- driving accuracy +/-10 mm
- Differential drive
- optical or magnetic guidance
- obstacle detection 2 m
- 24 V, 29.6 Ah battery
- 8 h running (no load)
- charging up to 2 h
- Wi-Fi
- dispatched by ILC system
- 800 x 540 x 310 mm
- 80 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 80 kg |
|---|---|
| Dimensions | L 800 mm × W 540 mm × H 310 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Indoor factories and warehouses |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | obstacle detection sensor (2 m), optical / magnetic guidance sensor |
| Connectivity | Wi-Fi; ILC fleet control |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 80 kg |
|---|---|
| Dimensions | L 800 mm × W 540 mm × H 310 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Indoor factories and warehouses |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | obstacle detection sensor (2 m), optical / magnetic guidance sensor |
| Connectivity | Wi-Fi; ILC fleet control |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TAGON Roller?
The TAGON Roller is 3S Robotics' conveyor-top AGV for automated production lines. A powered roller conveyor on its upper module loads and unloads goods by turning its rollers, and a stopper holds the load in place while the robot carries it to the next destination, so it can exchange totes and boxes with fixed conveyor…
Who makes the TAGON Roller?
The TAGON Roller is made by 3S Robotics, a robotics company based in South Korea.
How much does the TAGON Roller cost?
3S Robotics has not publicly announced pricing for the TAGON Roller. You can enquire through RobotAIGeek for current pricing.
What is the TAGON Roller used for?
The TAGON Roller is designed for intralogistics, loading, material-handling, and unloading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the TAGON Roller?
The TAGON Roller has a payload capacity of 50 kg.
How much does the TAGON Roller weigh?
The TAGON Roller weighs 80 kg.
How fast is the TAGON Roller?
The TAGON Roller can move at speeds of up to 2.88 km/h.
What is the battery life of the TAGON Roller?
The TAGON Roller runs for about 480 minutes on a charge.
