DESCRIPTION
C060F is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 150 kg, 480 min runtime, 600 kg payload.
C060F is iRAYPLE's low-profile 600 kg under-ride lifting AMR: 250 mm tall and 150 kg, 50 mm lower and 20 kg lighter than the C060D, so it fits under lower racks and carts. It navigates by QR code/texture/laser SLAM, reaches 2.0 m/s empty, stops within ±10 mm and runs 8.0 h per charge (charging: manual/automatic, manually change battery). It talks to iRAYPLE's robot control and scheduling system over Wi-Fi.
FEATURES
- Rated load 600 kg
- machine weight 150 kg
- 950 mm×650 mm×250 mm
- Max. speed 2.0 m/s
- Navigation: QR code/texture/laser SLAM
- drive: Two-wheel speed difference
- Lifting Process Distance: 60 mm
- Lifting Pallet Dimensions: 900 mm×560 mm
- Rotation Diameter: 1000 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3°/5%
- Obstacle Crossing Height: 10 mm
- Obstacle Avoidance Method: Laser or Laser, TOF (by SKU)
- Charging Mode: Manual/automatic, manually change battery
- Communication Mode: Wi-Fi
- Operating time 8.0 h
- charging 1.5 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 250 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras (1T/2T sensor options), downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 250 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras (1T/2T sensor options), downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |

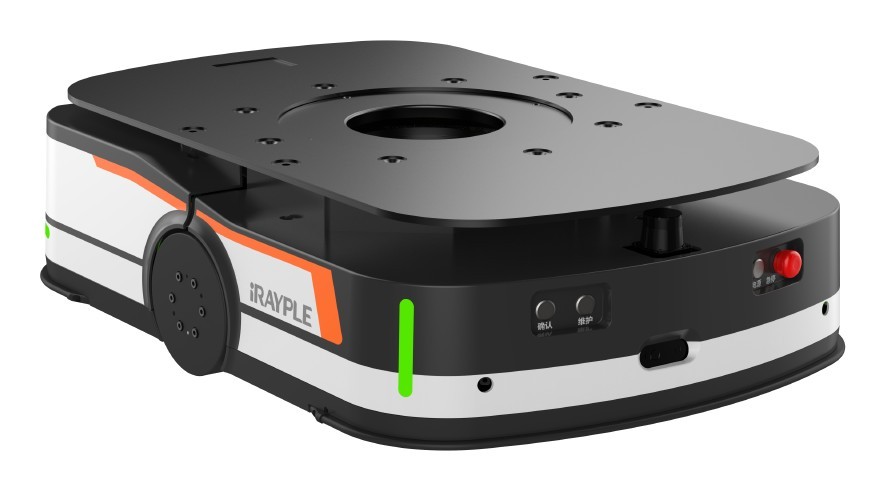

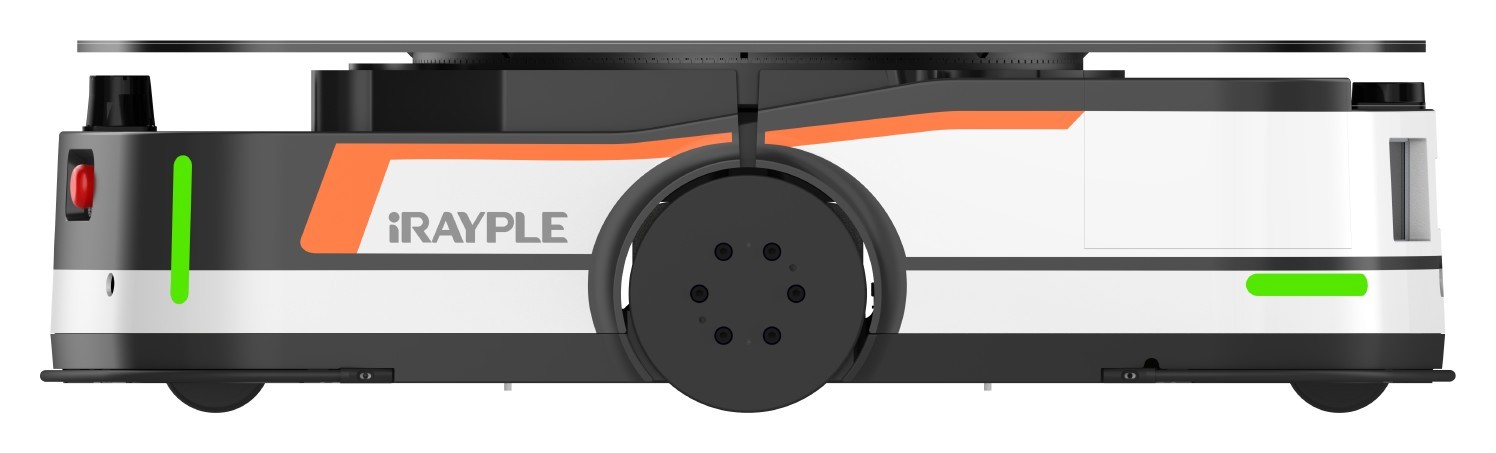

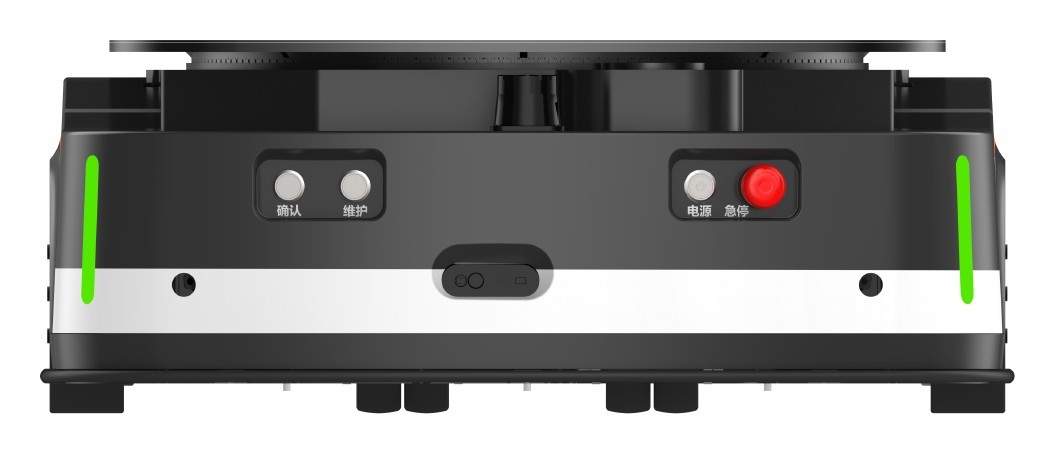

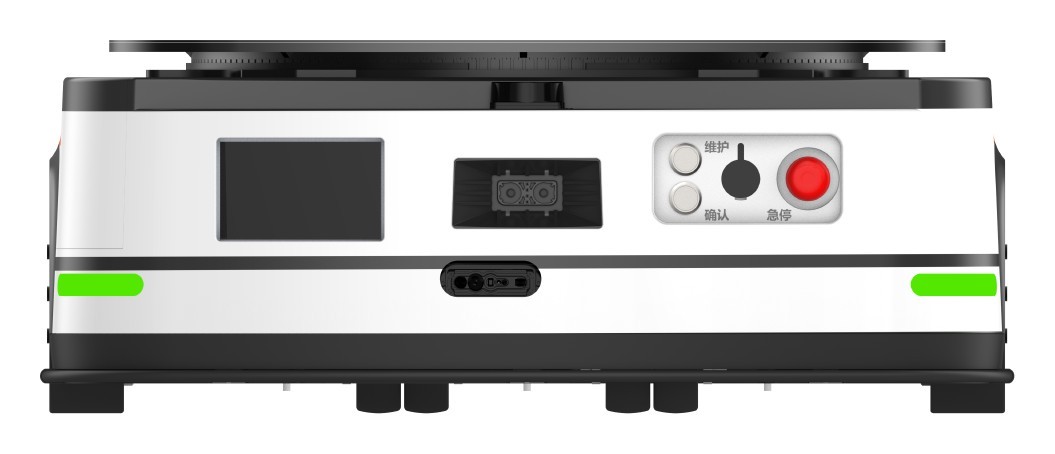

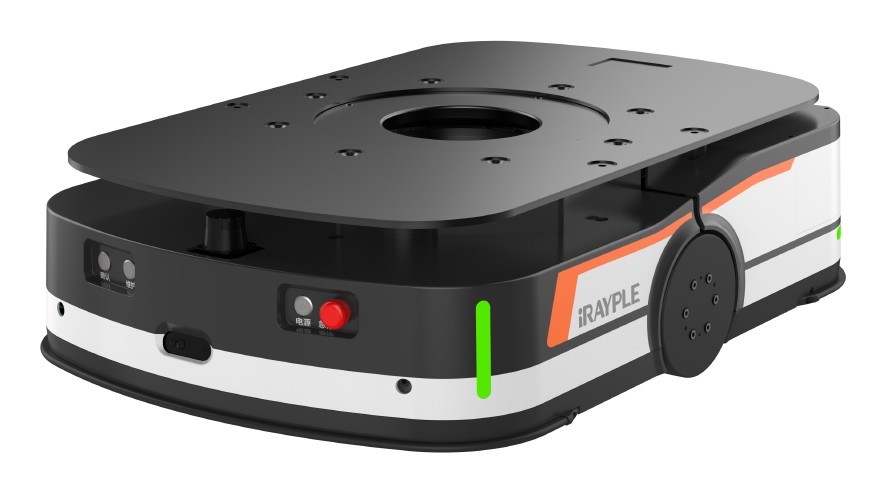

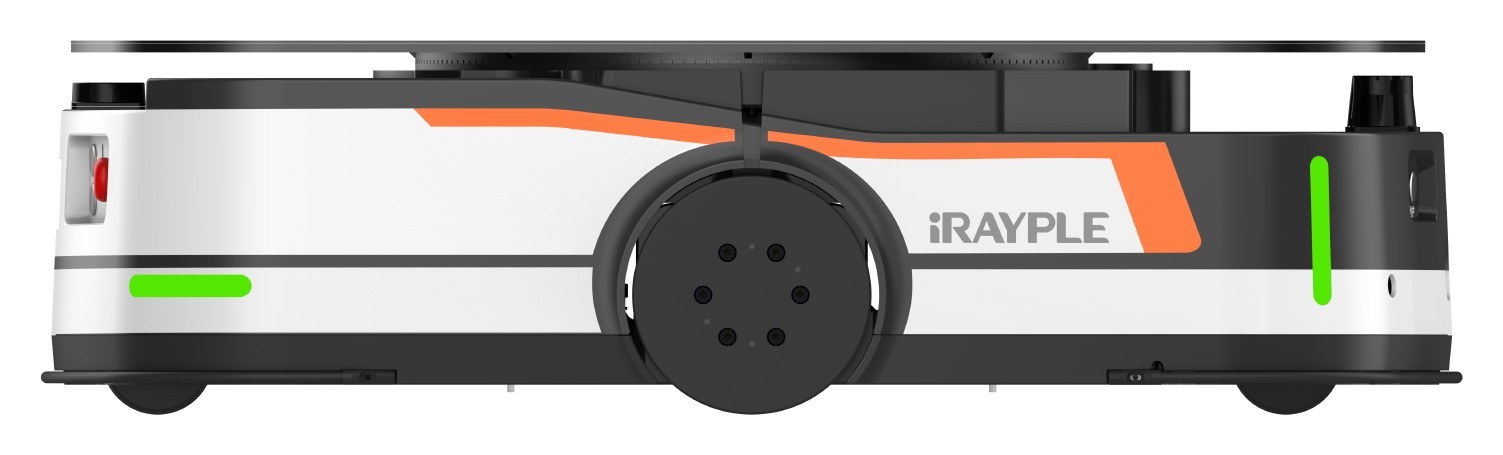

Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the C060F?
C060F is iRAYPLE's low-profile 600 kg under-ride lifting AMR: 250 mm tall and 150 kg, 50 mm lower and 20 kg lighter than the C060D, so it fits under lower racks and carts.
Who makes the C060F?
The C060F is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the C060F cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the C060F. You can enquire through RobotAIGeek for current pricing.
What is the C060F used for?
The C060F is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the C060F?
The C060F has a payload capacity of 600 kg.
How much does the C060F weigh?
The C060F weighs 150 kg.
How fast is the C060F?
The C060F can move at speeds of up to 7.2 km/h.
What is the battery life of the C060F?
The C060F runs for about 480 minutes on a charge.
