Wonik Robotics WR1000LF

Wonik Robotics
Industrial-RobotSouth KoreaSouth KoreaReleased
Wonik Robotics WR1000LF
Compare
Sources:
wonikrobotics.com
Industries:
ElectronicsWarehouse & LogisticsManufacturing
Uses:
IntralogisticsMaterial-HandlingTransport
Price:
Not announced
Released:
2024

DESCRIPTION

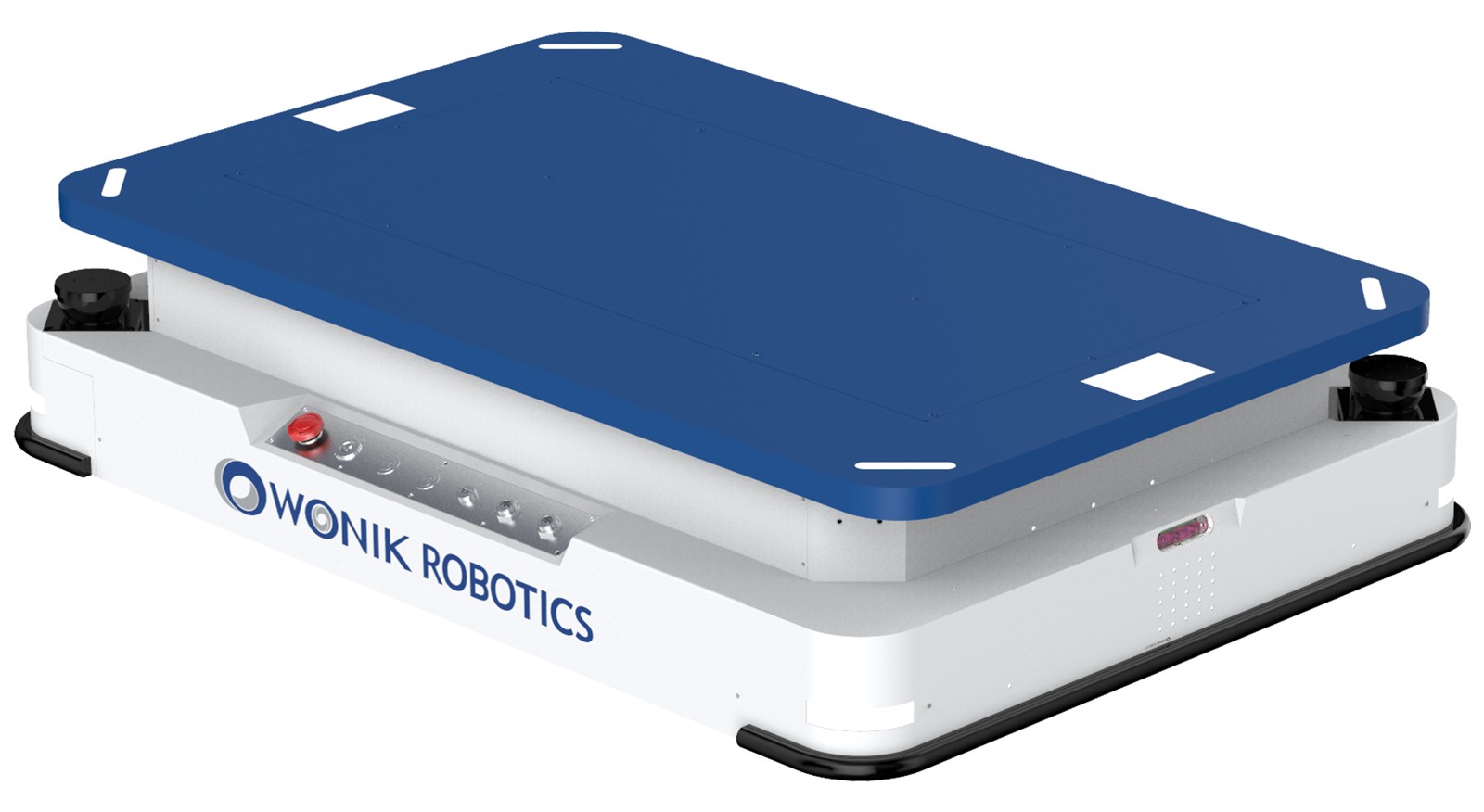

The WR1000LF is an autonomous mobile robot from Wonik Robotics' AMR line, built to move material around a factory without a driver or fixed guide path. Pallet lift, 100 mm stroke. It measures 956 mm wide by 1,350 mm long by 318 mm high and carries up to 1,000 kg. Drive is differential, on urethane wheels — two driven and four castors — with a top speed of 1.0 m/s and an average of about 0.7 m/s. Navigation is SLAM-based: the robot builds and localises against its own map, so it can be redeployed when a line or equipment layout changes rather than re-taping a route. It stops to within plus or minus 20mm and docks to within plus or minus 10mm (QR code). Power is a Li-ion, DC50V / 50Ah pack, charged automatically or manually in about 2 to 2.5 h. Networking is WiFi 2.4 GHz and 5 GHz; LTE/5G optional. Fleets run under Wonik's ACS control system, which coordinates up to 100 robots. It is declared to EN ISO 12100:2010, EN 60204-1:2018, EN ISO 3691-4:2023, EN 55011:2016+A1:2017+A11:2020 and EN 61000-6-2:2005+AC:2005.

FEATURES

  • Autonomous mobile robot for factory material transport
  • Pallet lift, 100 mm stroke
  • Dimensions 956 x 1,350 x 318 mm (W x L x H)
  • Payload 1,000 kg
  • Differential drive
  • urethane wheels, two driven and four castors
  • SLAM navigation
  • Stop accuracy plus or minus 20mm
  • Docking accuracy plus or minus 10mm (QR code)
  • Maximum speed 1.0 m/s
  • average about 0.7 m/s
  • Battery Li-ion, DC50V / 50Ah
  • Charging time about 2 to 2.5 h, automatic or manual
  • WiFi 2.4 GHz and 5 GHz
  • LTE/5G optional
  • Managed by Wonik ACS fleet control (up to 100 robots)
  • Declared to EN ISO 12100:2010, EN 60204-1:2018, EN ISO 3691-4:2023, EN 55011:2016+A1:2017+A11:2020, EN 61000-6-2:2005+AC:2005

TECHNICAL SPECIFICATIONS

Verified
Physical
DimensionsL 1.35 m × W 956 mm × H 318 mm
Payload1000 kg
Mobility
Movement TypeWheeled
Speed1 km/h
EnvironmentIndoor factory and warehouse floors
Power
Battery LifeLi-ion, DC50V / 50Ah
Sensing & Compute
SensorsSLAM laser scanner, odometry
ConnectivityWiFi 2.4 GHz and 5 GHz; LTE/5G optional
Software / AIWonik ACS (AMR Control System) fleet management, up to 100 robots in real time
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the Wonik Robotics WR1000LF?

The WR1000LF is an autonomous mobile robot from Wonik Robotics' AMR line, built to move material around a factory without a driver or fixed guide path. Pallet lift, 100 mm stroke. It measures 956 mm wide by 1,350 mm long by 318 mm high and carries up to 1,000 kg.

Who makes the Wonik Robotics WR1000LF?

The Wonik Robotics WR1000LF is made by Wonik Robotics, a robotics company based in South Korea.

How much does the Wonik Robotics WR1000LF cost?

Wonik Robotics has not publicly announced pricing for the Wonik Robotics WR1000LF. You can enquire through RobotAIGeek for current pricing.

What is the Wonik Robotics WR1000LF used for?

The Wonik Robotics WR1000LF is designed for intralogistics, material-handling, and transport. It is used in electronics, warehouse & logistics, and manufacturing settings.

What is the payload capacity of the Wonik Robotics WR1000LF?

The Wonik Robotics WR1000LF has a payload capacity of 1,000 kg.

How fast is the Wonik Robotics WR1000LF?

The Wonik Robotics WR1000LF can move at speeds of up to 1 km/h.

When was the Wonik Robotics WR1000LF released?

The Wonik Robotics WR1000LF was released in 2024.
