DESCRIPTION
VNA Series Forklift Robot (FMR) is an Industrial-Robot from Hangcha. It is built for Intralogistics, Material-Handling, Transport. Key figures: 360 min runtime, 1600 kg payload.

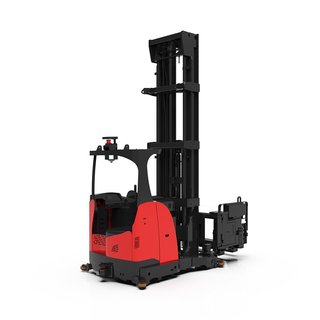

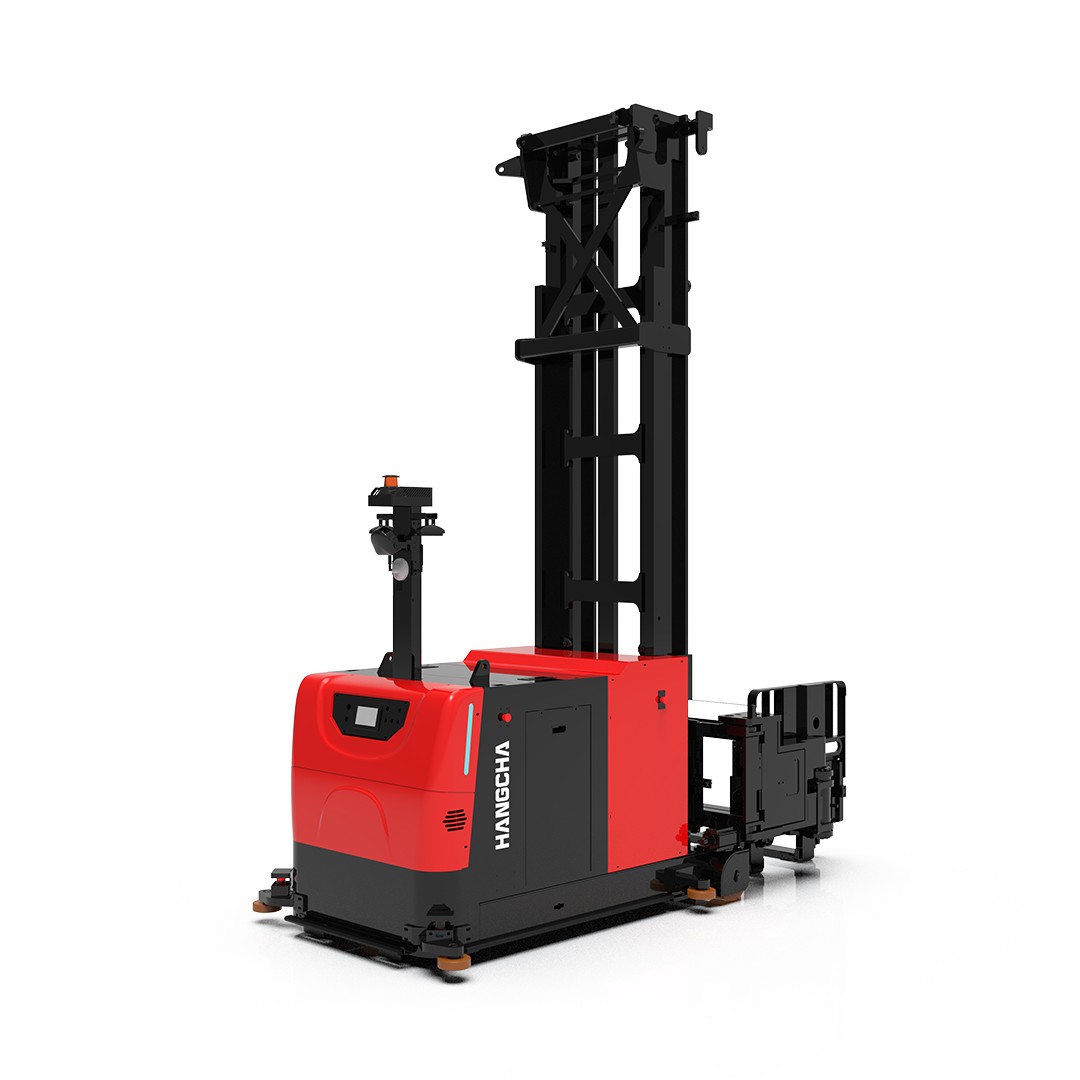

Hangcha's VNA Series forklift robots are three-way stacking robots for very narrow aisles. Their forks rotate 180 degrees and shift sideways, so they store and retrieve goods on both sides of the aisle without turning the whole vehicle. They suit mid- to high-level narrow-aisle storage in factories and logistics centres, and fork length, width and load centre can be customised. The listed models are the 1.2 t Three-way Stacking FMR lifting 5 m and the 1.6 t version lifting 6 m. Both work in aisles from 2,050 mm wide, travel at up to 1.5 m/s, navigate by 2D/3D SLAM and run 6-8 hours per charge.
FEATURES
- 1.2t Three-way stacking FMR: Rated load 1200 (Kg)
- Lifting height 5000 (mm)
- Minimum tunnel requirement 2050 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 1.6t Three-way Stacking FMR: Rated load 1600 (Kg)
- Lifting height 6000 (mm)
- Minimum tunnel requirement 2050 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1600 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 360 min |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1600 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 360 min |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VNA Series Forklift Robot (FMR)?
Hangcha's VNA Series forklift robots are three-way stacking robots for very narrow aisles. Their forks rotate 180 degrees and shift sideways, so they store and retrieve goods on both sides of the aisle without turning the whole vehicle.
Who makes the VNA Series Forklift Robot (FMR)?
The VNA Series Forklift Robot (FMR) is made by Hangcha, a robotics company based in China.
How much does the VNA Series Forklift Robot (FMR) cost?
Hangcha has not publicly announced pricing for the VNA Series Forklift Robot (FMR). You can enquire through RobotAIGeek for current pricing.
What is the VNA Series Forklift Robot (FMR) used for?
The VNA Series Forklift Robot (FMR) is designed for intralogistics, material-handling, transport, and very-narrow-aisle forklift robots that store and retrieve pallets on both sides of a 2 m aisle. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the VNA Series Forklift Robot (FMR)?
The VNA Series Forklift Robot (FMR) has a payload capacity of 1,600 kg.
How fast is the VNA Series Forklift Robot (FMR)?
The VNA Series Forklift Robot (FMR) can move at speeds of up to 5.4 km/h.
What is the battery life of the VNA Series Forklift Robot (FMR)?
The VNA Series Forklift Robot (FMR) runs for about 360 minutes on a charge.
