Novus Carry

The Hi-Tech Robotic Systemz Ltd.

Industrial-Robot India

IndiaReleased

★Not rated yet

Compare

Sources:

novushitech.com

Industries:

Automotive Electronics Energy Healthcare Warehouse & Logistics Manufacturing

Uses:

Heavy-Load-Transportation Intralogistics Lifting Material-Handling Delivery Transport

Price:

Not announced

DESCRIPTION

Novus Carry is an Industrial-Robot from The Hi-Tech Robotic Systemz Ltd.. It is built for Heavy-Load-Transportation, Intralogistics, Lifting. Key figures: 480 min runtime, 2000 kg payload.

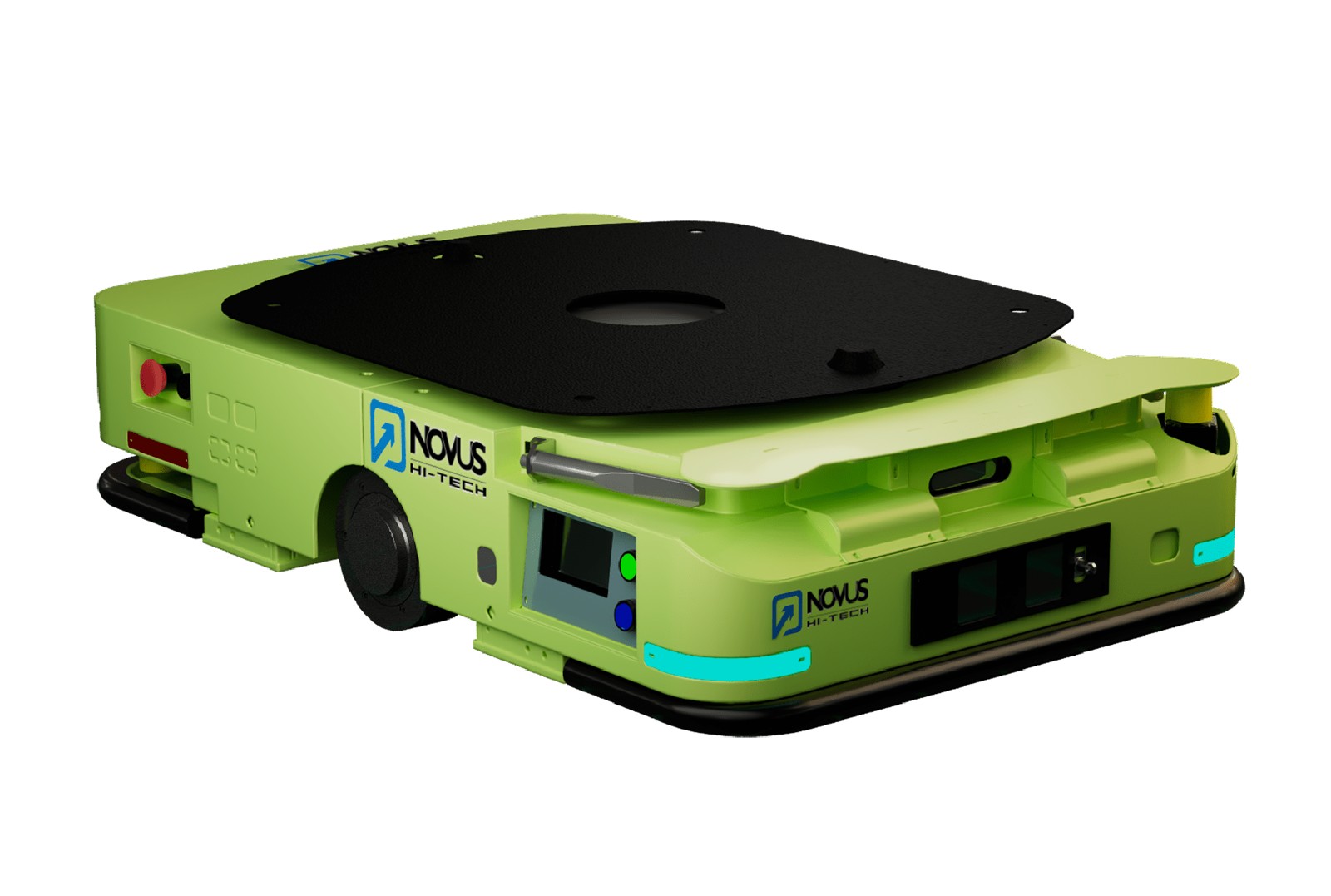

Novus Carry is a family of autonomous mobile robots from Novus Hi-Tech (The Hi-Tech Robotic Systemz) that move bins, trolleys, pallets, fixtures and vehicle frames across assembly lines, paint shops and warehouses without floor markers. The company says the hardware, navigation software and fleet system are built in-house in India. Five payload classes share one platform: CARRY-250, CARRY-500, CARRY-1000, CARRY-1500 and CARRY-2000. The smaller models reach 1.5 m/s and the two largest 1.25 m/s, run about 8 hours per charge and recharge in 90 to 180 minutes. The four smaller models use differential drive and the CARRY-2000 a dual-drive, steer-assist chassis. Localization is by SLAM or V-SLAM with LiDAR and QR-assisted docking, and 3D LiDAR with 360-degree safety scanners lets the robots share floors with people. The CARRY-500 data sheet lists a 1,170 x 750 x 425 mm, 260 kg chassis with a 100 Ah battery, +/-10 mm positioning, IP21 and ISO 3691-4 design. Six plug-in tops (lifter, tugger, tunneling, conveyor loader, frame transport and pick assist) adapt the robot to each job. Fleets run on the Novus FMS, which supports VDA 5050, and Novus Analytics. Named users include Volvo Eicher, Asian Paints and John Deere.

FEATURES

Five payload classes: CARRY-250, CARRY-500, CARRY-1000, CARRY-1500, CARRY-2000
Payload 250 / 500 / 1,000 / 1,500 / 2,000 kg
Max speed 1.5 m/s (250, 500, 1000) and 1.25 m/s (1500, 2000)
Run time about 8 h per charge (6-10 h range across the series)
Charge time 90-120 min (250), 120-150 min (500), 150 min (1000, 1500), 180 min (2000)
Natural navigation with LiDAR and QR-assisted docking
SLAM / V-SLAM localization
Differential drive (CARRY-250 to CARRY-1500)
dual-drive / steer-assist (CARRY-2000)
3D LiDAR and 360 deg safety scanners for human co-working

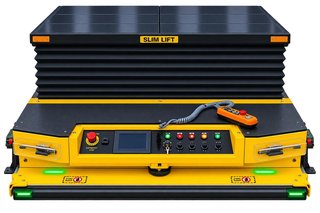

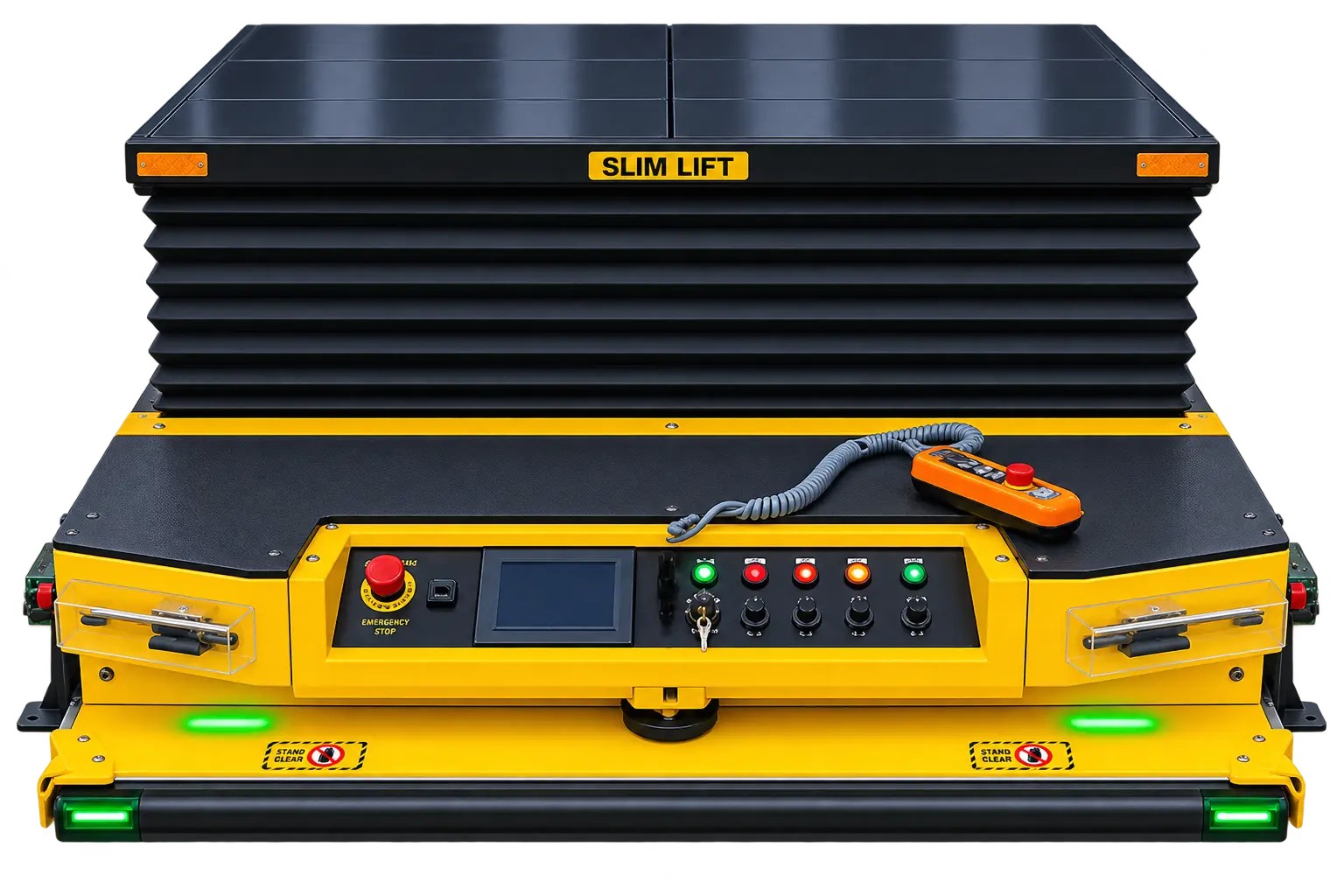

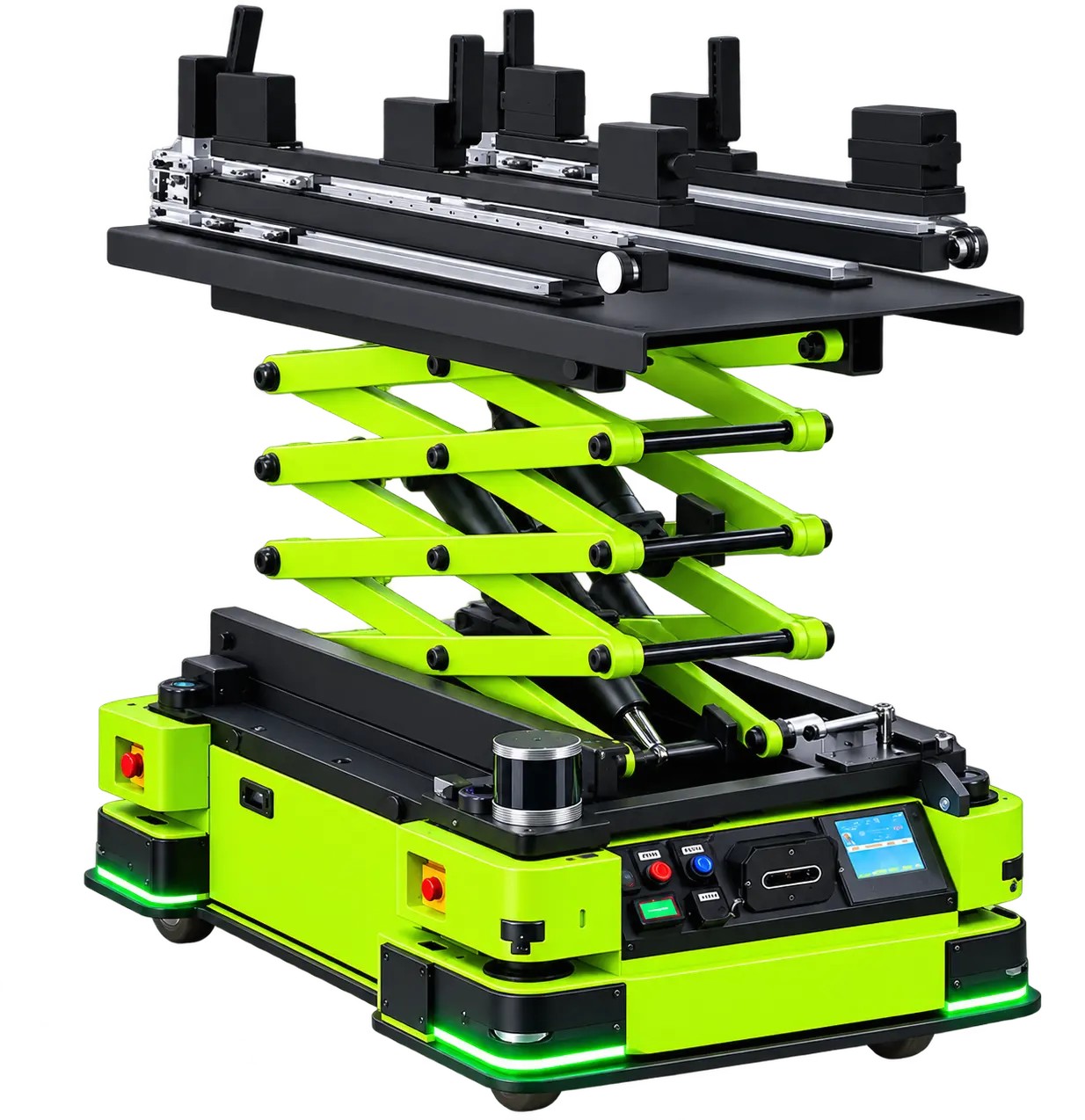

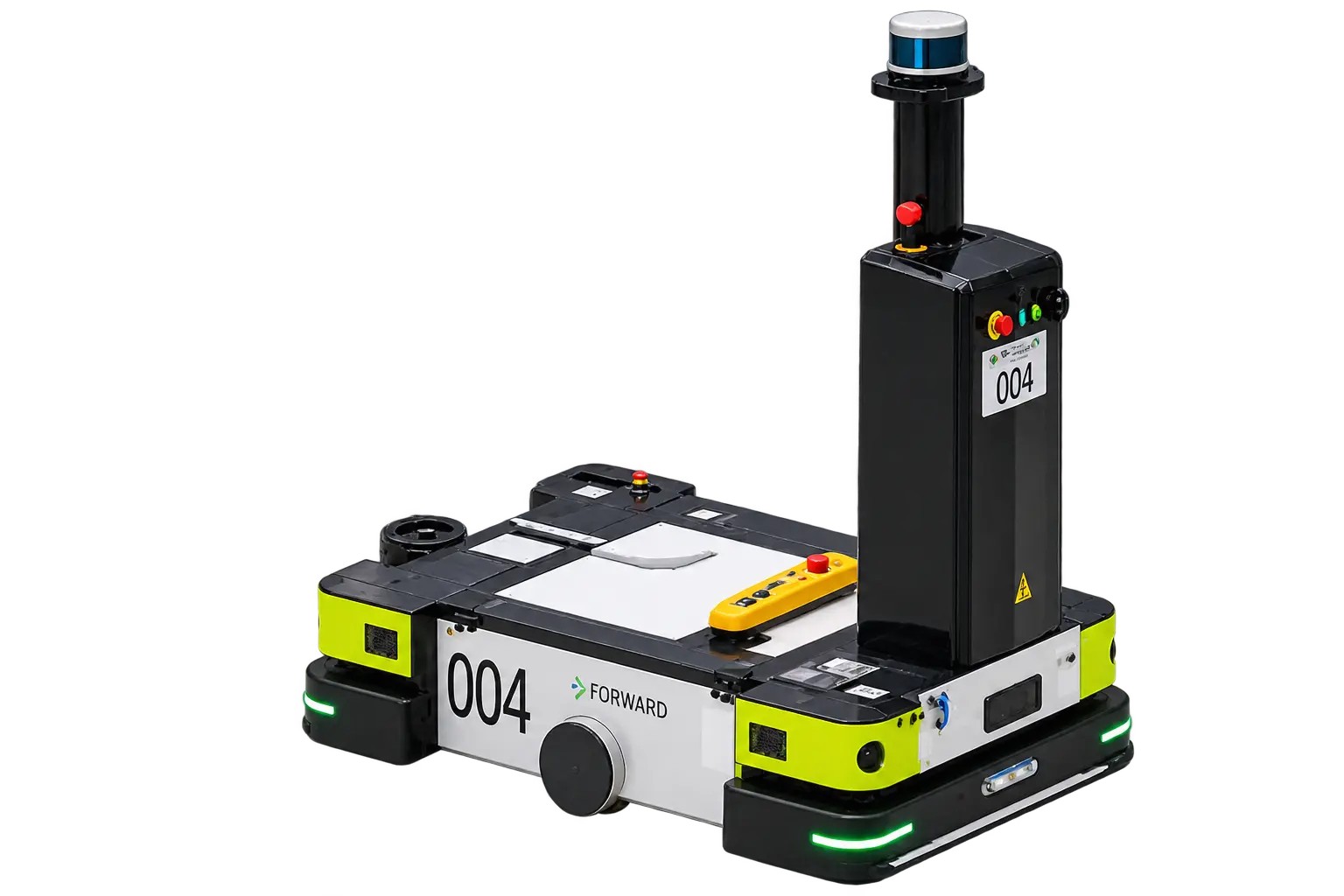

Plug-and-play attachments: lifter, tugger with auto hitch/unhitch, tunneling, conveyor loader/unloader, frame transport, pick assist
CARRY-500 data sheet: 1,170 x 750 x 425 mm, 35 mm ground clearance, 260 kg, 500 kg payload
CARRY-500 data sheet: 100 Ah battery, 40 A CCCV charging, ~150 min charge, 2,000 cycles standard / 3,000 optional
CARRY-500 data sheet: 6 h active operation at full payload, 10 h without payload
CARRY-500 data sheet: +/-10 mm positioning, 2% incline, 5-50 C, 10-90% humidity, IP21
Design standards ISO 3691-4, EN 1525, ISO 13849
Novus FMS fleet management with VDA 5050 support for third-party fleets
Novus Analytics dashboards
Used in assembly-line feed, kitting, paint shops, finished-goods pallet transfer, battery-pack handling and e-commerce tote transfer

TECHNICAL SPECIFICATIONS

Physical
Payload	2000 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor assembly lines, paint shops, cleanrooms, pharma corridors and warehouses, IP21
Power
Battery Life	480 min
Sensing & Compute
Sensors	3D LiDAR, 360 deg safety laser scanners, QR code reader for docking
Connectivity	Wi-Fi; VDA 5050
Software / AI	Novus FMS (VDA 5050), Novus Analytics

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Physical
Payload	2000 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor assembly lines, paint shops, cleanrooms, pharma corridors and warehouses, IP21
Power
Battery Life	480 min
Sensing & Compute
Sensors	3D LiDAR, 360 deg safety laser scanners, QR code reader for docking
Connectivity	Wi-Fi; VDA 5050
Software / AI	Novus FMS (VDA 5050), Novus Analytics

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the Novus Carry?

Who makes the Novus Carry?

The Novus Carry is made by The Hi-Tech Robotic Systemz Ltd., a robotics company based in India.

How much does the Novus Carry cost?

The Hi-Tech Robotic Systemz Ltd. has not publicly announced pricing for the Novus Carry. You can enquire through RobotAIGeek for current pricing.

What is the Novus Carry used for?

The Novus Carry is designed for heavy-load-transportation, intralogistics, lifting, and material-handling. It is used in automotive, electronics, energy, and healthcare settings.
