T200

THIRA Robotics

Industrial-Robot

South KoreaReleased

★Not rated yet

Compare

Sources:

thirarobotics.com

Industries:

Electronics Healthcare Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportFactory and warehouse material transport

Price:

Not announced

Model:

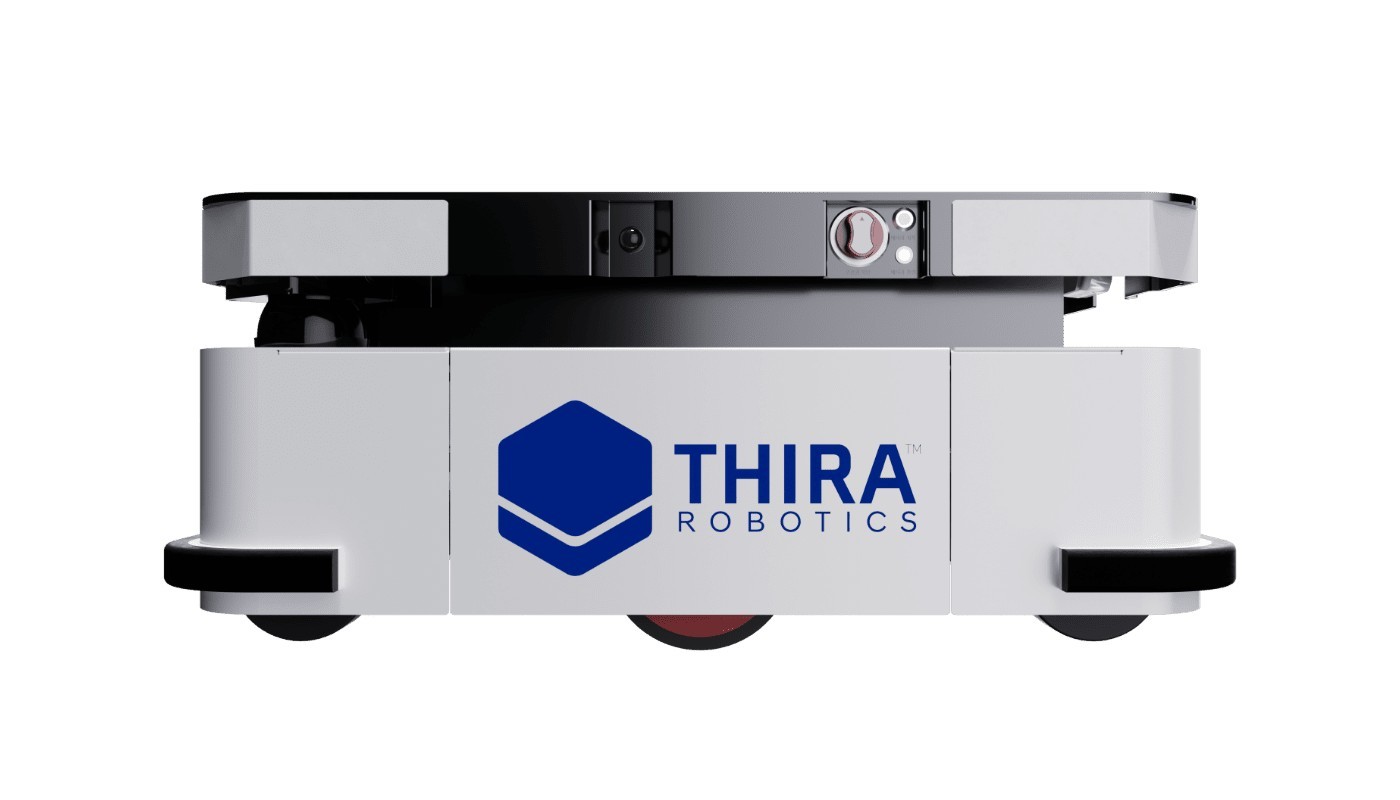

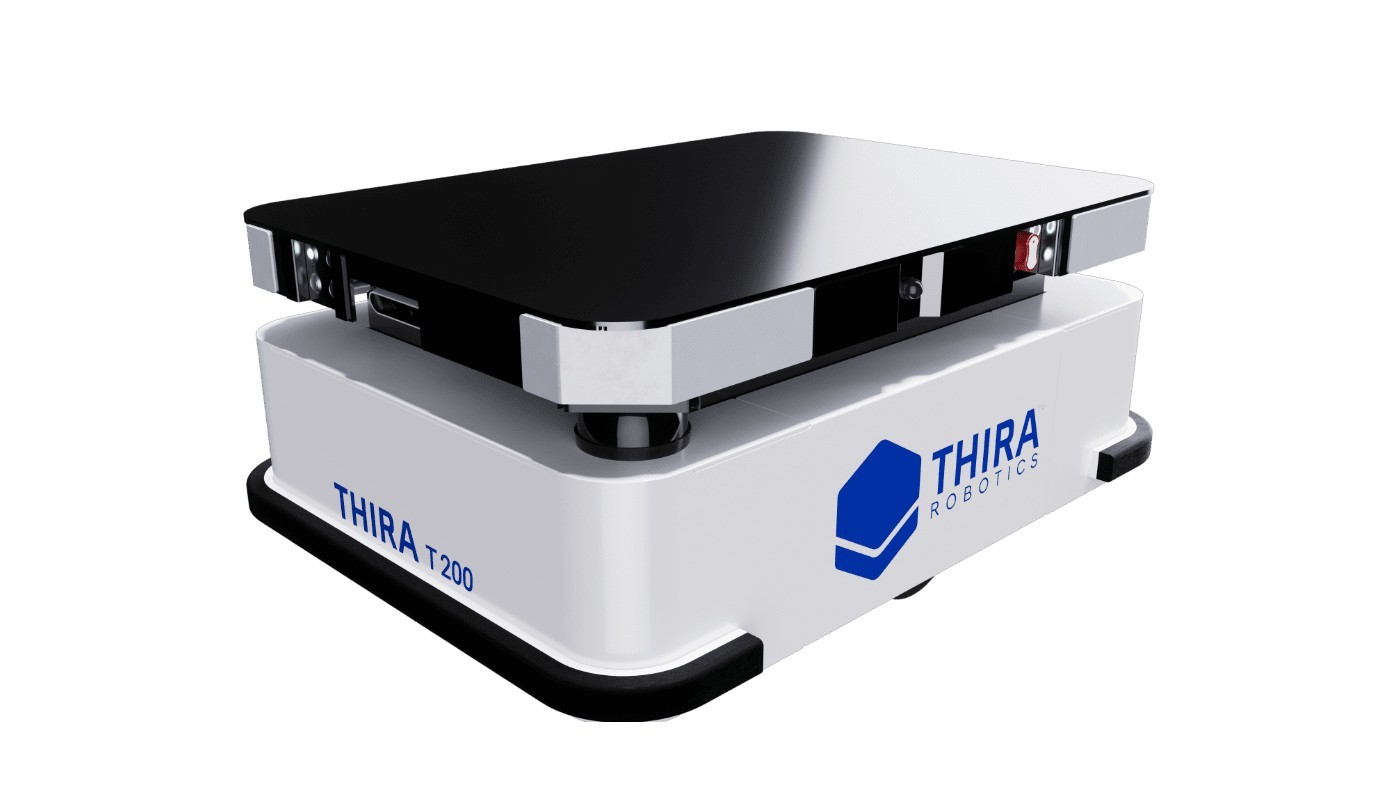

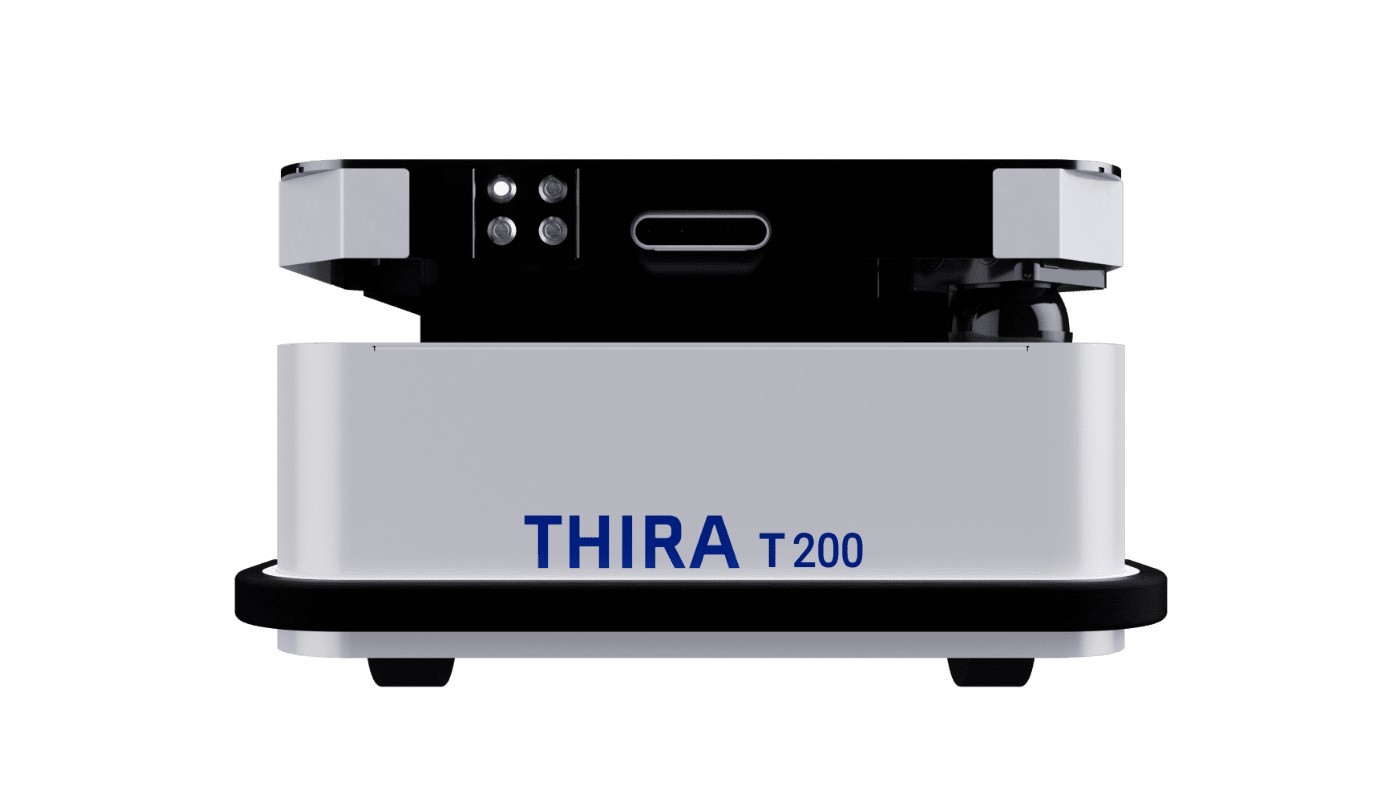

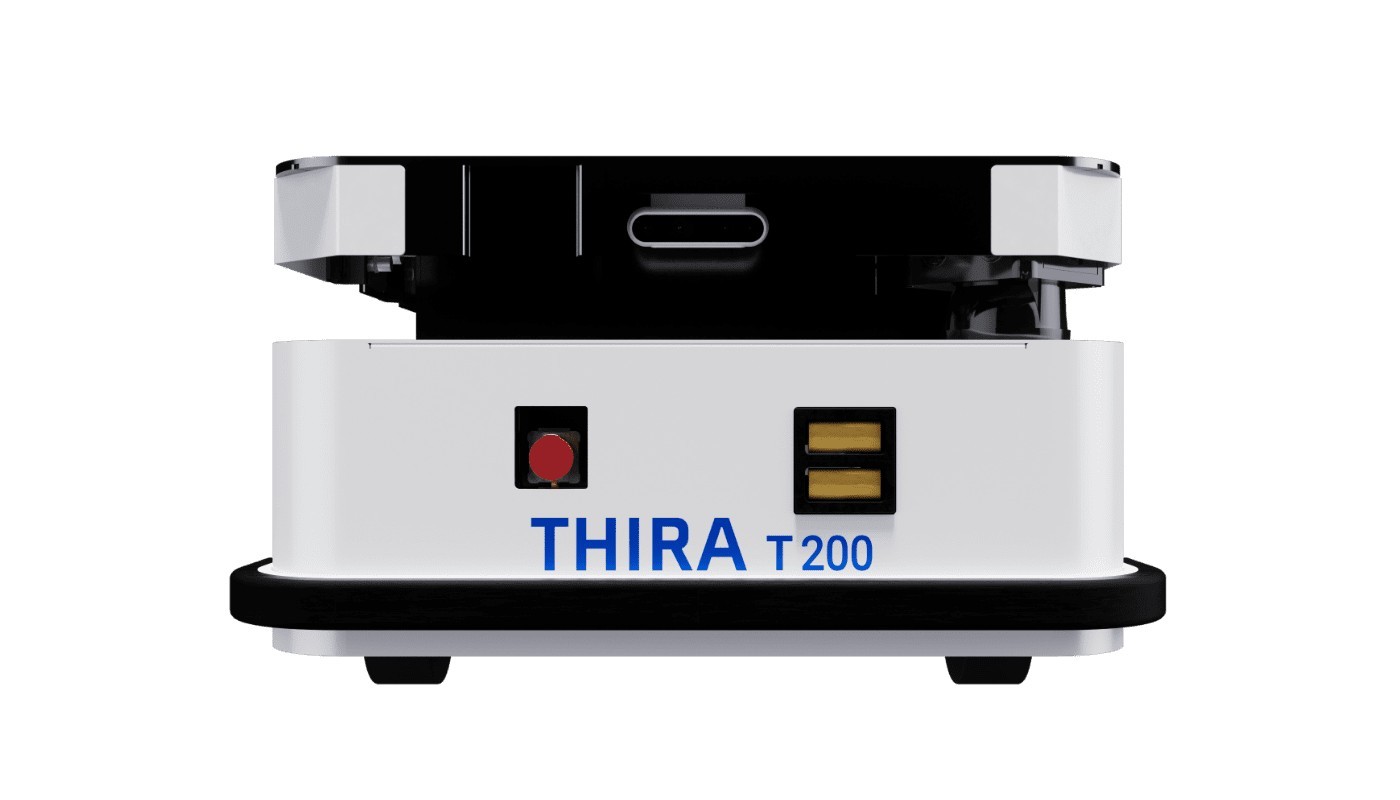

THIRA Robotics T200 autonomous mobile robot

DESCRIPTION

T200 is an Industrial-Robot from THIRA Robotics. It is built for Intralogistics, Material-Handling, Transport. Key figures: 102 kg, 480 min runtime, 200 kg payload.

The T200 is THIRA Robotics' smallest T-series autonomous mobile robot, designed with a minimal footprint to move loads of up to 200 kg through tight spaces inside factories and warehouses. It measures 760 x 550 mm with a height of 340 mm, weighs 102 kg and drives at up to 1.4 m/s. Like THIRA's other AMRs it is built for imperfect sites, driving on rough floors and through water and oil spills, and its safety system combines two SICK nanoScan3 safety laser scanners giving 360-degree protection, two Intel RealSense D435 3D cameras and bumpers. A 1 kWh (40.8 Ah at 25.2 V) lithium-ion battery gives about 8 hours of operation and charges from 10 to 90% in about 2 hours; the robot is rated IP21 for use indoors at 5°C to 40°C, communicates over Wi-Fi with REST, ROS 1, MQTT interfaces and is managed through the THIRA FMS fleet system (compliance: CE, FCC).

FEATURES

Payload 200 Kg
441 lbs (Max.)
Dimensions 760 mm (810 mm with bumper) 29.2 in (31.9 in with bumper) x 550 mm (600 mm with bumper) 21.7 in (23.6 in with bumper) x 340 mm
13.4 in
Weight 102 Kg
225 lbs
Speed 1.1 m/s
2.4 mph (Recommand) 1.4 m/s
3.1 mph (Max.)
Battery 1 kWh (40.8 Ah at 25.2 V)
8 h operation
charging 2 hours, 10% to 90% (Auto, Manual)
Floor conditions: Capability to drive on rough, water, oil spill, offset
Safety: Triple safety system. (LiDAR, Depth Camera, Bumper)
Sensors: 2x SICK nanoScan3 safety laser scanner (360 deg)
2x Intel RealSense D435 3D camera
bumper
Environment: For indoor use only
+5°C to 40°C
IP21
Communication: REST, ROS 1, MQTT
Wi-Fi
THIRA FMS fleet management
Compliance: CE, FCC
Elevator boarding: KS B 7317 (Korean Standard)

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	102 kg
Dimensions	L 760 mm × W 550 mm × H 340 mm
Payload	200 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	For indoor use only; +5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x SICK nanoScan3 safety laser scanner (360 deg), 2x Intel RealSense D435 3D camera, bumper
Connectivity	Wi-Fi; REST, ROS 1, MQTT; THIRA FMS

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	102 kg
Dimensions	L 760 mm × W 550 mm × H 340 mm
Payload	200 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	For indoor use only; +5°C to 40°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2x SICK nanoScan3 safety laser scanner (360 deg), 2x Intel RealSense D435 3D camera, bumper
Connectivity	Wi-Fi; REST, ROS 1, MQTT; THIRA FMS

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the T200?

Who makes the T200?

The T200 is made by THIRA Robotics, a robotics company based in South Korea.

How much does the T200 cost?

THIRA Robotics has not publicly announced pricing for the T200. You can enquire through RobotAIGeek for current pricing.

What is the T200 used for?

The T200 is designed for intralogistics, material-handling, transport, and factory and warehouse material transport. It is used in electronics, healthcare, warehouse & logistics, and manufacturing settings.
