DESCRIPTION
T 76 is a Mobile-Robots from IBAK. It is built for Data Collection, Surveying, Inspection. Key figures: 21 kg.

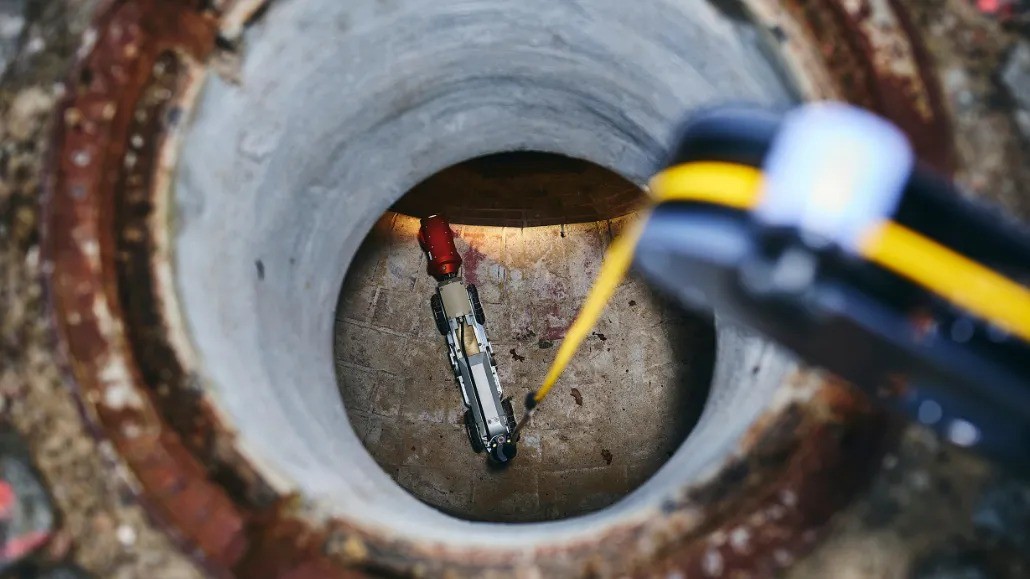

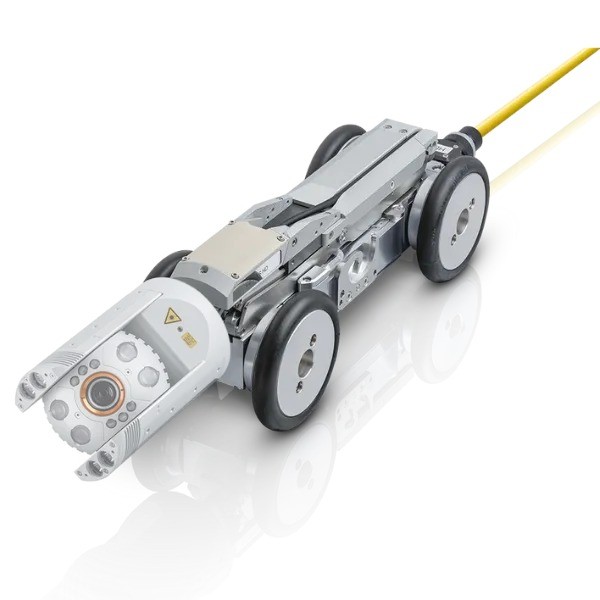

T 76 is IBAK's larger camera tractor for sewer inspection, a steerable, cable-connected crawler for pipes from DN 150 upwards. It carries any IBAK tractor camera, such as the ORPHEUS shown with it in the MainLite system, and is used in MainLite and vehicle-based inspection systems. The tractor measures 129 x 68 x 580 mm with its camera connector, wheel set and folding plug, and weighs 21 kg. It has electric height adjustment, is rated IP 68 and explosion-protected, and offers continuously variable speed, cruise control, ATC stabilisation, pressure monitoring, temperature measurement and optional, retrofittable tilt measurement. A quick-change system swaps the wheels.
FEATURES
- From DN 150
- Steerable
- Electric height adjustment
- Continuously variable speed
- cruise control
- ATC stabilisation function
- IP 68
- Explosion protection
- Pressure monitoring
- Temperature measurement possible
- Tilt measurement optional and retrofittable
- Quick-change wheels
- Takes all IBAK tractor cameras
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 21 kg |
|---|---|
| Dimensions | L 580 mm × W 129 mm × H 68 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Underground sewer pipes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 21 kg |
|---|---|
| Dimensions | L 580 mm × W 129 mm × H 68 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Underground sewer pipes |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the T 76?
T 76 is IBAK's larger camera tractor for sewer inspection, a steerable, cable-connected crawler for pipes from DN 150 upwards. It carries any IBAK tractor camera, such as the ORPHEUS shown with it in the MainLite system, and is used in MainLite and vehicle-based inspection systems.
Who makes the T 76?
The T 76 is made by IBAK, a robotics company based in Germany.
How much does the T 76 cost?
IBAK has not publicly announced pricing for the T 76. You can enquire through RobotAIGeek for current pricing.
What is the T 76 used for?
The T 76 is designed for data collection, surveying, and inspection. It is used in facilities, government, and construction settings.
How much does the T 76 weigh?
The T 76 weighs 21 kg.
