DESCRIPTION
MicroGator Air is a Mobile-Robots from IBAK. It is built for Construction, Material-Handling, Inspection. Key figures: 53 kg.

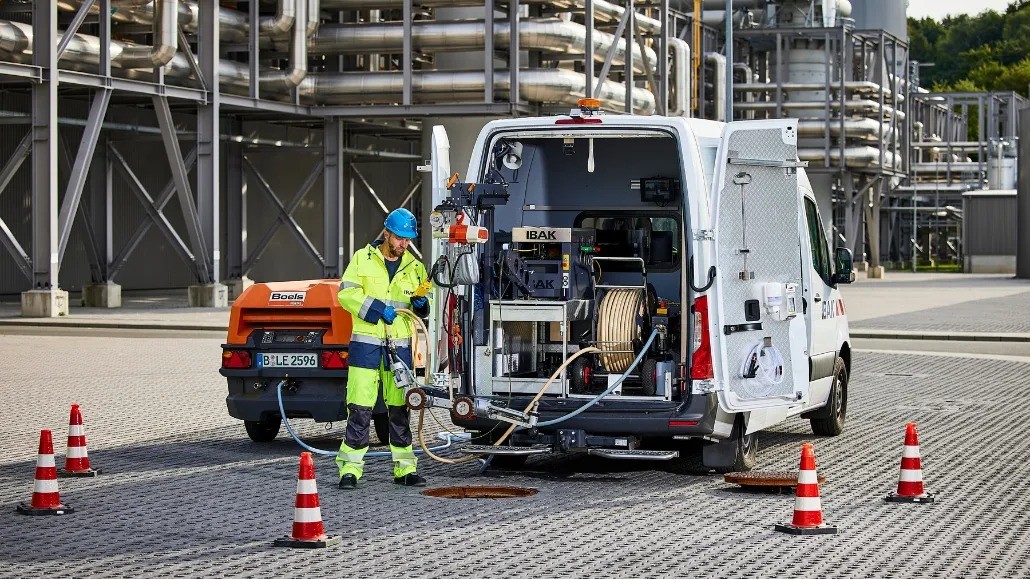

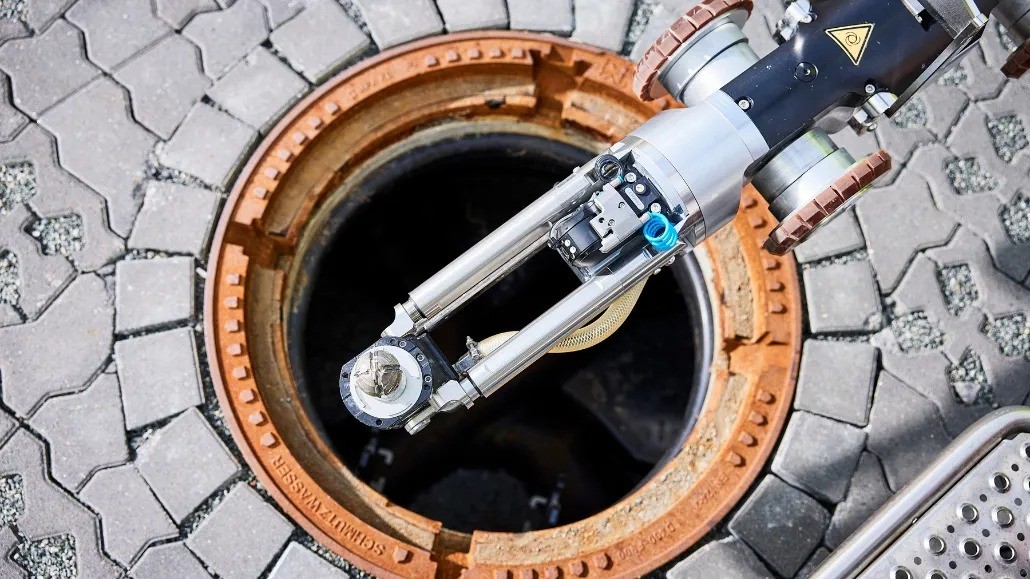

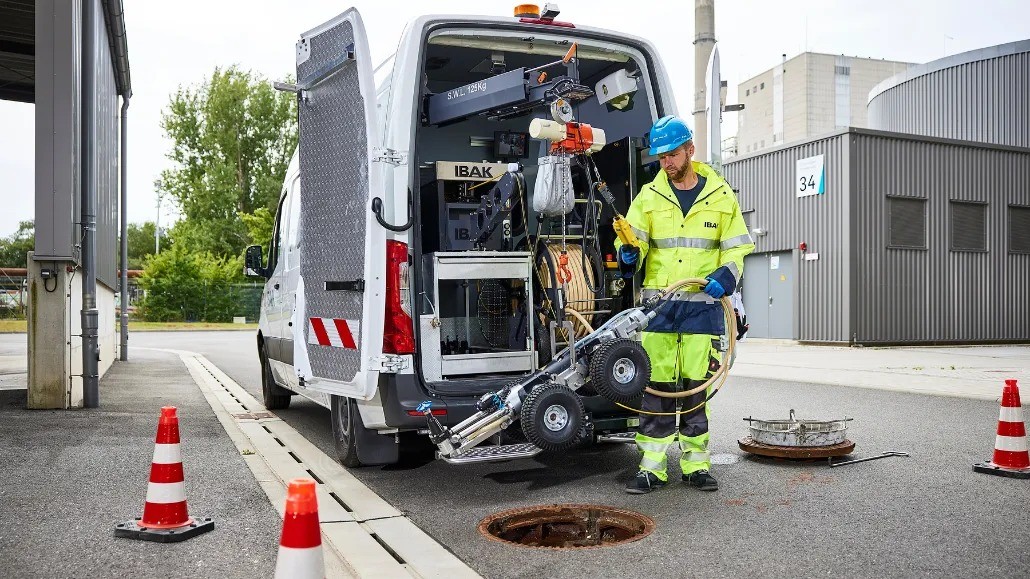

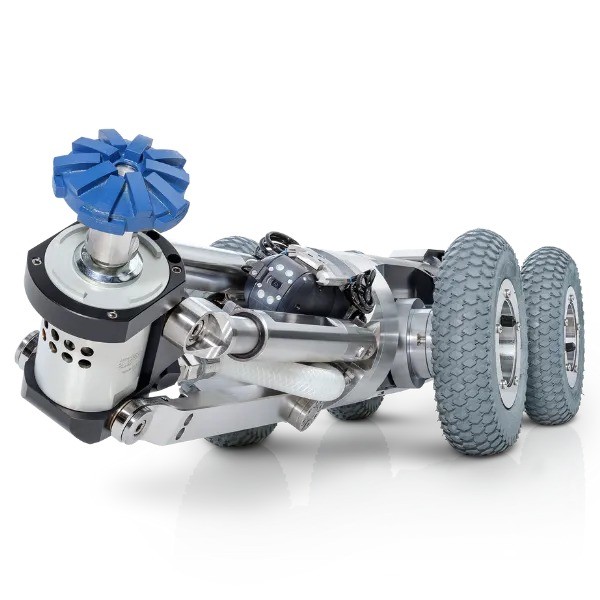

MicroGator Air is IBAK's pneumatic cutting robot for main sewers from DN 200 (relined) upwards, with a working range of up to 300 m, twice that of the electric MicroGator. It can run in a vehicle installation or as a mobile unit, and inspection systems can be operated on the same installation. The robot is 104 cm long (72 cm rigid), weighs 53 kg and travels at up to 15 m/min, with a 400-degree rotary module and 200 mm of lift. It has observation and rear cameras, lens cleaning and pressure monitoring, and IBAK lists top hat and sleeve setting among its functions.
FEATURES
- Pneumatic cutting system
- From DN 200 (relined)
- up to 300 m working range
- Vehicle installation or mobile unit
- Length 104 cm, 72 cm rigid
- Body 150 mm, 160 mm over wheels
- Up to 15 m/min
- 400-degree rotary module
- 200 mm lift
- Observation and rear cameras, lens cleaning
- Pressure monitoring
- Top hats and sleeves
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 53 kg |
|---|---|
| Dimensions | L 1.04 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.9 km/h |
| Environment | Underground sewer pipes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 53 kg |
|---|---|
| Dimensions | L 1.04 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.9 km/h |
| Environment | Underground sewer pipes |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MicroGator Air?
MicroGator Air is IBAK's pneumatic cutting robot for main sewers from DN 200 (relined) upwards, with a working range of up to 300 m, twice that of the electric MicroGator. It can run in a vehicle installation or as a mobile unit, and inspection systems can be operated on the same installation.
Who makes the MicroGator Air?
The MicroGator Air is made by IBAK, a robotics company based in Germany.
How much does the MicroGator Air cost?
IBAK has not publicly announced pricing for the MicroGator Air. You can enquire through RobotAIGeek for current pricing.
What is the MicroGator Air used for?
The MicroGator Air is designed for construction, material-handling, and inspection. It is used in facilities, government, and construction settings.
How much does the MicroGator Air weigh?
The MicroGator Air weighs 53 kg.
How fast is the MicroGator Air?
The MicroGator Air can move at speeds of up to 0.9 km/h.
