MicroGator

IBAK

Mobile-Robots Germany

GermanyReleased

★Not rated yet

Compare

Sources:

ibak.de

Industries:

Facilities Government Construction

Uses:

Construction Material-Handling Inspection

Price:

Not announced

Model:

IBAK MicroGator electric cutting robot

DESCRIPTION

MicroGator is a Mobile-Robots from IBAK. It is built for Construction, Material-Handling, Inspection. Key figures: 55 kg.

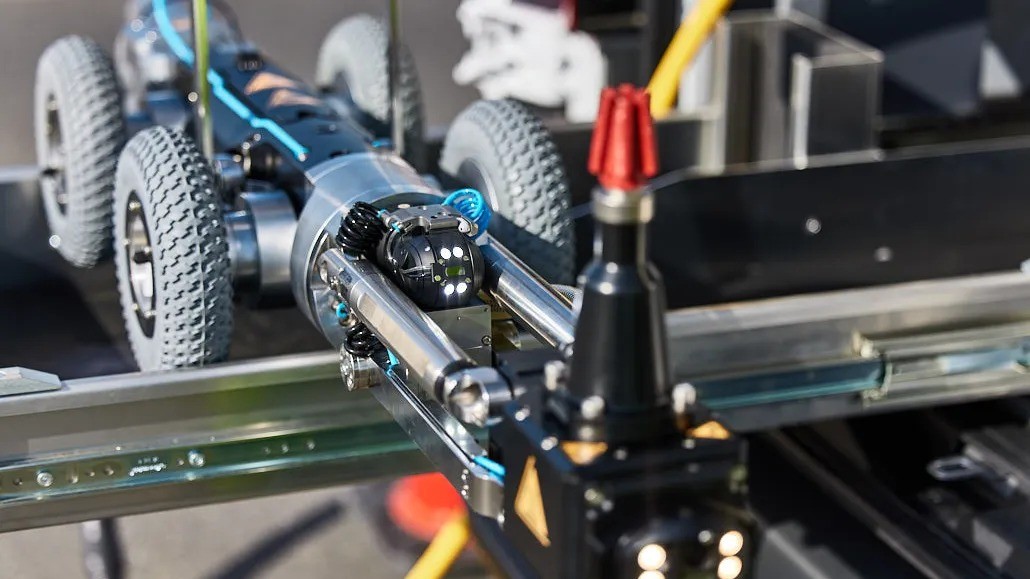

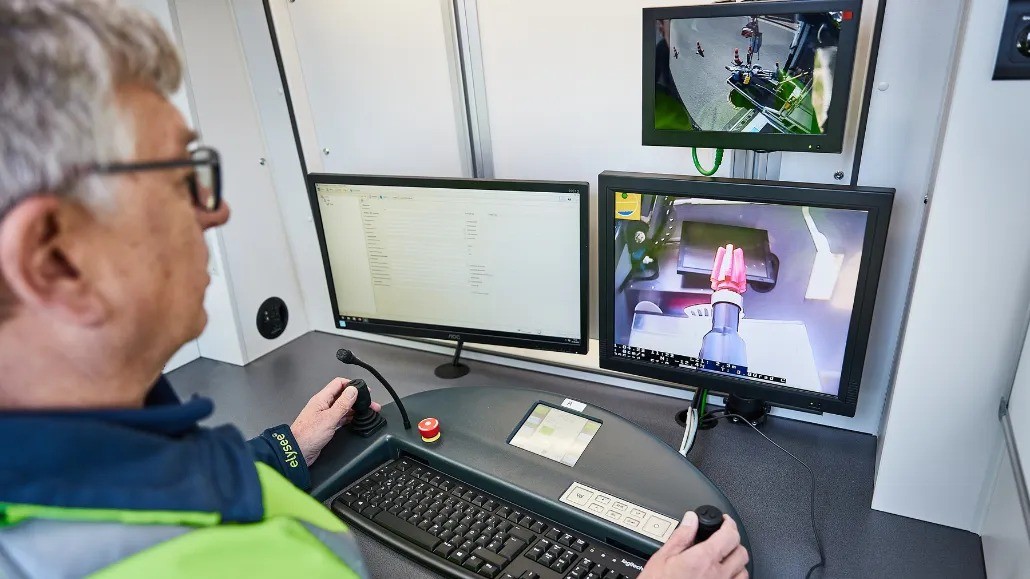

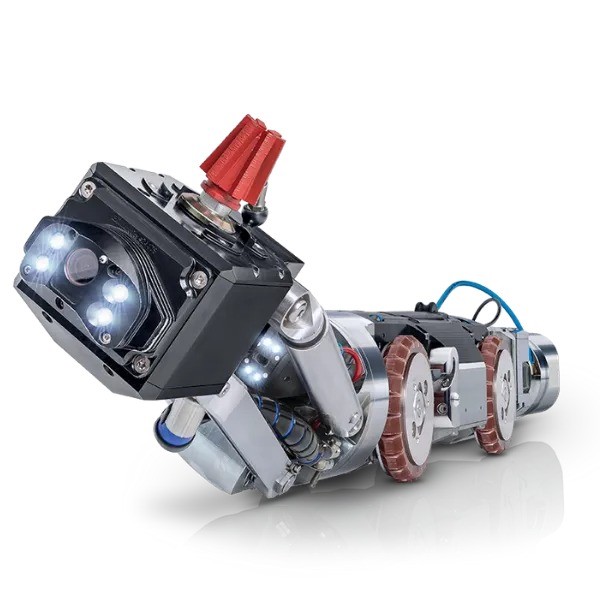

MicroGator is IBAK's electric cutting robot for trenchless repair of main sewers, used from DN 200 (relined) upwards with a working range of up to 150 m. The water-cooled cutter works with a CutterCam, front and rear observation cameras and lens cleaning, and the operator steers it from a vehicle control station with two joysticks. IBAK notes low noise, which allows night work. The robot is 104 cm long (72 cm rigid), weighs 55 kg and travels at up to 15 m/min, with a 400-degree rotary module and 200 mm of lift. Beyond cutting it can set top hats and sleeves, grout, and carry an ORION camera for inspection. IBAK's case reports describe the contractor GMB rehabilitating more than 45 km of sewer with it in the Netherlands and Kuchler reconnecting 500 house connections in Ulm.

FEATURES

Electric, water-cooled cutting system
From DN 200 (relined)
up to 150 m working range
Length 104 cm, 72 cm rigid
Body 150 mm, 160 mm over wheels
Up to 15 m/min
400-degree rotary module
200 mm lift
CutterCam, front and rear observation cameras, lens cleaning
Pressure monitoring
Top hats, sleeves and grouting
Inspection with ORION camera adapter
Traction via wheel sets and additional weights

TECHNICAL SPECIFICATIONS

Physical
Weight	55 kg
Dimensions	L 1.04 m
Mobility
Movement Type	Wheeled
Speed	0.9 km/h
Environment	Underground sewer pipes

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Physical
Weight	55 kg
Dimensions	L 1.04 m
Mobility
Movement Type	Wheeled
Speed	0.9 km/h
Environment	Underground sewer pipes

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the MicroGator?

MicroGator is IBAK's electric cutting robot for trenchless repair of main sewers, used from DN 200 (relined) upwards with a working range of up to 150 m.
