DESCRIPTION
MicroGator 150 is a Mobile-Robots from IBAK. It is built for Construction, Material-Handling, Inspection. Key figures: 32 kg.

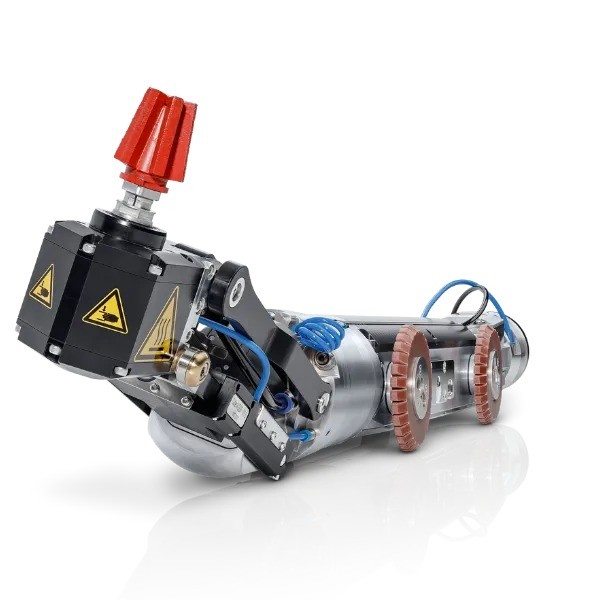

MicroGator 150 is the smaller electric cutting robot in IBAK's range, for main sewers from DN 150 (relined) upwards, with a working range of up to 150 m. It uses a change-head system with a water-cooled electric cutting motor and runs from the same vehicle system as the larger MicroGator. The robot is 84 cm long (60 cm rigid), weighs 32 kg and travels at up to 12 m/min, with a 450-degree rotary module and 160 mm of lift. IBAK lists ultra-high-pressure water jet cutting, top hat and sleeve setting and inspection among its functions, along with an observation camera, rear camera and lens cleaning.
FEATURES
- Change-head system with water-cooled electric cutting motor
- From DN 150 (relined)
- up to 150 m working range
- Length 84 cm, 60 cm rigid
- Body 112 mm, 130 mm over wheels
- Up to 12 m/min
- 450-degree rotary module
- 160 mm lift
- Observation and rear cameras, lens cleaning
- Pressure monitoring
- Ultra-high-pressure water jet cutting
- Top hats and sleeves
- Inspection
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 32 kg |
|---|---|
| Dimensions | L 840 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.72 km/h |
| Environment | Underground sewer pipes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 32 kg |
|---|---|
| Dimensions | L 840 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.72 km/h |
| Environment | Underground sewer pipes |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MicroGator 150?
MicroGator 150 is the smaller electric cutting robot in IBAK's range, for main sewers from DN 150 (relined) upwards, with a working range of up to 150 m. It uses a change-head system with a water-cooled electric cutting motor and runs from the same vehicle system as the larger MicroGator.
Who makes the MicroGator 150?
The MicroGator 150 is made by IBAK, a robotics company based in Germany.
How much does the MicroGator 150 cost?
IBAK has not publicly announced pricing for the MicroGator 150. You can enquire through RobotAIGeek for current pricing.
What is the MicroGator 150 used for?
The MicroGator 150 is designed for construction, material-handling, and inspection. It is used in facilities, government, and construction settings.
How much does the MicroGator 150 weigh?
The MicroGator 150 weighs 32 kg.
How fast is the MicroGator 150?
The MicroGator 150 can move at speeds of up to 0.72 km/h.
