DESCRIPTION
R-300 is an Industrial-Robot from Graal Tech. It is built for Material-Handling, Surveying, Inspection. Key figures: 180 kg, 720 min runtime, 60 kg payload.

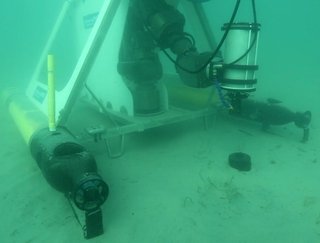

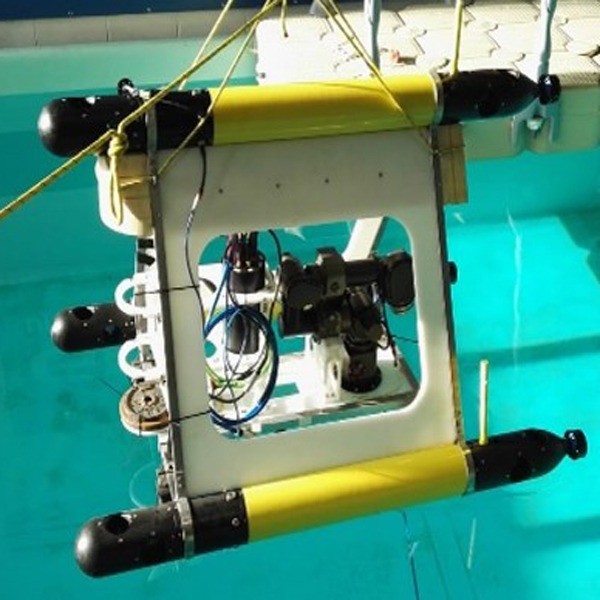

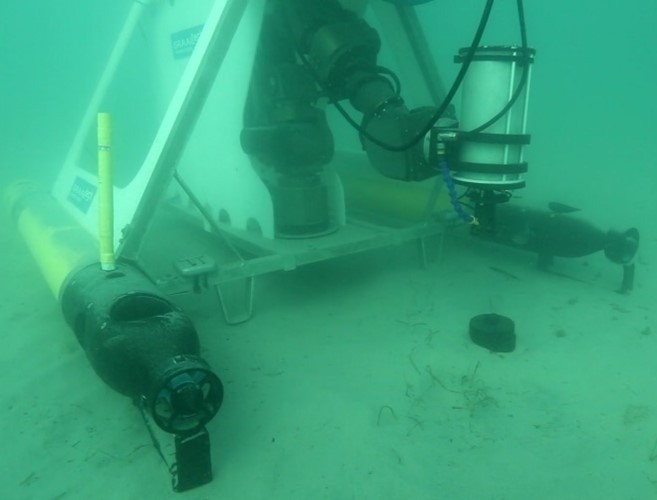

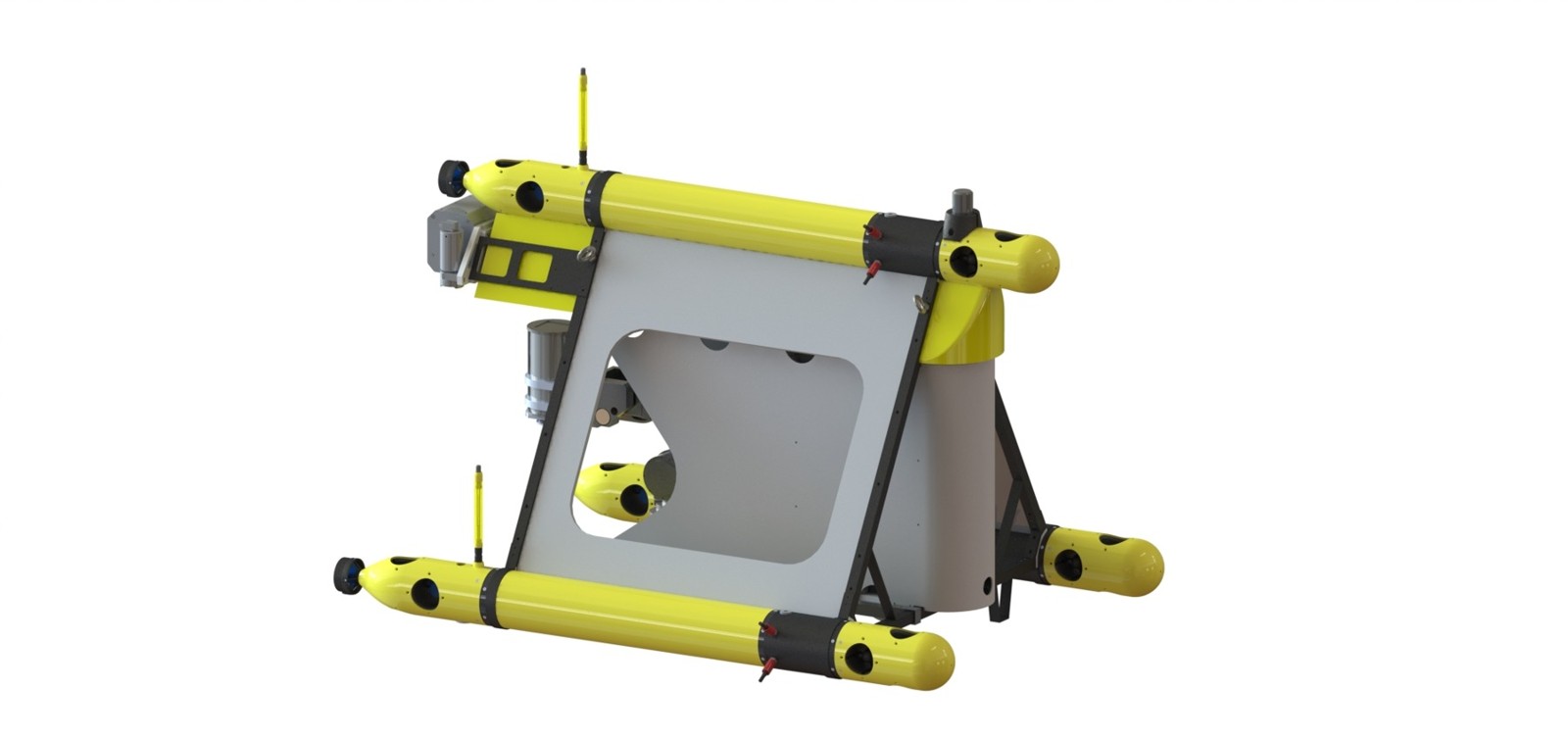

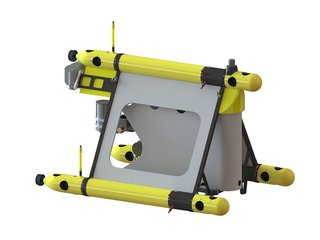

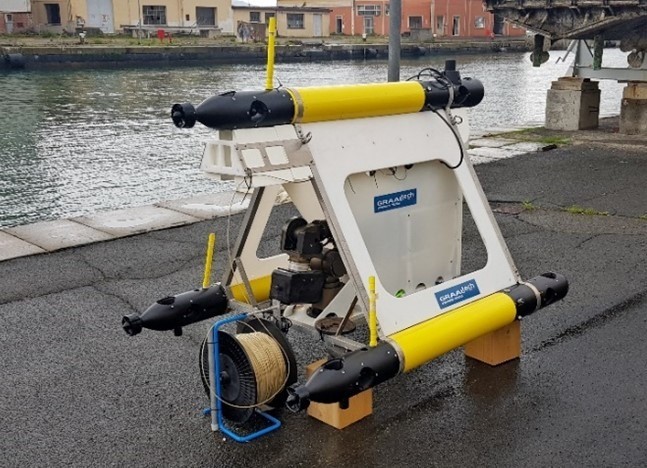

R-300 is the 'robust' vehicle of Graal Tech's X-300 family, designed to carry bulky and heavy payloads. It is made of three short X-300 AUVs attached to a triangular aluminium frame, with a connection module at the bow of each X-300 providing a shared power and data line so the three coordinate their motion; the result is an agile vehicle that can work as a standard AUV or, with its fibre-optic tether, as an ROV. The 2,044 mm, 180 kg vehicle carries 60 kg of payload, reaches 4 knots and runs 12 hours at maximum speed on an expandable 14.4 V, 3,200 Wh Li-ion battery. Its frame can host instruments such as sonars, cameras, DVL and IMU and a 7-axis manipulator like the UMA-1500 for rescue missions or maintenance on offshore installations, and extra batteries can be added for longer missions. It navigates with GPS, depth meter, 3D inclinometer and INS and communicates by Wi-Fi radio up to 1 km or optional optical fibre.
FEATURES
- Three short X-300 AUVs on a triangular aluminium frame
- Works as AUV or as ROV via fibre-optic tether
- 60 kg payload capacity
- can carry a UMA-1500 manipulator
- 2,044 mm, 180 kg
- Speed 4 knots
- 12 h at max speed
- Li-ion 14.4 V, 3,200 Wh (expandable)
- GPS, depth meter, 3D inclinometer, INS
- Wi-Fi radio (1 km) or optional optical fibre
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 180 kg |
|---|---|
| Dimensions | L 2.04 m |
| Payload | 60 kg |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 7.42 km/h |
| Environment | Underwater around offshore installations and in rescue operations |
| Power | |
| Battery Life | 720 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 180 kg |
|---|---|
| Dimensions | L 2.04 m |
| Payload | 60 kg |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 7.42 km/h |
| Environment | Underwater around offshore installations and in rescue operations |
| Power | |
| Battery Life | 720 min |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the R-300?
R-300 is the 'robust' vehicle of Graal Tech's X-300 family, designed to carry bulky and heavy payloads. It is made of three short X-300 AUVs attached to a triangular aluminium frame, with a connection module at the bow of each X-300 providing a shared power and data line so the three coordinate their motion; the result…
Who makes the R-300?
The R-300 is made by Graal Tech, a robotics company based in Italy.
How much does the R-300 cost?
Graal Tech has not publicly announced pricing for the R-300. You can enquire through RobotAIGeek for current pricing.
What is the R-300 used for?
The R-300 is designed for material-handling, surveying, and inspection. It is used in defence, energy, and research settings.
What is the payload capacity of the R-300?
The R-300 has a payload capacity of 60 kg.
How much does the R-300 weigh?
The R-300 weighs 180 kg.
How fast is the R-300?
The R-300 can move at speeds of up to 7.42 km/h.
What is the battery life of the R-300?
The R-300 runs for about 720 minutes on a charge.
